Asus M4A78 - Front Panel Audio Connector (10-1 Pin AAFP)

• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard high-denition audio capability.
• By default, this connector is set to
[HD Audio]. If you want to connect an AC97 front
panel audio module to this connector, set the item in the BIOS to [AC 97]. See section
“2.4.4 Onboard Device Conguration” for details.

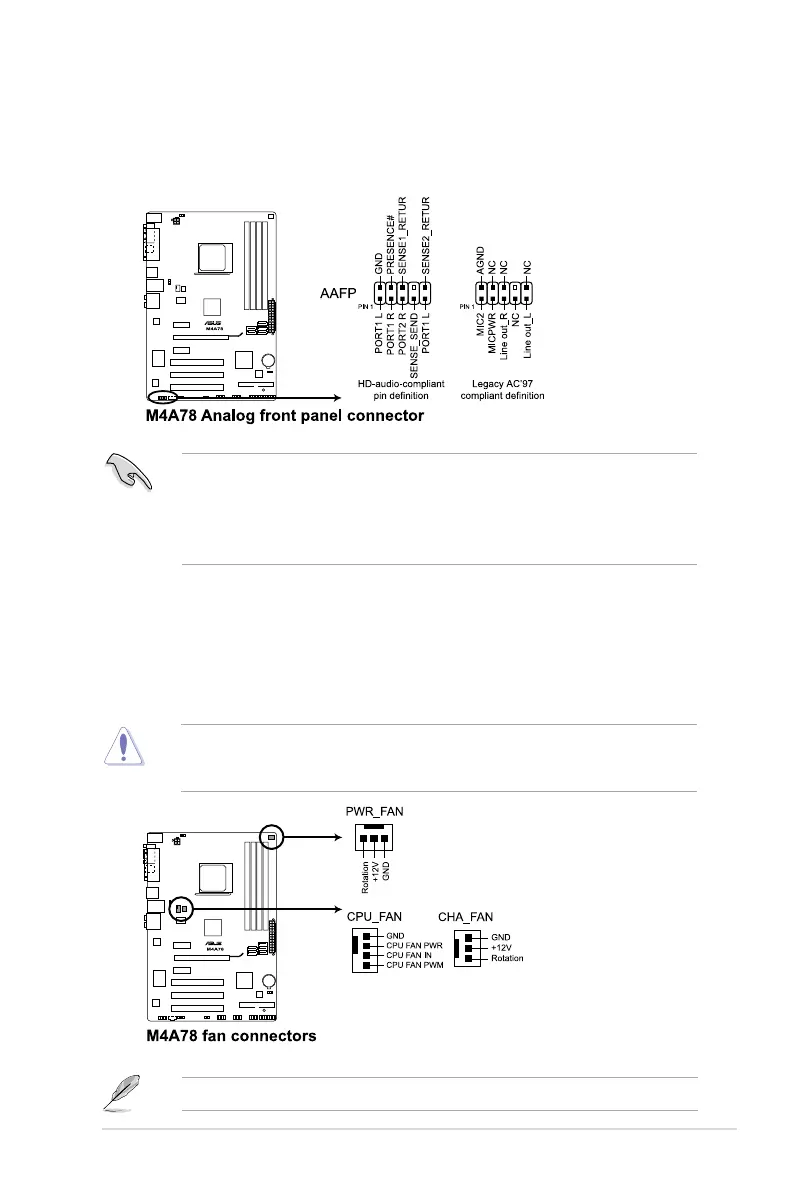

8. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Denition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
Only the CPU fan supports the ASUS Q-FAN feature.
9. CPU, Chassis, and PowerFan connectors (4 pin CPU_FAN, 3-pin CHA_FAN, and
3-pin PWR_FAN)
The fan connectors support cooling fans of 350mA~740mA (8.88W max.) or a total of
1A~2.22A (26.64W max.) at +12V. Connect the fan cables to the fan connectors on the
motherboard, ensuring that the black wire of each cable matches the ground pin of the
connector.
Chapter 1: Product introduction 1-29
