1.10 Connectors

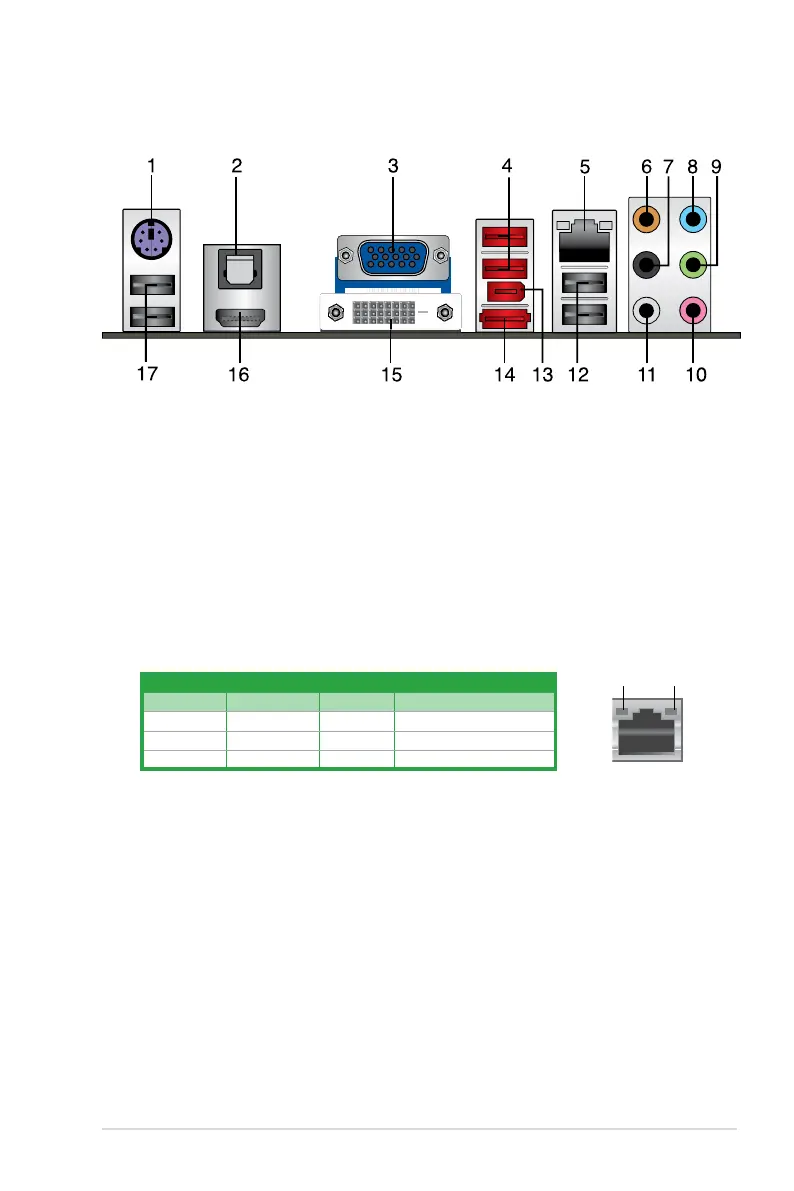

1.10.1 Rear panel ports
1. PS/2 Keyboard/Mouse Combo port (purple). This port is for a PS/2 keyboard or
mouse.
2. Optical S/PDIF_OUT port.
This port connects to an external audio output device via
an optical S/PDIF cable.
3. Video Graphics Adapter (VGA) port.
This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
4. USB 2.0 ports 3 and 4.
These two 4-pin Universal Serial Bus (USB) ports are for USB
2.0 devices.
5. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
6. Center/Subwoofer port (orange). This port connects to the center/subwoofer
speakers.
7. Rear Speaker Out port (black).
This port connects to the rear speakers in the
4, 6, and 8-channel audio congurations.
8. Line In port (light blue).
This port connects to the tape, CD, DVD player, or other
audio sources.
9. Line Out port (lime).
This port connects to a headphone or a speaker. In the 4, 6 and
8-channel congurations, the function of this port becomes Front Speaker Out.
10. Microphone port (pink).
This port connects to a microphone.
11. Side Speaker Out port (gray).
This port connects to the side speakers in the
8-channel audio conguration.
ASUS M4A785TD-V EVO 1-19
