Asus Maximus IX Code - Wi-Fi Antenna Installation

2-12
Chapter 2: Basic Installation
Chapter 2
2.1.10 Wi-Fi antenna installation
Installing the ASUS 2T2R dual band W-Fi antenna

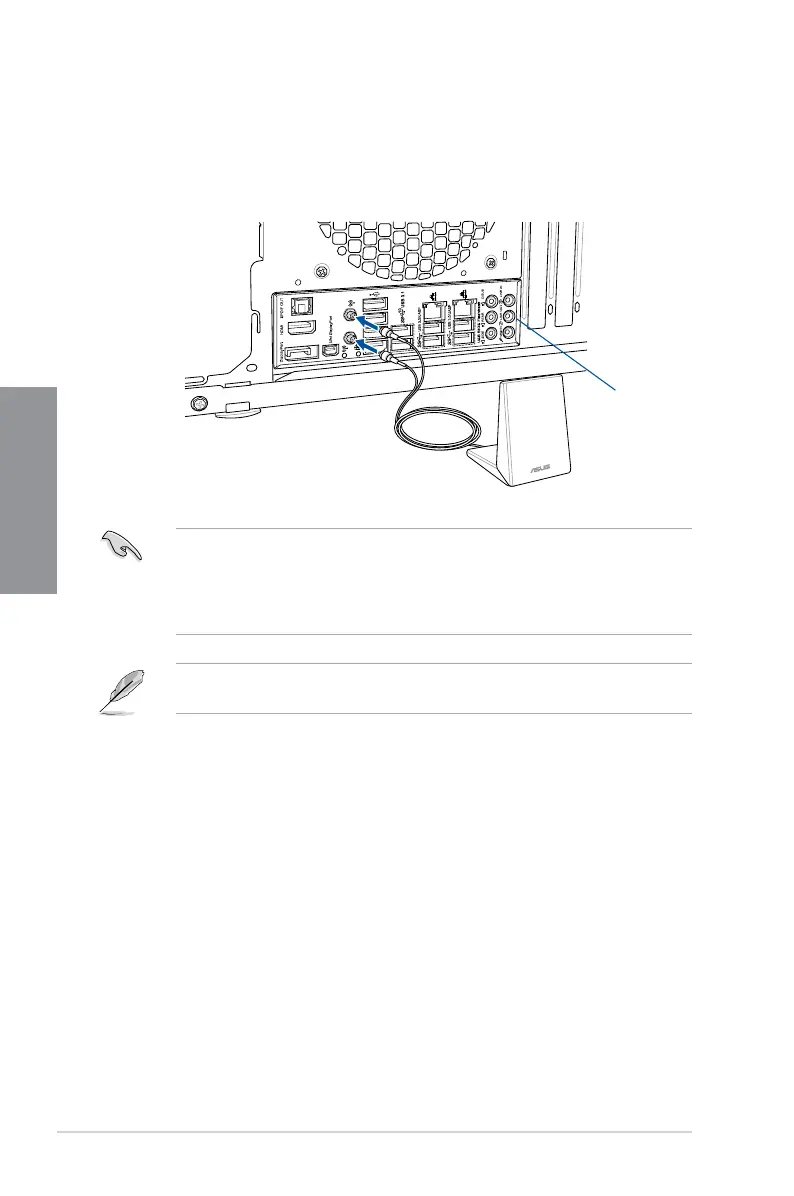

Connect the bundled ASUS 2T2R dual band Wi-Fi antenna connector to the Wi-Fi ports at
the back of the chassis.
IO Shield
• EnsurethattheASUS2T2RdualbandWi-FiantennaissecurelyinstalledtotheWi-Fi
ports.
• Ensurethattheantennaisatleast20cmawayfromallpersons.
The illustration above is for reference only. The I/O port layout may vary with models, but
the Wi-Fi antenna installation procedure is the same for all models.
