ASUS P3V4X User’s Manual 25
3. HARDWARE SETUP
CPU
3. H/W SETUP
1. Place the motherboard on the anti-static foam that was shipped with the mother-
board. Do not place the motherboard on a hard surface while installing the URM
as the black fastener sleeves must protrude through the bottom of the mother-
board.
2. Locate the Slot 1 connector on the motherboard.
3. Position the retention mechanism on either side of the Slot 1 connector.
4. Making sure that the top retainer pins are not pushed in, press down on the
retention brackets until the black fastener sleeves fit snugly against the board.
5. Push the four retainer pins completely down into the black fastener sleeves until
the head of each pin is securely seated.

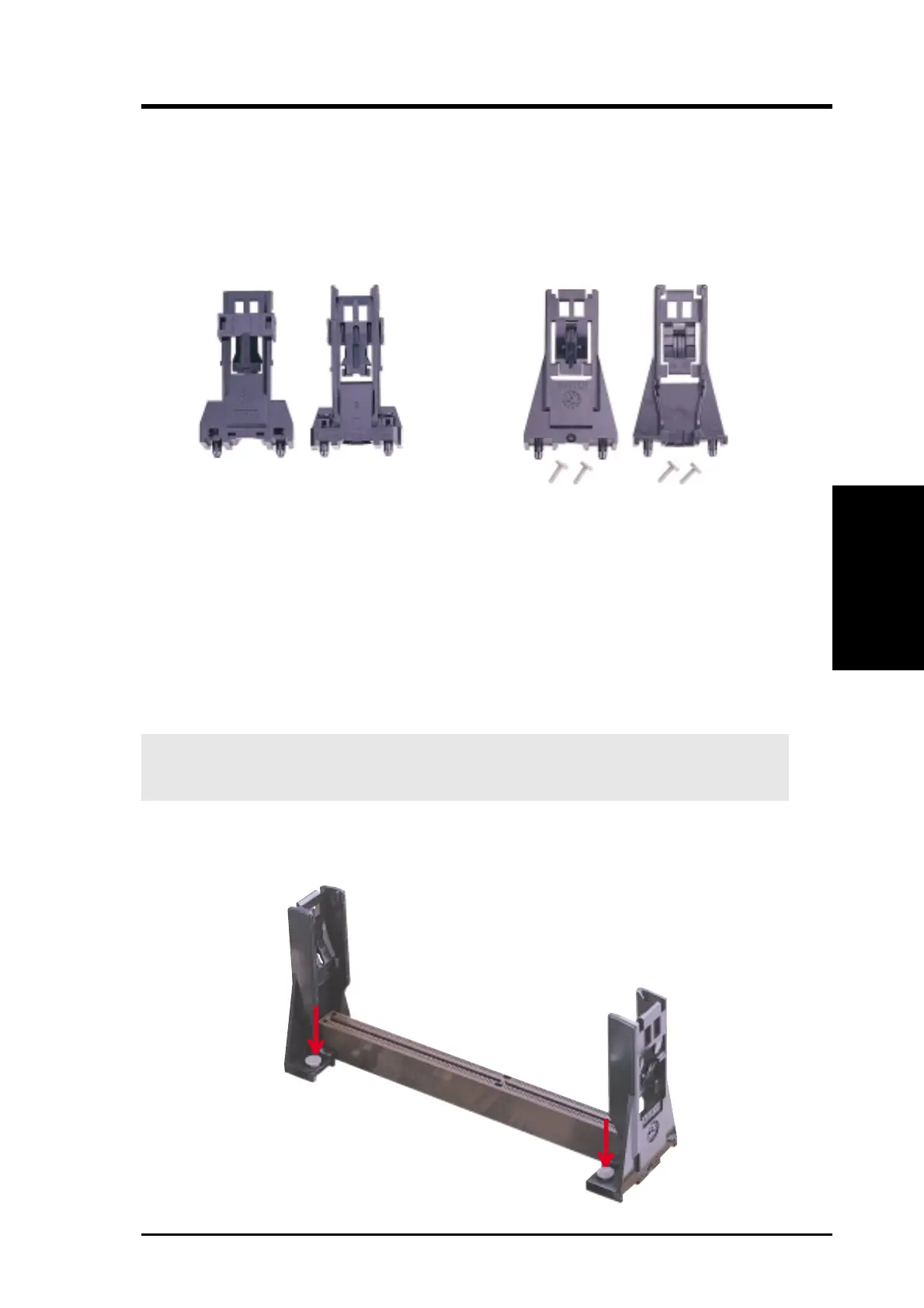

3.6.3 Installing the Universal Retention Mechanism
Your motherboard comes with a set of Universal Retention Mechanism (URM),
which supports Pentium III / II and Celeron processors. There are two types of URMs:
(A) With Integrated Retainer Pins and (B) With Separate Retainer Pins.
URM (A) URM (B)
Separate Retainer Pins
WARNING! Installing the URM while the retainer pins are pushed in will not
only cause the URM to be installed improperly but will also damage the URM.
Integrated Retainer Pins
To Next Page
