7. APPENDIX
7. APPENDIX

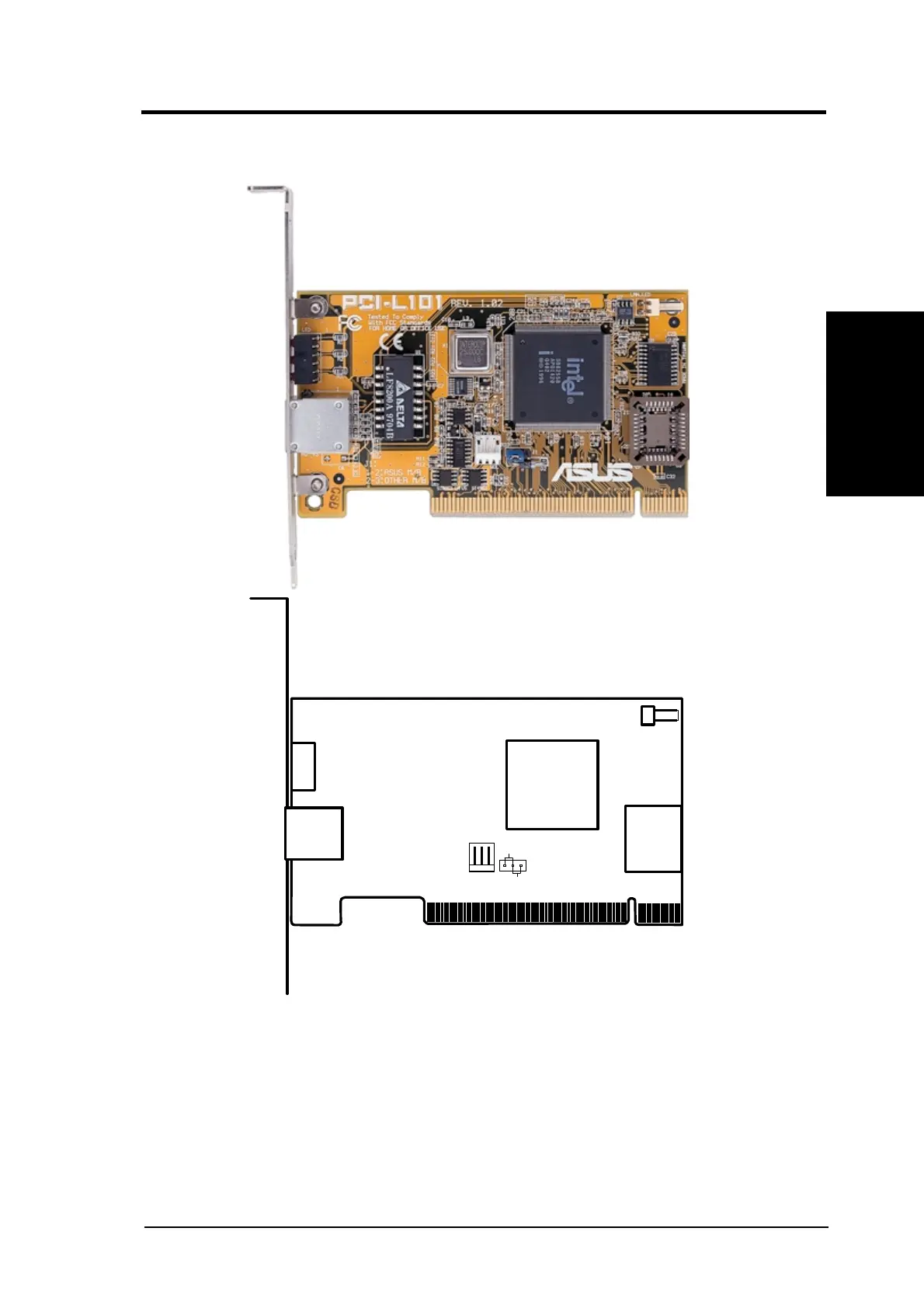

7.2 ASUS PCI-L101 Fast Ethernet Card
LAN Activity
Output Signal
RJ45
LEDs
Motherboard type
Wake on LAN
Output Signal
ASUS
Other
Intel
Chipset
If you are using the ASUS PCI-L101 on this motherboard, leave the jumper on its
default setting of “ASUS.” If you are using another brand of motherboard, set the
jumper to “Other.” Connect the Wake on LAN (WOL) output signal to the
motherboard’s WOL_CON to utilize the Wake-On-LAN feature of the motherboard.
Connect the LAN activity output signal (LAN_LED) to the system cabinet’s front
panel LAN_LED to display LAN data activity.
ASUS LAN Card
