ASUS P4P800 Deluxe motherboard user guide 2-29
8. ATX power connectors
(20-pin ATXPWR, 4-pin ATX12V)
These connectors connect to an ATX 12V power supply. The plugs
from the power supply are designed to fit these connectors in only one
orientation. Find the proper orientation and push down firmly until the
connectors completely fit.
In addition to the 20-pin ATXPWR1 connector, this motherboard
requires that you connect the 4-pin ATX +12V power plug to provide
sufficient power to the CPU.
P4P800
®

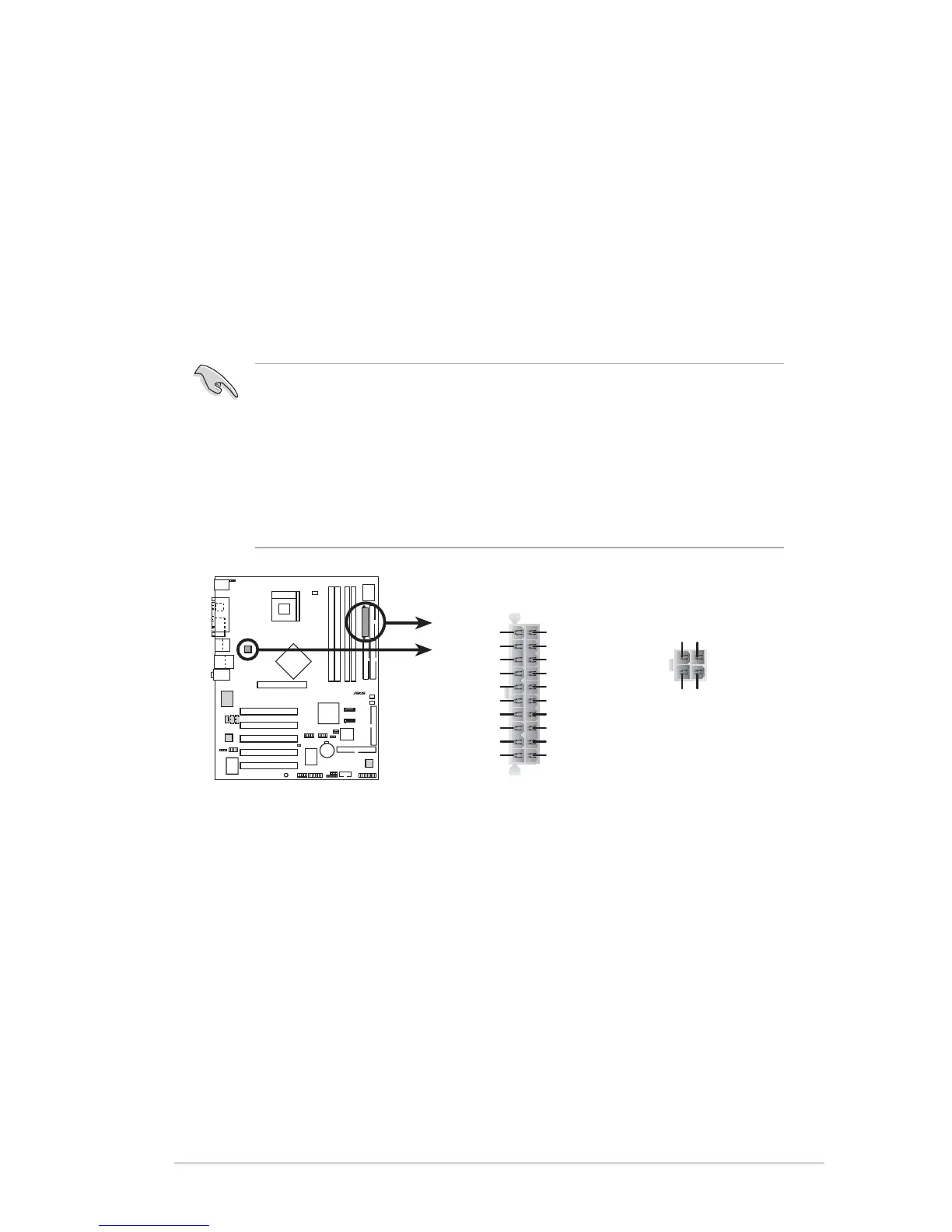

P4P800 ATX Power Connector
ATXPWR1 ATX12V1
+3.3VDC
-12.0VDC
COM
PS_ON#
COM
COM
COM
-5.0VDC
+5.0VDC
+5.0VDC
PWR_OK
+12.0VDC
+3.3VDC
+3.3VDC
COM
+5.0VDC
COM
+5.0VDC
COM
+5VSB
+12V DC GND
+12V DC GND
1. Do not forget to connect the 4-pin ATX +12V power plug.
Otherwise, the system does not boot up.
2. Make sure that your ATX 12V power supply can provide 8A on the
+12V lead and at least 1A on the +5-volt standby lead (+5VSB).
The minimum recommended wattage is 230W, or 300W for a fully
configured system. The system may become unstable or may not
boot up if the power is inadequate.

Asus P4P800 DELUXE Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR
Memory Slots	4
Max Memory	4 GB
Expansion Slots	1 x AGP 8X, 5 x PCI
Integrated LAN	Yes
LAN Speed	10/100/1000 Mbps
USB Ports	8 x USB 2.0
Front Side Bus	800/533/400 MHz
IDE	2 x ATA 100
Audio	ADI AD1985 6-channel audio CODEC
RAID Support	Yes
Storage Interfaces	2 x ATA100, 2 x SATA150
