ASUS P5B-VM DO 1-33

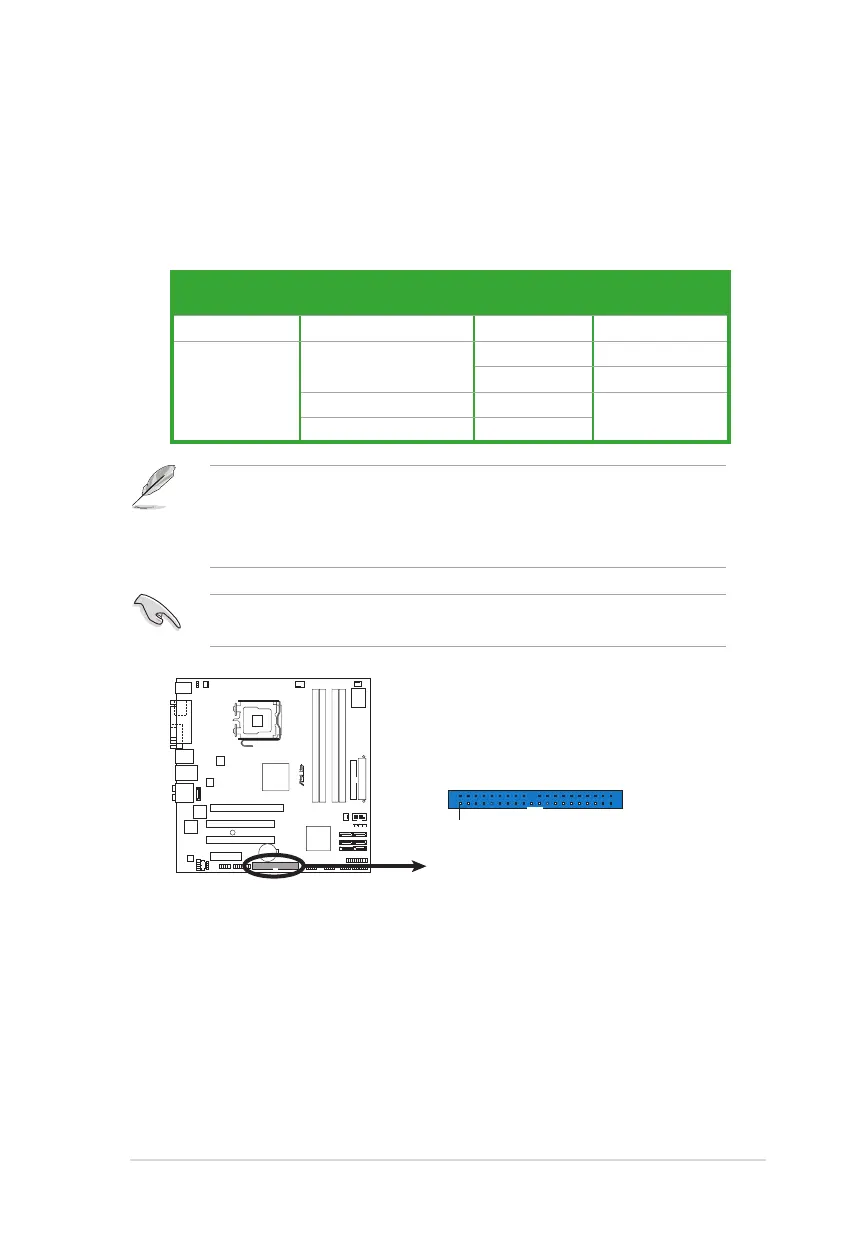

3. IDE connector (40-1 pin PRI_EIDE)
The onboard IDE connector is for the Ultra DMA 133/100/66 signal cable.
There are three connectors on each Ultra DMA 133/100/66 signal cable:
blue, black, and gray. Connect the blue connector to the motherboard’s IDE
connector, then select one of the following modes to congure your device.
• Pin 20 on the IDE connector is removed to match the covered hole on the
Ultra DMA cable connector. This prevents incorrect insertion when you
connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 133/100/66 IDE devices.
If any device jumper is set as “Cable-Select,” make sure all other device
jumpers have the same setting.
Drive jumper setting Mode of
device(s)
Cable connector
Single device Cable-Select or Master - Black
Two devices
Cable-Select
Master
Black
Slave Gray
Master Master
Black or gray
Slave Slave
R
NOTE: Orient the red markings
(usually zigzag) on the ID
ribbon cable to PIN 1.
PRI_EIDE
PIN1
P5B-VM DO
P5B-VM DO IDE connector

Asus P5B-VM DO Specifications

General

Form Factor	Micro ATX
Socket	LGA 775
Memory Type	DDR2
Memory Slots	4
Max Memory	8 GB
PCI Express x16	1
PCI Express x1	1
PCI Slots	2
IDE Ports	1
Video Outputs	VGA
Audio Chipset	Realtek ALC883
LAN Chipset	Marvell 88E8056
LAN Speed	10/100/1000 Mbps
USB Ports	8
Audio Channels	8
Chipset	Intel G965
