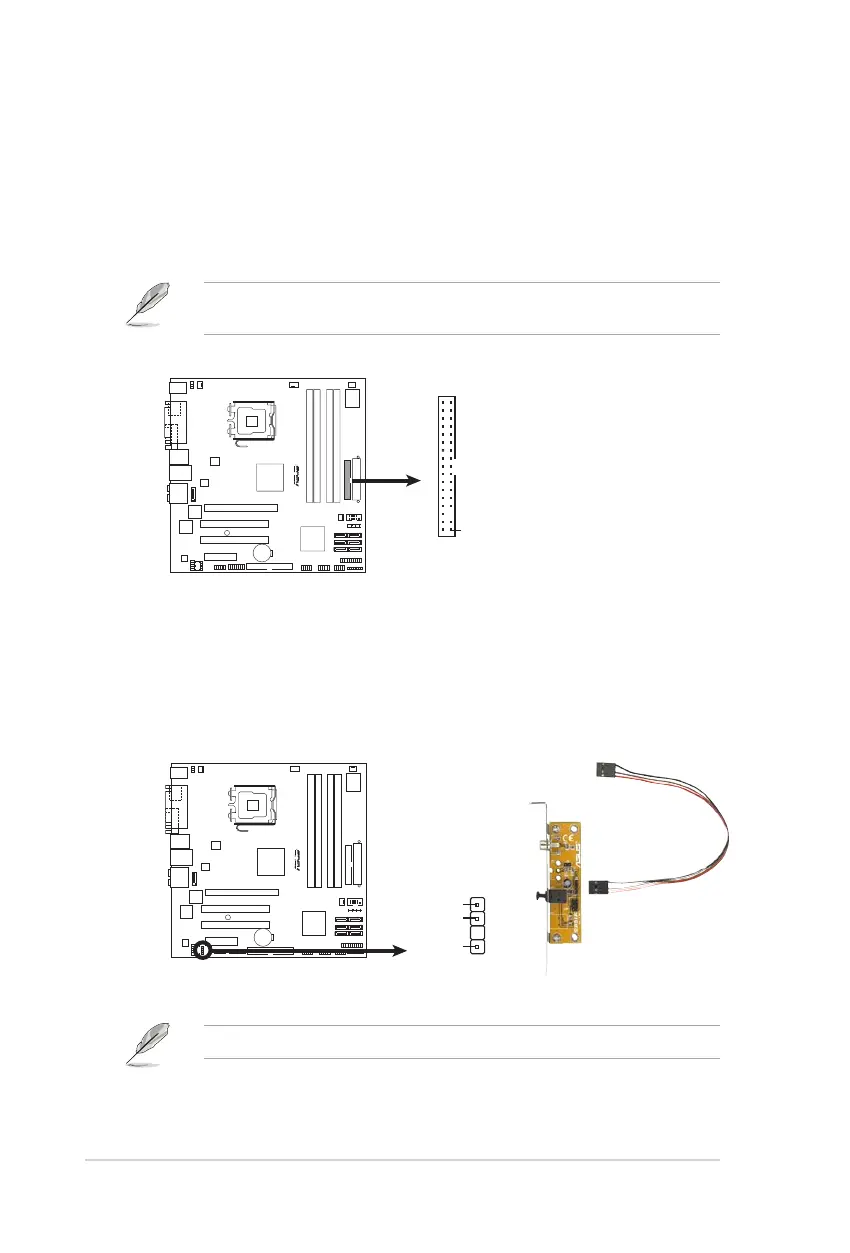

1-32 Chapter 1: Product introduction

1.10.2 Internal connectors

1. Floppy disk drive connector (34-1 pin FLOPPY)

This connector is for the provided oppy disk drive (FDD) signal cable. Insert

one end of the cable to this connector, then connect the other end to the

signal connector at the back of the oppy disk drive.

Pin 5 on the connector is removed to prevent incorrect cable connection when

using a FDD cable with a covered Pin 5.

P5B-VM DO

Floppy Disk Drive Connector

PIN 1

NOTE:

Orient the red markings on

the floppy ribbon cable to PIN 1.

FLOPPY

P5B-VM DO

2. Digital Audio connector (4-1 pin SPDIF_OUT)

This connector is for the S/PDIF audio module to allow digital sound output.

Connect one end of the S/PDIF audio cable to this connector and the other

end to the S/PDIF module.

The S/PDIF out module is purchased separately.

SPDIF_OUT

+5V

Spdif out

GND

P5B-VM DO

P5B-VM DO SPDIF OUT connector
