Asus P5RD2-VM User Manual

ASUS P5RD2-VM 1-11

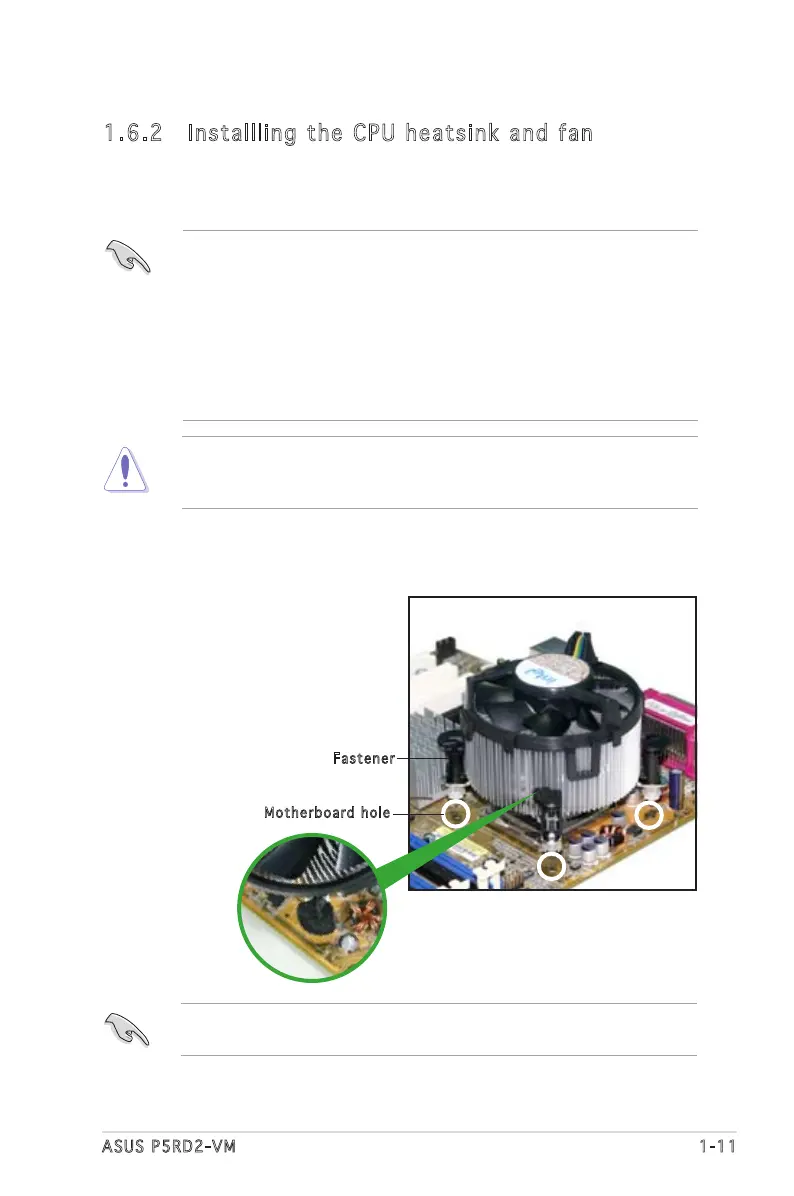

1.6.2 Installling the CPU heatsink and fan
The Intel
®
Pentium
®
4 LGA775 processor requires a specially designed
heatsink and fan assembly to ensure optimum thermal condition and
performance.
• Install the motherboard to the chassis before you install the CPU fan
and heatsink assembly
• When you buy a boxed Intel
®
Pentium
®
4 processor, the package
includes the CPU fan and heatsink assembly. If you buy a
CPU separately, make sure that you use only Intel
®
-certified
multi-directional heatsink and fan.
• Your Intel
®
Pentium
®
4 LGA775 heatsink and fan assembly comes in
a push-pin design and requires no tool to install.
If you purchased a separate CPU heatsink and fan assembly, make sure
that a Thermal Interface Material is properly applied to the CPU heatsink
or CPU before you install the heatsink and fan assembly.
To install the CPU heatsink and fan:
1. Place the heatsink on top of the
installed CPU, making sure that
the four fasteners match the
holes on the motherboard.
Fas tener
Mot herboard hole
Make sure each fastener is oriented as shown, with the narrow groove
directed outward.

Asus P5RD2-VM Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Dimensions (WxDxH)	244 x 218 mm
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	ASUS PC Probe II ASUS LiveUpdate Utility Anti-virus software
Networking features	10/100/1000 Mbit/s LAN
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	218 mm
Width	244 mm
