Asus P5RD2-VM User Manual

ASUS P5RD2-VM 1-15
1.7 System memory
1.7.1 Overview
The motherboard comes with two 240-pin Double Data Rate 2 (DDR2) Dual
Inline Memory Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has
a 240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are
notched differently to prevent installation on a DDR DIMM socket.

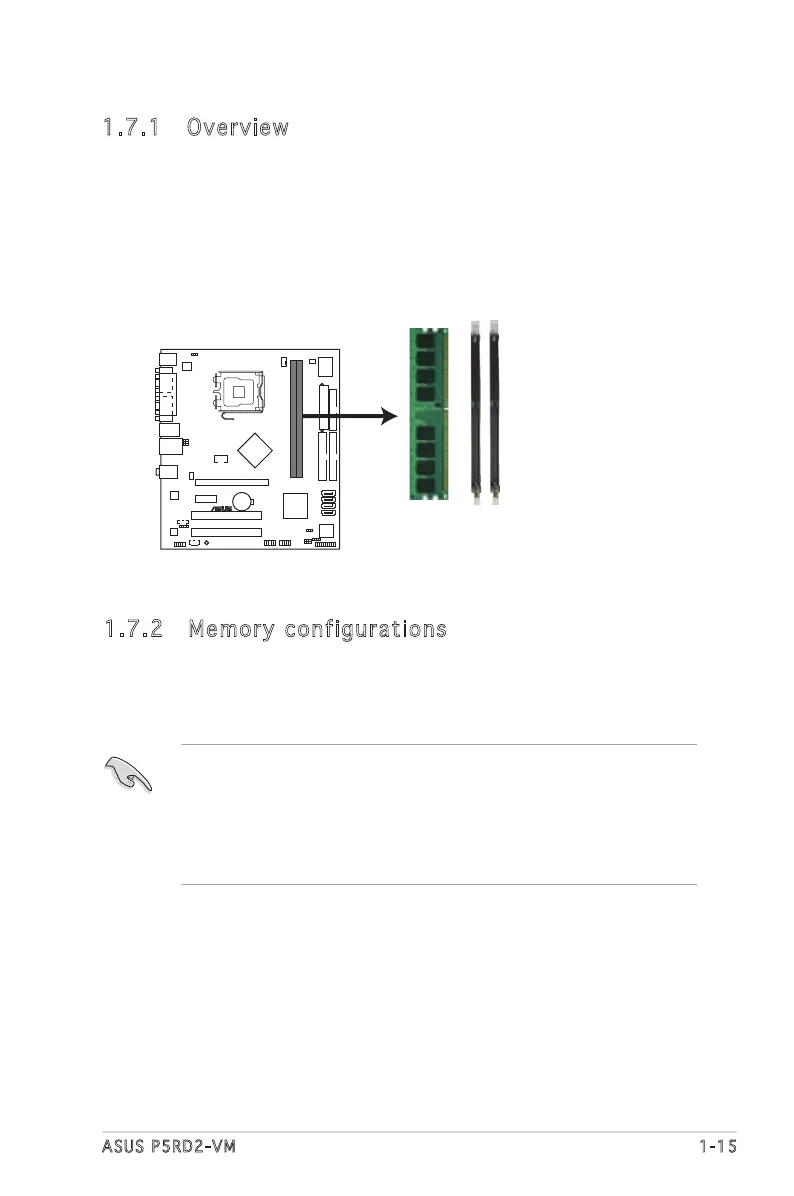

The following figure illustrates the location of the sockets:
P5RD2-VM 240-pin DDR DIMM Sockets
DIMM2
DIMM1
®
P5RD2-VM
1.7.2 Memory configurations
You may install 256 MB, 512 MB, and 1 GB unbuffered non-ECC DDR2 DIMMs
into the DIMM sockets using the memory configurations in this section.
• Always install DIMMs with the same CAS latency. For optimum
compatibility, it is recommended that you obtain memory modules
from the same vendor. Refer to the DDR2 Qualified Vendors List on
the next page for details.
• This motherboard does not support memory modules made up of
128 Mb chips or double sided x16 memory modules.

Asus P5RD2-VM Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Dimensions (WxDxH)	244 x 218 mm
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	ASUS PC Probe II ASUS LiveUpdate Utility Anti-virus software
Networking features	10/100/1000 Mbit/s LAN
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	218 mm
Width	244 mm
