Asus P5RD2-VM User Manual

1-32 Chapter 1: Product introduction

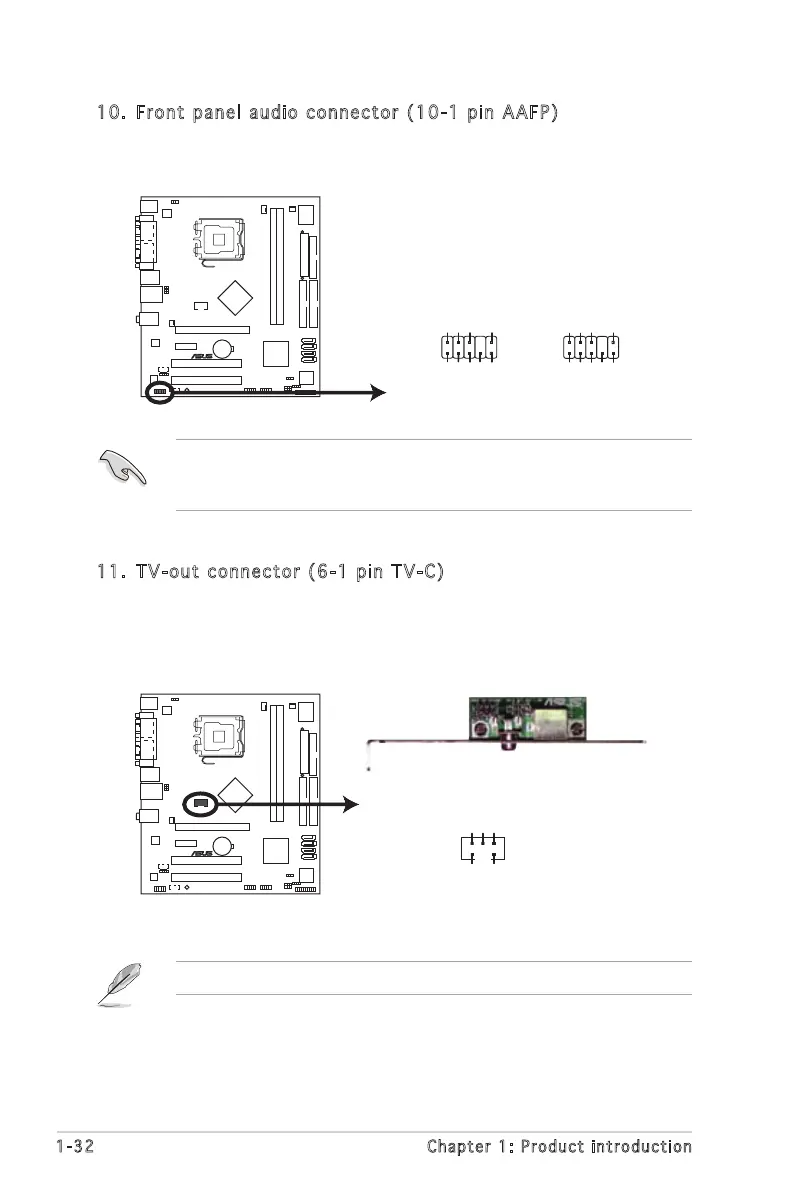

10. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module
that supports either HD Audio or legacy ACʼ97 audio standard.
It is recommended that you connect a high-definition front panel audio
module to this connector to avail of the motherboardʼs high-definition
audio capability.
P5RD2-VM Analog Front Panel Connector
AAFP
Legacy ACʼ97
compliant definition
Azalia
compliant definition
SENSE2_RETUR
PORT1 L
PORT2 R
PORT2 L
SENSE1_RETUR
SENSE_SEND
PORT1 R
PRESENCE#
GND
BLINE_OUT_L
MIC2
Line out_R
Line out_L
BLINE_OUT_R
NC
MICPWR
+5VA
AGND
®
P5RD2-VM
11. TV-out connector (6-1 pin TV-C)
This 6-1 pin connector is for the TV-out port module that allows you to
connect a television to your system. Connect one end of the TV-out
cable to this connector and the other end to the TV out module.
®
P5RD2-VM
P5RD2-VM TV Out Connector
TV-C
CVBS out
S-video Y out
S-video C out
GND GND
1
The TV-out module is purchased separately.

Asus P5RD2-VM Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Dimensions (WxDxH)	244 x 218 mm
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	ASUS PC Probe II ASUS LiveUpdate Utility Anti-virus software
Networking features	10/100/1000 Mbit/s LAN
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	218 mm
Width	244 mm
