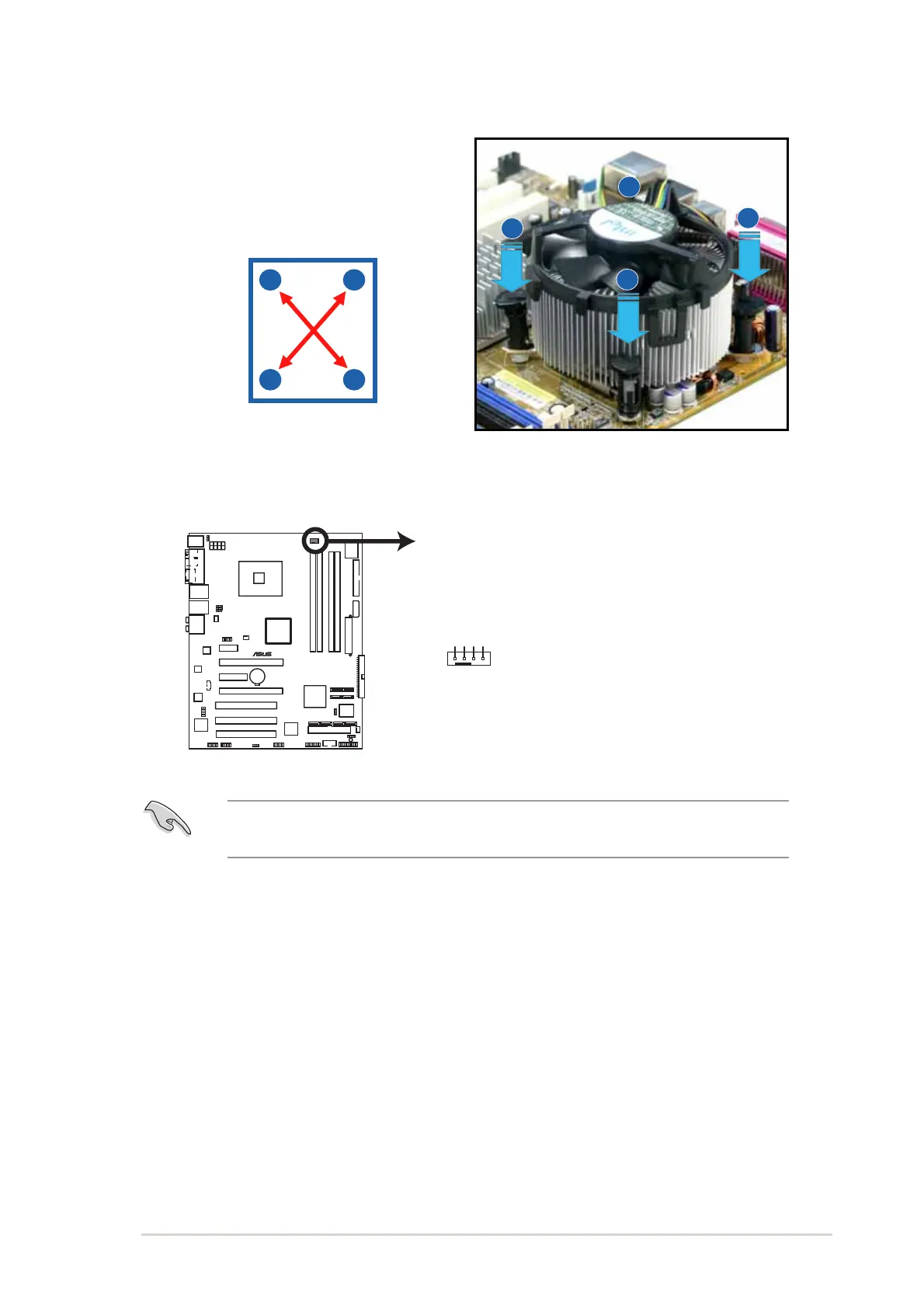

3. Connect the CPU fan cable to the connector on the motherboard
labeled CPU_FAN.
2. Push down two fasteners at a
time in a diagonal sequence to
secure the heatsink and fan
assembly in place.
B
B
A
A
A
A
B
B
Do not forget to connect the CPU fan connector! Hardware monitoring
errors can occur if you fail to plug this connector.
P5WD2-E PREMIUM CPU Fan Connect
or
CPU_FAN
GND CPU FAN PWR CPU FAN IN CPU FAN PWM
P5WD2-E
®
