Asus P8H61-M LX3 PLUS R2.0 User Manual

1-7Chapter 1: Product introduction

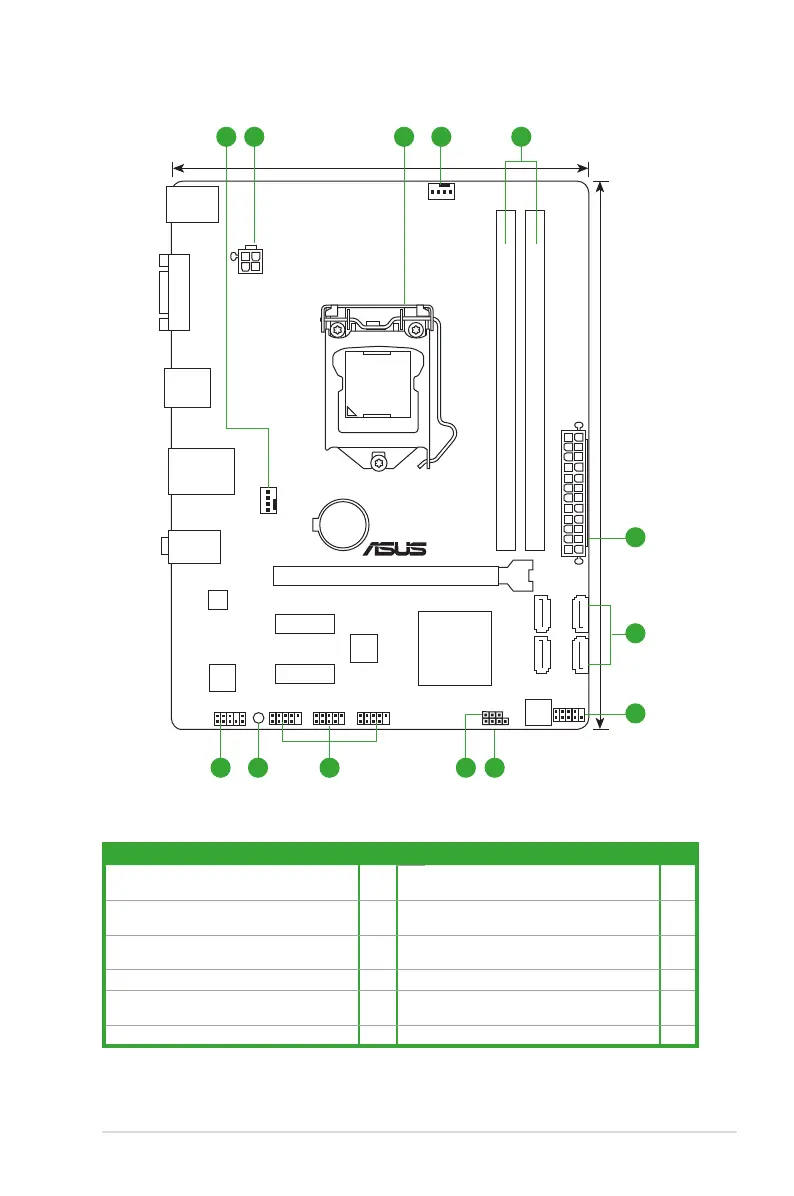

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU and chassis fan connectors
(4-pin CPU_FAN, 4-pin CHA_FAN)
1-25 7. Speaker connector (4-pin SPEAKER) 1-26
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-23 8. Clear RTC RAM (3-pin CLRTC) 1-20
3. Intel
®
LGA1155 CPU socket 1-8 9. USB connectors (10-1 pin USB56, USB78,
USB910)
1-25
4. DDR3 DIMM slots 1-13 10. Standby power LED (SB_PWR) 1-5
5. Intel
®
H61 Serial ATA 3.0Gb/s connectors
(7-pin SATA3G_1/2/3/4)
1-24 11. Front panel audio connector (10-1 pin AAFP) 1-22
6. System panel connector (10-1 pin F_PANEL) 1-26
P8H61-M LX3 R2.0 Series
PCIEX16
PCIEX1_1
PCIEX1_2
F_PANEL
SPEAKER
CLRTC
USB78 USB910USB56
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
Lithium Cell
CMOS Power
Super
I/O
VIA
VT1708S
RTL
8111F
64Mb
BIOS
SB_PWR
22.6cm(8.9in)
LGA1155
Intel
®
H61
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_1 SATA3G_2
SATA3G_3 SATA3G_4
AUDIO
KBMS
LAN1_USB12
USB34
17.3cm(6.8in)
VGA
321 41
6
2
7891011
5

Asus P8H61-M LX3 PLUS R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
DVI-D ports quantity	00
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	10/100/1000 Mb/s
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	172 mm
Width	226 mm
