Asus P8H61-M LX3 PLUS R2.0 User Manual

2-14 ASUS P8H61-M LX3 R2.0 Series
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.

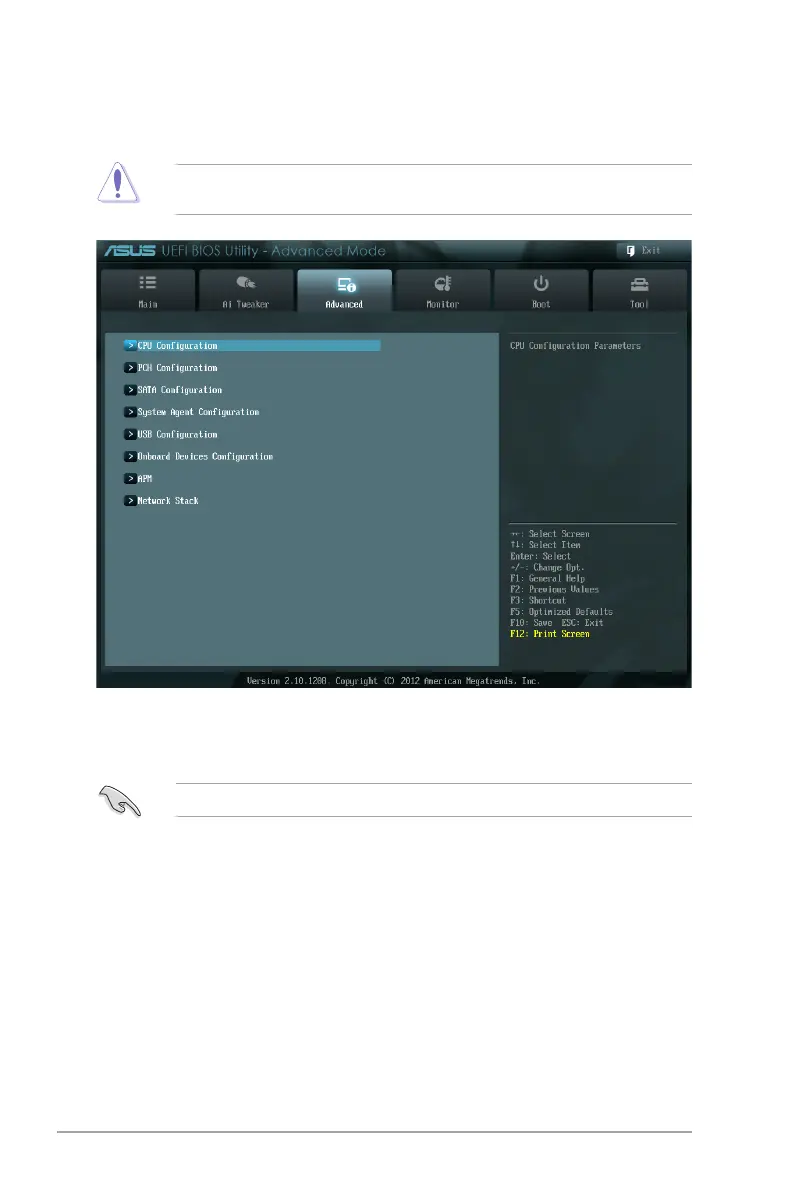

2.5 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
2.5.1 CPU Conguration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
The items shown in submenu may be different due to the CPU you installed.
Intel Adaptive Thermal Monitor [Enabled]
[Enabled] Enables the overheated CPU to throttle its clock speed to cool down.
[Disabled] Disables the CPU thermal monitor function.
Active Processor Cores [All]
Allows you to choose the number of CPU cores to activate in each processor package.
Conguration options: [All] [1] [2] [3]
Limit CPUID Maximum [Disabled]
[Enabled] Allows legacy operating systems to boot even without support for CPUs
with extended CPUID functions.
[Disabled] Disables this function.

Asus P8H61-M LX3 PLUS R2.0 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133, 2200 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
DVI-D ports quantity	00
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	10/100/1000 Mb/s
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	172 mm
Width	226 mm
