Asus P8H61-M PLUS V3 User Manual

ASUS P8H61-M PLUS V31-2
P8H61-M PLUS V3
1.2 Motherboard overview
Before you install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Ensure that you unplug the power cord before installing or removing the motherboard.
Failure to do so can cause you physical injury and damage motherboard components.
1.2.1 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.

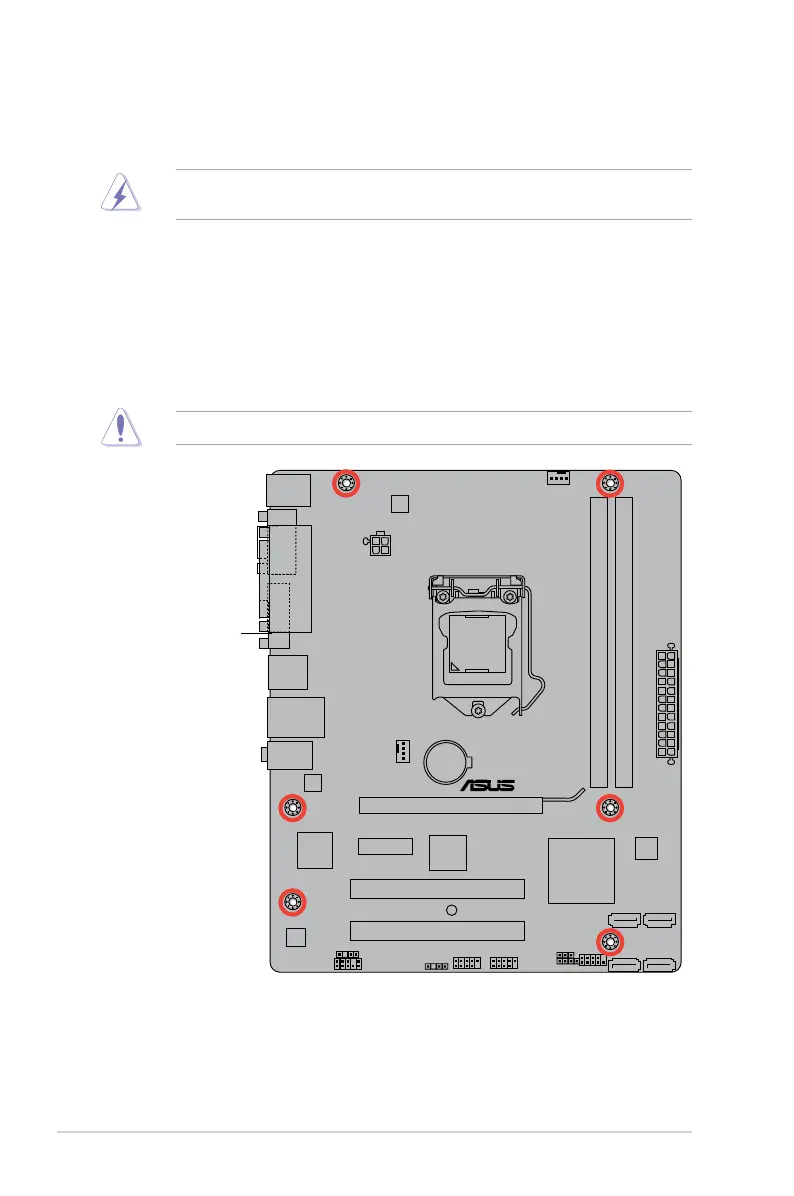

1.2.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis

Asus P8H61-M PLUS V3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Maximum Memory	16 GB
Memory Type	DDR3
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Max. LAN Speed	10/100/1000 Mbps
Video Outputs	1 x D-Sub, 1 x DVI-D
Expansion Slots	2 x PCIe 2.0 x1
LAN	Realtek 8111F
Power Connector	1 x 24-pin EATX Power, 1 x 4-pin ATX 12V Power
