1-9Chapter 1: Product introduction
P8H61-M PLUS V3
P8H61-M PLUS V3 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_B1
1.4 System memory
1.4.1 Overview
The motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.

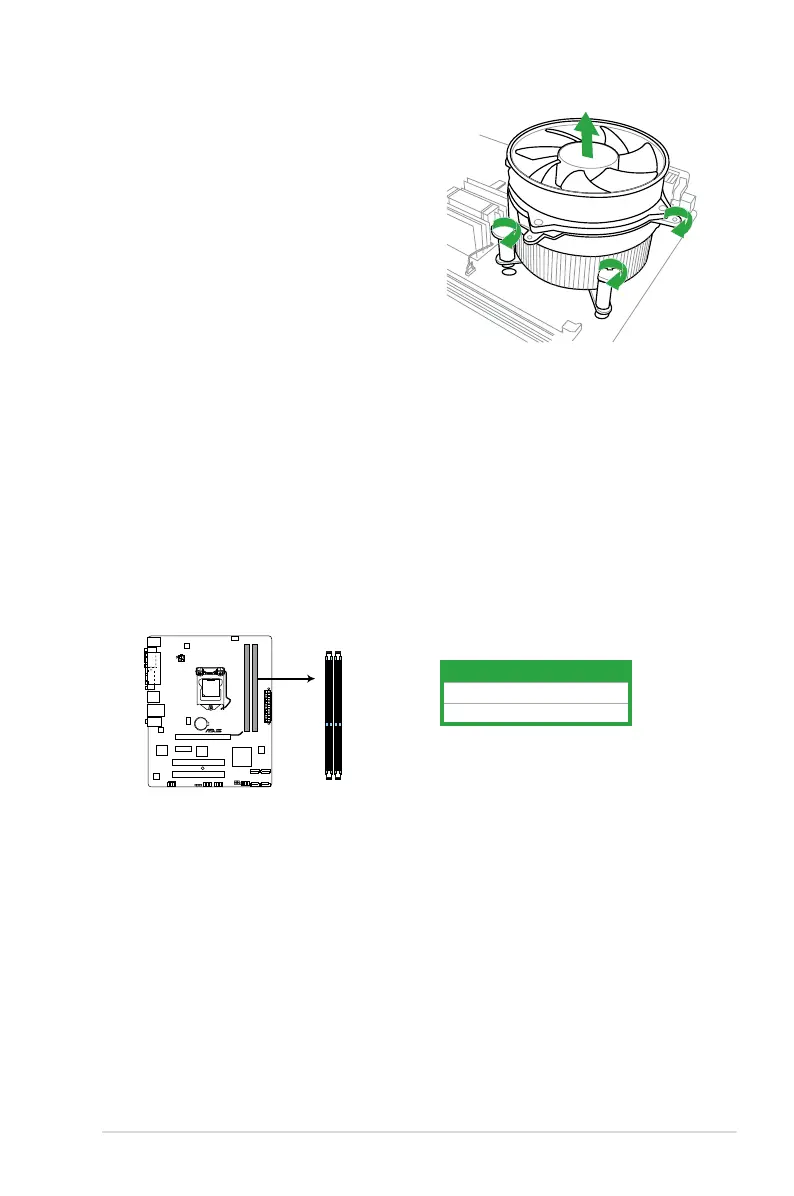

The gure illustrates the location of the DDR3 DIMM sockets:
4. Carefully remove the heatsink and fan
assembly from the motherboard.
5. Rotate each fastener clockwise to ensure
correct orientation when reinstalling.
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1

Asus P8H61-M PLUS V3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Maximum Memory	16 GB
Memory Type	DDR3
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Max. LAN Speed	10/100/1000 Mbps
Video Outputs	1 x D-Sub, 1 x DVI-D
Expansion Slots	2 x PCIe 2.0 x1
LAN	Realtek 8111F
Power Connector	1 x 24-pin EATX Power, 1 x 4-pin ATX 12V Power
