Asus P8H61-M PLUS V3 User Manual

2-8 ASUS P8H61-M PLUS V3
Advanced Mode

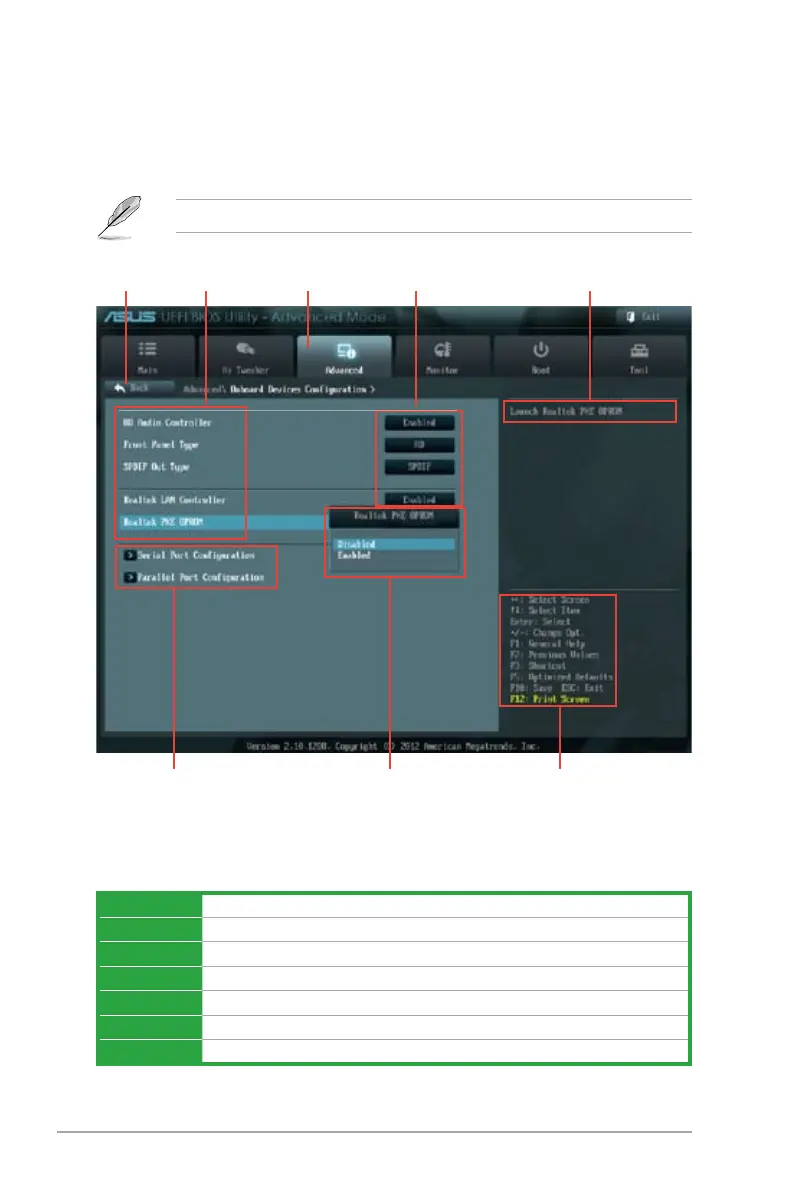

The Advanced Mode provides advanced options for experienced end-users to congure
the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the EZ Mode, click Exit, then select ASUS EZ Mode.
Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system conguration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Monitor For displaying the system temperature, power status, and changing the fan settings
Boot For changing the system boot conguration
Tool For conguring options for special functions
Exit For selecting the exit options and loading default settings
Navigation keys
General help
Menu bar
Submenu item
Conguration elds
Menu items
Pop-up window
Back button

Asus P8H61-M PLUS V3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Maximum Memory	16 GB
Memory Type	DDR3
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Max. LAN Speed	10/100/1000 Mbps
Video Outputs	1 x D-Sub, 1 x DVI-D
Expansion Slots	2 x PCIe 2.0 x1
LAN	Realtek 8111F
Power Connector	1 x 24-pin EATX Power, 1 x 4-pin ATX 12V Power
