Asus P8H61-M PLUS V3 User Manual

1-21Chapter 1: Product introduction

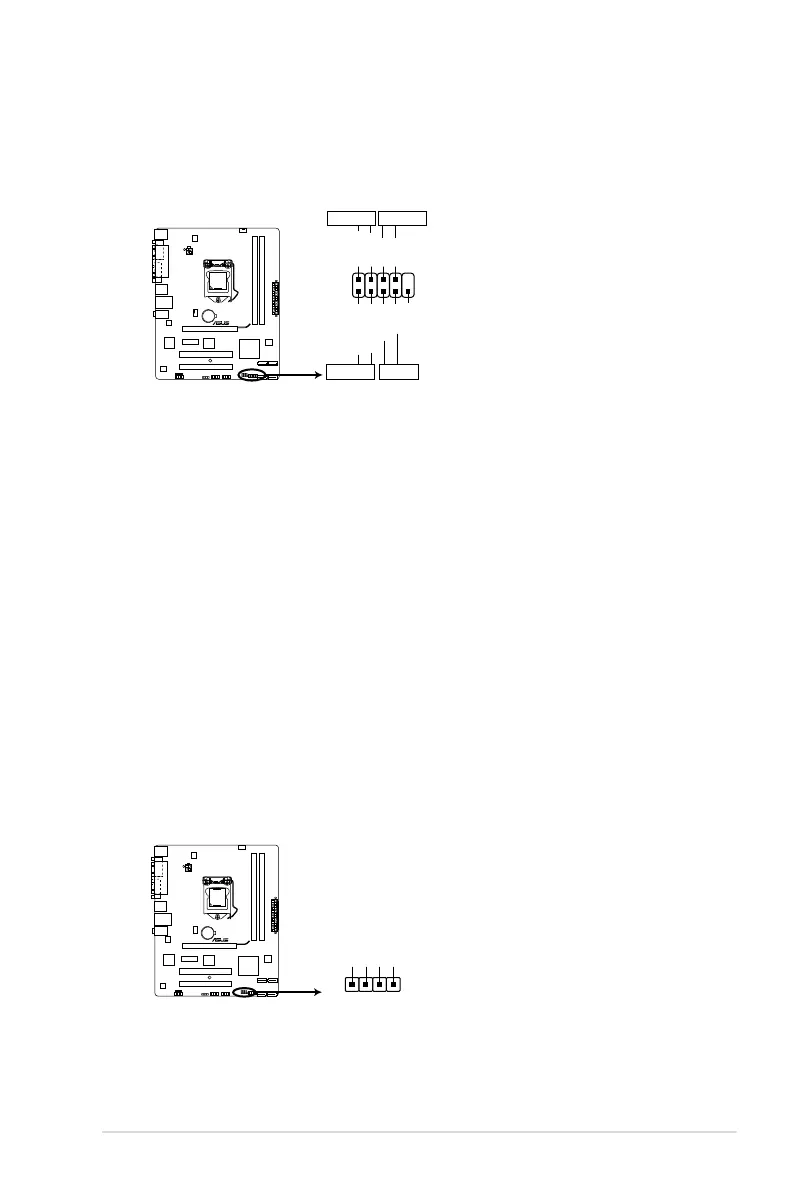

8. System panel connector (10-1 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin +HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• ATX power button/soft-off button (2-pin PWRBTN)
This 2-pin connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
P8H61-M PLUS V3
P8H61-M PLUS V3 System panel connector
PIN 1
PWR BTN
PLED+ PLED- PWR GND
HD_LED+
HD_LED-
Ground
Reset
F_PANEL
PWR LED
+HD_LED RESET
9. Speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
P8H61-M PLUS V3
+5V GND GND Speaker Out
SPEAKER
PIN 1
P8H61-M PLUS V3 Speaker Out Connector

Asus P8H61-M PLUS V3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Maximum Memory	16 GB
Memory Type	DDR3
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Max. LAN Speed	10/100/1000 Mbps
Video Outputs	1 x D-Sub, 1 x DVI-D
Expansion Slots	2 x PCIe 2.0 x1
LAN	Realtek 8111F
Power Connector	1 x 24-pin EATX Power, 1 x 4-pin ATX 12V Power
