ROG MAXIMUS XII APEX
1-9
Chapter 1
4. Fan and Pump headers

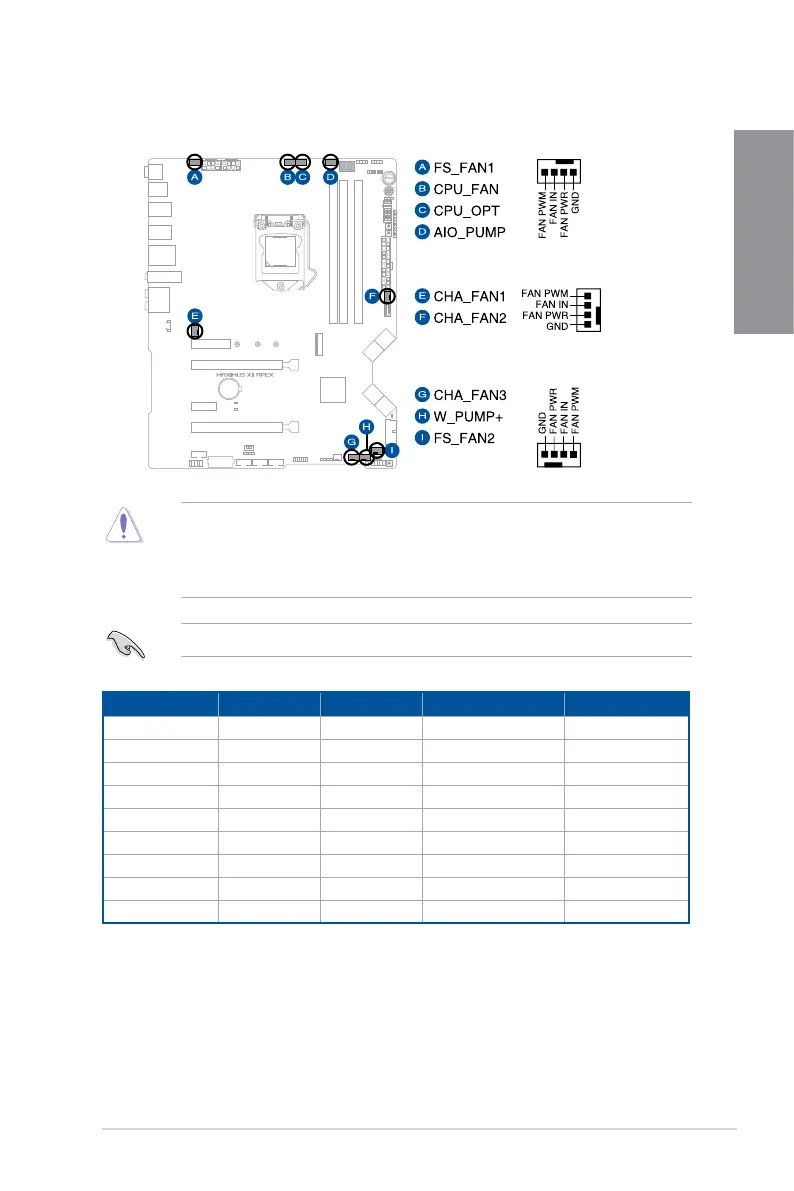

The Fan and Pump headers allow you to connect fans or pumps to cool the system.
• DO NOT forget to connect the fan cables to the fan headers. Insufficient air flow
inside the system may damage the motherboard components. These are not
jumpers! Do not place jumper caps on the fan headers!
• Ensure the cable is fully inserted into the header.
For water cooling kits, connect the pump connector to the W_PUMP+ header.
Header Max. Current Max. Power Default Speed Shared Control
CPU_FAN 1A 12W Q-Fan Controlled A
CPU_OPT 1A 12W Q-Fan Controlled A
CHA_FAN1 1A 12W Q-Fan Controlled -
CHA_FAN2 1A 12W Q-Fan Controlled -
CHA_FAN3 1A 12W Q-Fan Controlled -
W_PUMP+ 3A 36W Full-Speed -
AIO_PUMP 1A 12W Full-Speed -
FS_FAN1 1A 12W Full-Speed -
FS_FAN2 1A 12W Full-Speed -
