ROG MAXIMUS XII APEX
1-23
Chapter 1

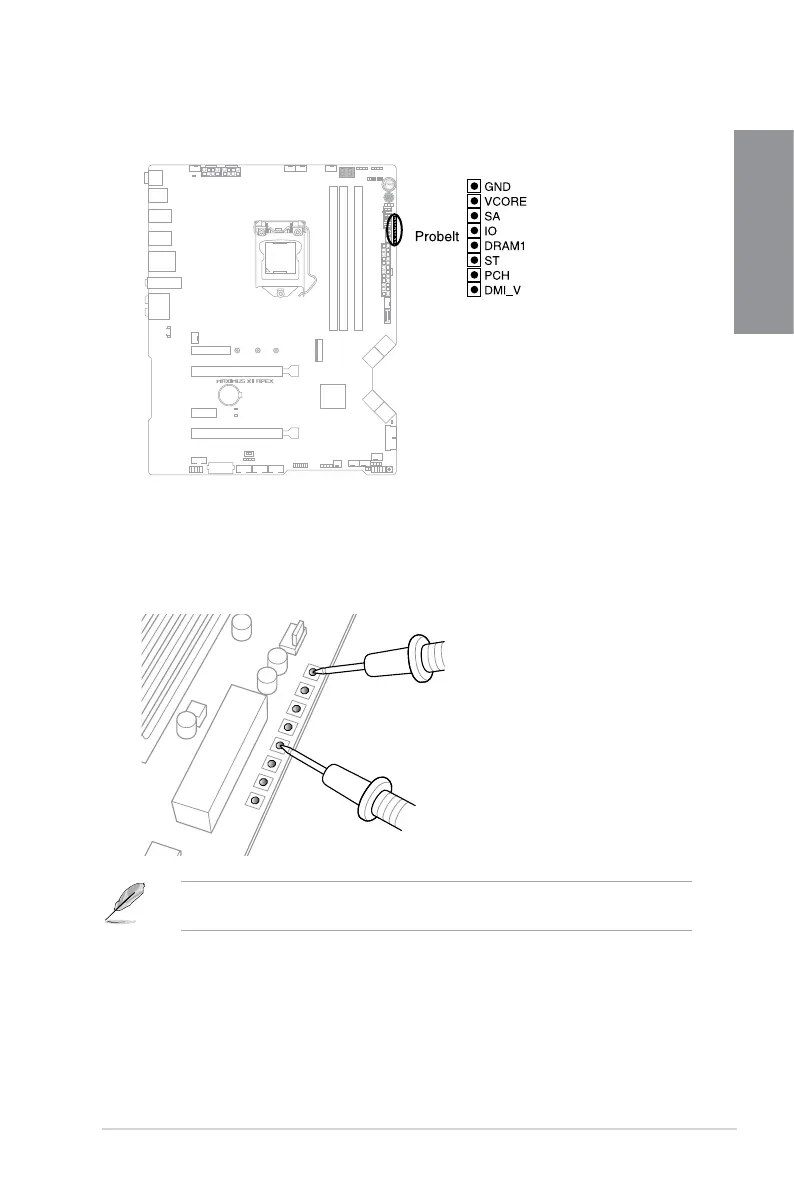

22. ProbeIt Measurement Points
The ROG ProbeIt allows you to detect your system’s current voltage and OC settings
using a multimeter. You can also measure the ProbeIt points during overclocking.
Using ProbeIt
Connect one of the probe onto the GND ProbeIt point, then connect the other probe
onto another ProbeIt point to measure the corresponding voltage information.
The illustration above is for reference only, the actual motherboard layout and measure
points may differ by model.
