2.1.7 Front I/O connector
USB 3.1 Gen 2

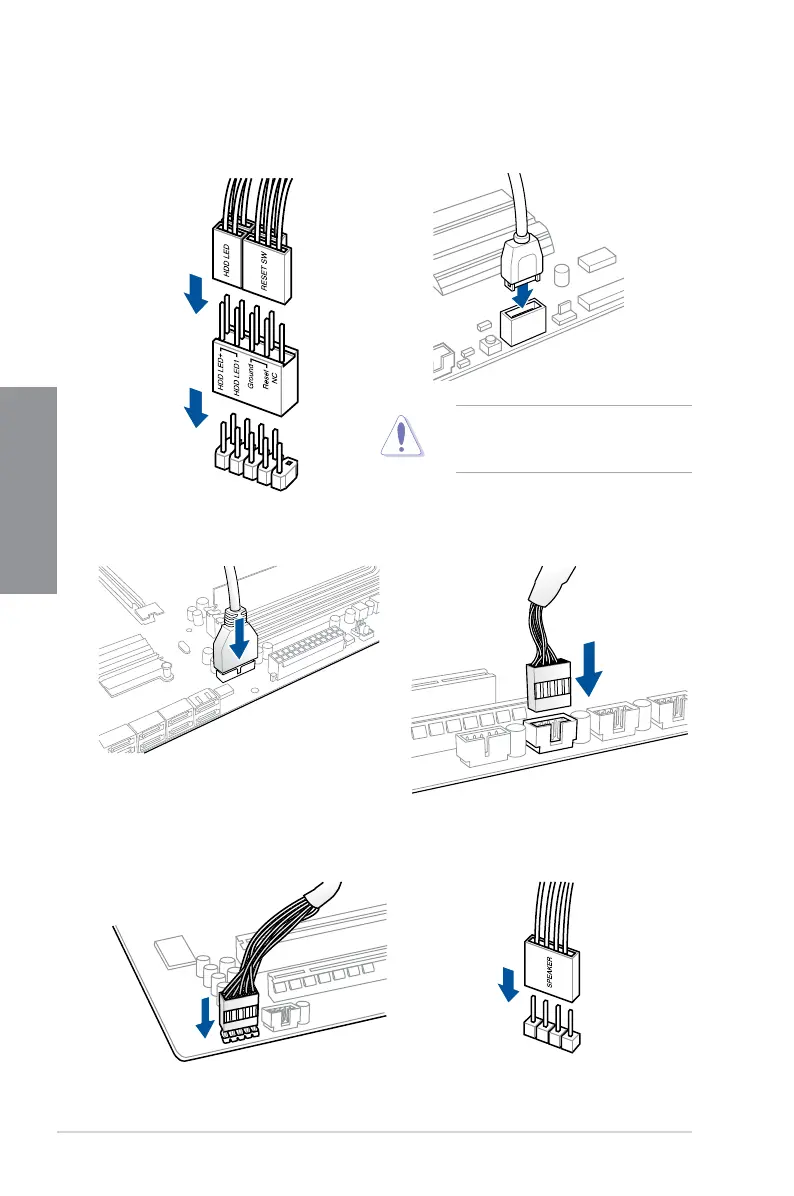

To install USB 3.1 Gen 2 connectorTo install ASUS Q-Connector
Thisconnectorwillonlytinone
orientation. Push the connector until it
clicks into place.
USB 2.0
AAFP
To install USB 2.0 connector
To install front panel audio connector
USB 3.1 Gen 1
To install USB 3.1 Gen 1 connector
To install system speaker connector
