19" LCD Color Monitor ASUS VB191T&S
11

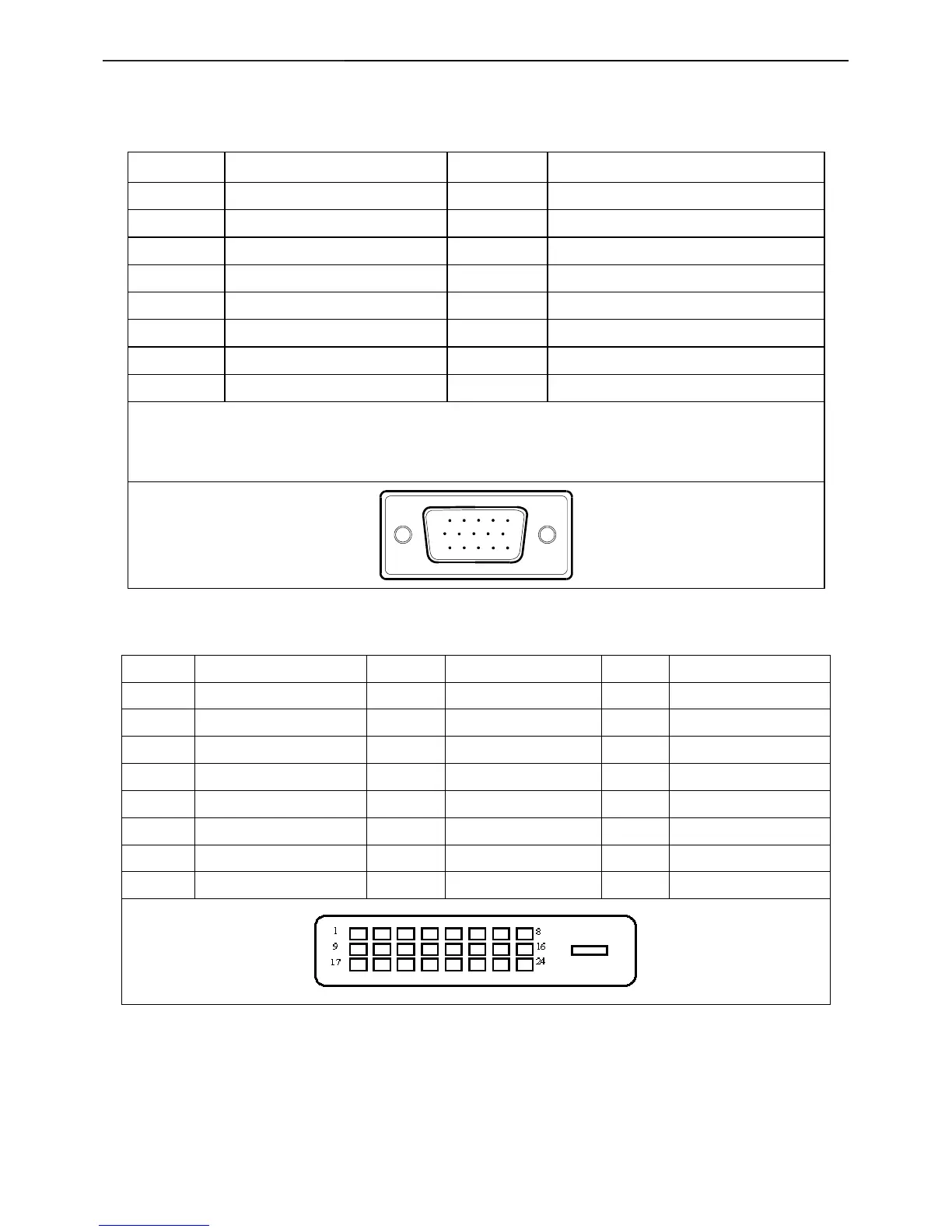

4. Input/Output Specification
4.1 Input Signal Connector
Analog connectors
Pin No. Description Pin No. Description
1. Red Video 9. +5V
2. Green Video 10. Logic Ground
3. Blue Video 11. Monitor Ground
4. Monitor Ground 12. DDC-Serial Data
5. DDC-Return 13. H-Sync
6. Red Ground 14. V-Sync
7. Green Ground 15. DDC-Serial Clock
8. Blue Ground
VGA connector layout
15
6
10
11 15
DVI connectors
Pin No. Description Pin No. Description Pin No. Description
1. RX2- 9. R X1- 17. RX0-
2. RX2+ 10. RX1+ 18. RX0+
3. RX2 Shield 11. RX1 Shield 19. RX0 Shield
4. NC 12. NC 20. NC
5. NC 13. NC 21. NC
6. DDC Clock 14. +5V Power 22. RX Clock Shield
7. DDC Data 15. Ground 23. RX Clock+
8. NC 16. Hot Plug Detection 24. RX Clock-
