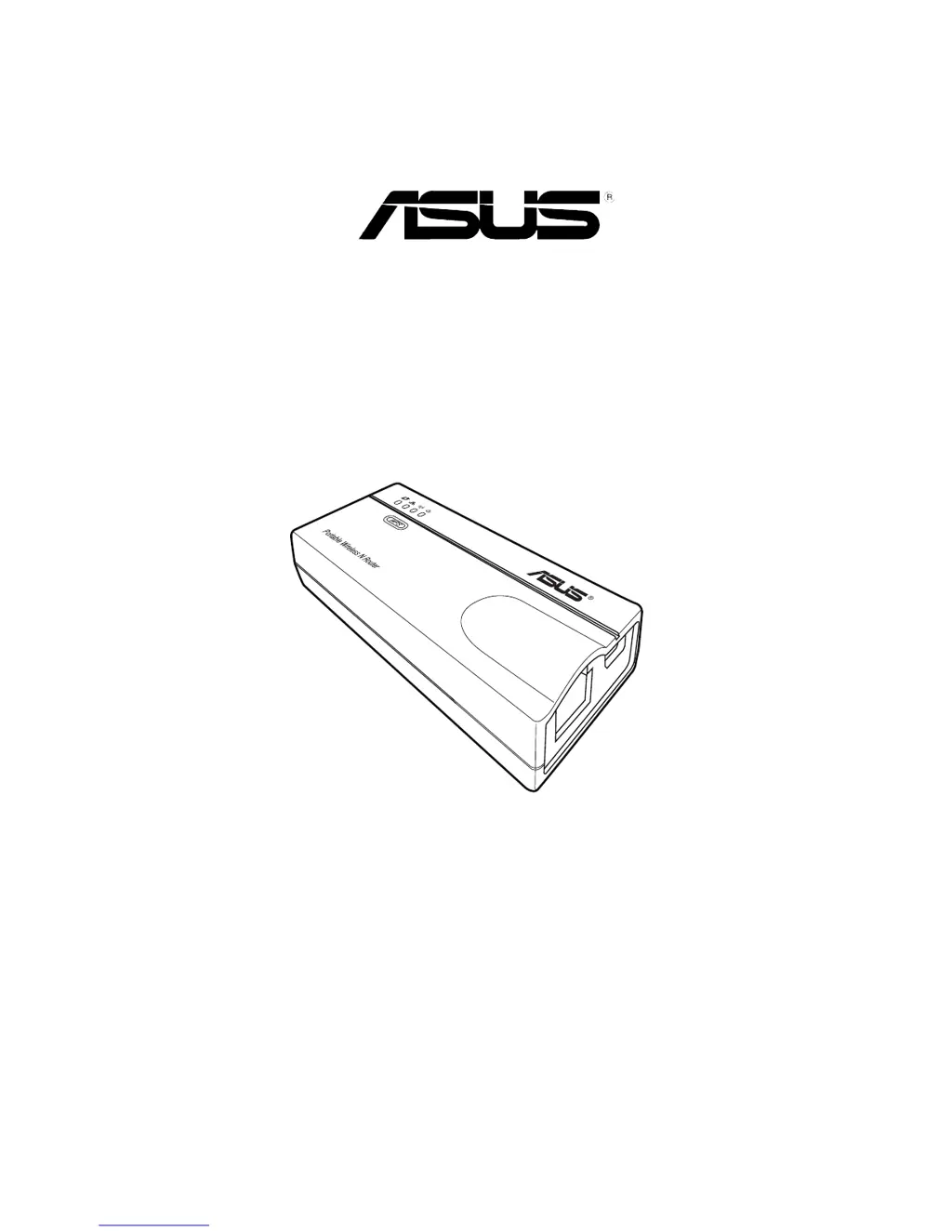

Asus WL-330N - User Manual

Other manuals for Asus WL-330N

Quick Start Guide42 pages

Questions and Answers

T
thompsonlynnJul 26, 2025
How to fix ASUS Wireless Router if WLAN card can't associate?
- T
  Tommy JohnsonJul 26, 2025
  If your ASUS WLAN card cannot connect to the ASUS WL-330N, ensure the WLAN card specifications match the ASUS WL-330N (IEEE 802.11b/g/n). Reduce the distance between devices. Verify that the ASUS WL-330N and the ASUS WLAN card share the same SSID and encryption settings when encryption is enabled. Check that the Wireless LED on the ASUS WL-330N is on. If the Access Control table is enabled, confirm that the MAC address of the ASUS WLAN card is included. Ensure the ASUS WL-330N is in “Access Point” mode. You can also reset all settings to their factory defaults manually by pushing the “Reset” button on the ASUS WL-330N while it is ON.
J
John BullockJul 31, 2025
Why can't ASUS Wireless Router connect to Internet for a new MAC address?
- A
  Alicia JohnsonJul 31, 2025
  If you can't connect to the Internet with a new MAC address, contact your ISP to update the MAC address associated with your subscription. Alternatively, clone or change the MAC address of the new device to match the MAC address of the original device.
C
carterdustinAug 5, 2025
Why is Asus WL-330N Wireless Router throughput so slow?
- K
  Kathy Walker PhDAug 5, 2025
  If the throughput of your ASUS WL-330N seems slow, avoid placing the device behind metal objects and clear any obstacles between the access point (AP) and the device. Try moving the client closer to the ASUS WL-330N to see if the throughput increases. You might also consider adding a second ASUS WL-330N to implement roaming.
F
fullerjoseAug 10, 2025
What to do if Asus WL-330N client can't get IP from DHCP server?
- L
  Lisa KingAug 10, 2025
  If a wireless client is unable to obtain the correct IP from the DHCP server (with DHCP enabled on the ASUS WL-330N), ensure the DHCP server is functioning correctly. As an alternative, assign a fixed IP address to your ASUS WL-330N.
S
sarahortizAug 14, 2025
What to do if ASUS WL-330N Wireless Router Power LED keeps blinking?
- K
  kylebeckAug 15, 2025
  If the ASUS WL-330N Power LED continuously blinks for more than a minute, first turn off the ASUS WL-330N, then turn it back on to see if the blinking stops. If it continues, you may need to restore the ASUS WL-330N firmware using the Firmware Restoration utility.
R
reyesdavidAug 19, 2025
How to fix ASUS WL-330N Wireless Router if it does not power up?
- B
  Brooke PearsonAug 20, 2025
  If the ASUS WL-330N does not power up, use a test meter to measure the voltage output of the power source through the power plug. Also, check if the power plug is properly connected to the device.

Summary

Chapter 1 Product introduction

1.1 Welcome!

Introduces the ASUS WL-330N, its functions, and technology standards.

1.2 Package contents

Lists all items included in the WL-330N package for user verification.

1.3 Features

Highlights key features such as data rate, security, operating distance, power modes, and OS compatibility.

1.4 Recommended network settings

Outlines configurations for different network modes: Router, AP, Ethernet Adapter, Repeater, Hotspot.

Chapter 2 Hardware installation

2.1 System requirements

Specifies the necessary system and network prerequisites for installing the ASUS WL-330N.

2.2 Device installation

Provides step-by-step instructions for physically installing the ASUS WL-330N device.

Chapter 3 Utilities

3.1 Installing the utilities

Guide on installing ASUS WLAN Utilities from the support CD for device configuration.

Firmware Restoration

Instructions for restoring WL-330N firmware in case of upgrade failures using the utility.

Chapter 4 Configuration

4.1 Overview

Introduces the web GUI for configuring the ASUS WL-330N and adjusting TCP/IP settings.

4.2 Operation modes

Details the five operation modes: Router, Access Point, Ethernet Adapter, Repeater, and Hotspot.

4.3 Advanced setting

Covers advanced configurations: Wireless, LAN, WAN, Firewall, Administration, and System Log.

Chapter 5 Using the device

5.1 Using the device in a local network

Connect wireless LAN computers to a local network with or without a DHCP server.

5.2 Replacing the computer Ethernet cables

Use WL-330N to wirelessly connect devices to a modem, replacing wired connections.

5.3 Replacing the cable connections of other devices

Use WL-330N as an Ethernet adapter for devices like Xbox, PlayStation, or set-top boxes.

5.4 Sharing Internet connection with other computers

Configure WL-330N in Router mode to share an internet connection with multiple computers.

Appendix Troubleshooting

Troubleshooting

Provides solutions for common problems during installation or usage of the ASUS WL-330N.

Asus WL-330N Specifications

General

DHCP client	-
Bandwidth	2.4 GHz
Input voltage	110 - 240 V
Input frequency	50/60 Hz
xDSL connection	No
Dimensions (WxDxH)	90 x 12.8 x 38.9 mm
Filtering description	IP, URL
Maximum data transfer rate	0.15 Gbit/s
WLAN data transfer rates supported	1, 2, 6, 9, 11, 12, 18, 24, 36, 48, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	1
VPN support	IPSec, PPTP, L2TP
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
LED indicators	LAN, Power, USB, WLAN
