ASUS X99-E-10G WS

3-67

Chapter 3

3.9.5 ASUS SPD Information

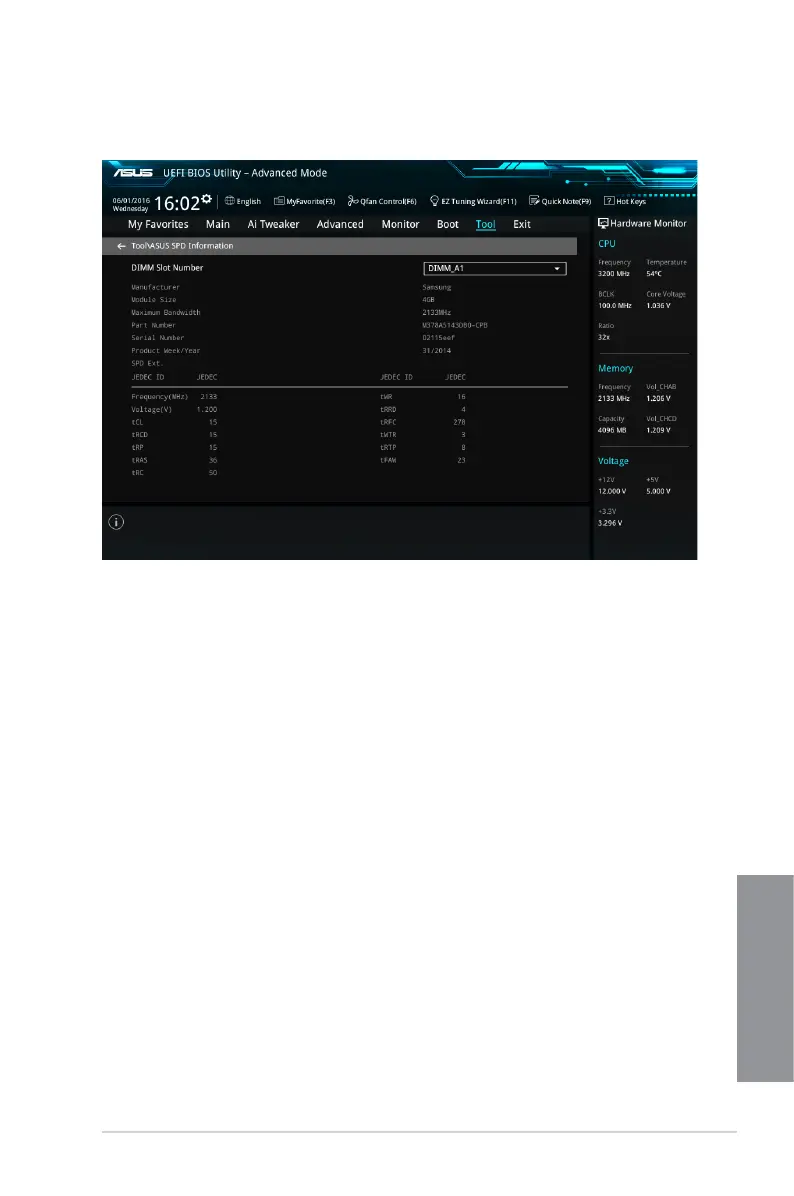

This item allows you to view the DRAM SPD information.

Main Page

Default Chapter3
