Asus X99-E Series - Motherboard Layout

1-2
Chapter 1: Product Introduction
Chapter 1
Referto1.1.9 Internal connectorsand2.2.1 Rear I/O connectionformoreinformation
aboutrearpanelconnectorsandinternalconnectors.

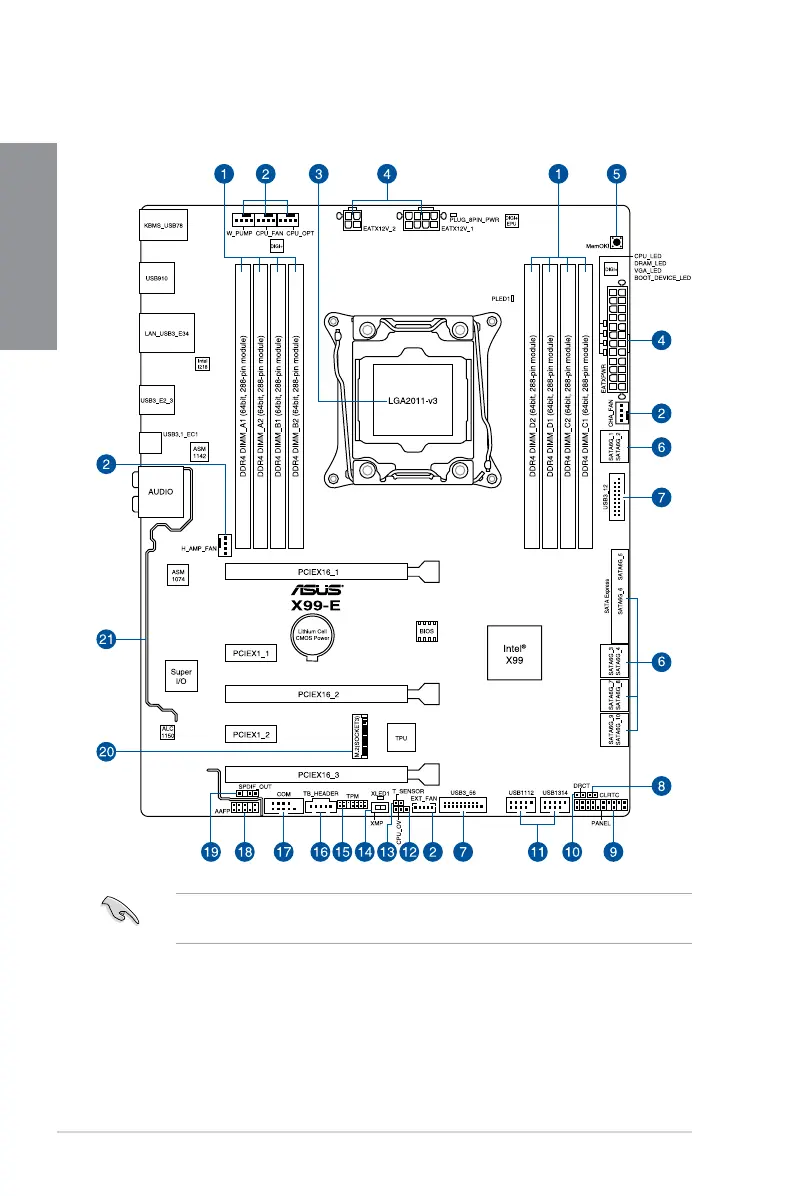

1.1.2 Motherboard layout
