Chapter 3: BIOS setup
Chapter 3

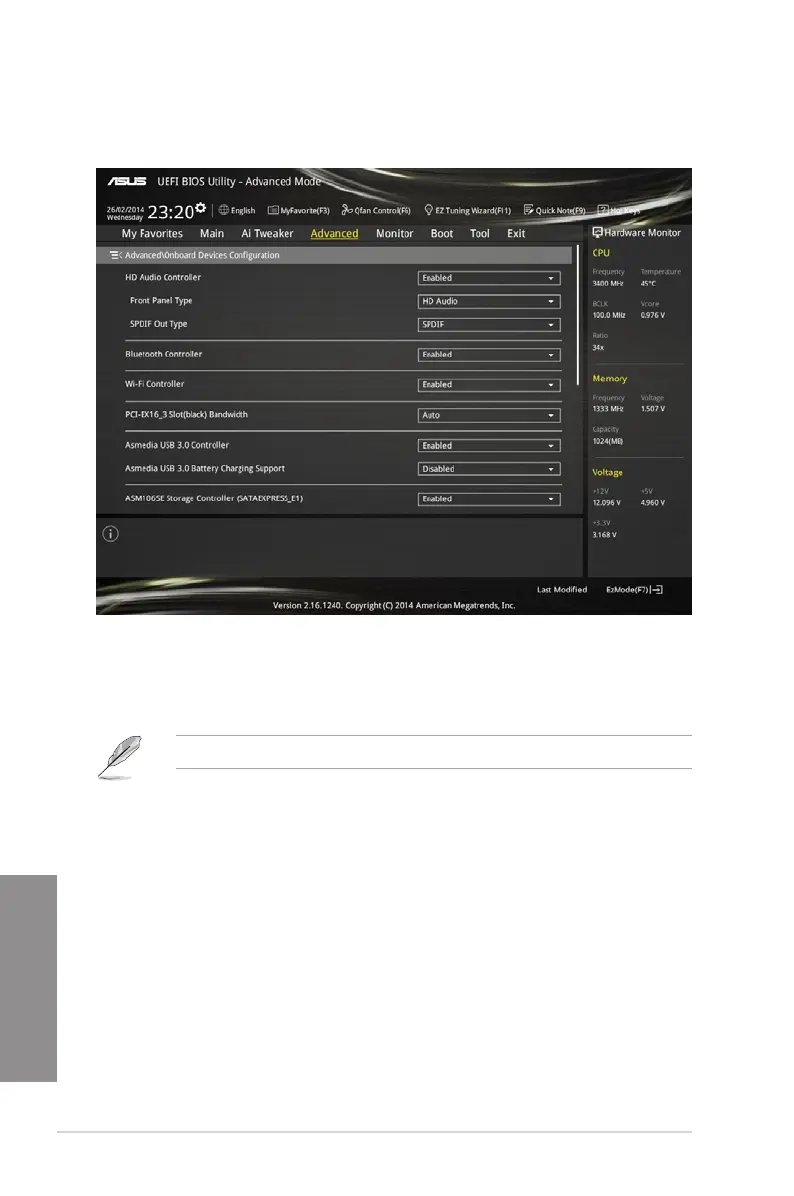

3.6.7 Onboard Devices Configuration
Scroll down to view the other BIOS items.
HD Audio Controller [Enabled]
This item allows you to use the Azalia High Denition Audio Controller
Conguration options: [Disabled] [Enabled]
The following items appear only when you set the HD Audio Controller to [Enabled].
Front Panel Type [HD]
This item allows you to set the front panel audio connector (AAFP) mode to legacy
AC’97 or high-denition audio depending on the audio standard that the front panel
audio module supports.
[HD] Sets the front panel audio connector (AAFP) mode to high denition
audio.
[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97
SPDIF Out Type [SPDIF]
[SPDIF] Sets to an SPDIF audio output.
[HDMI] Sets to an HDMI audio output.

Asus Z97-DELUXE Series Specifications

General

Chipset	Intel Z97
Form Factor	ATX
Socket	LGA 1150
Memory Slots	4 x DIMM
Maximum Memory	32GB
Memory Type	DDR3
Expansion Slots	3 x PCIe 3.0/2.0 x16, 4 x PCIe 2.0 x1
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC
Networking	Intel I218V, 1 x Gigabit LAN Controller(s)
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
Wireless	Wi-Fi 802.11a/b/g/n/ac
USB Ports	8 x USB 3.0, 6 x USB 2.0
