Asus Z97-DELUXE Series User Manual

ASUS Z97-DELUXE Series
2-1
Chapter 2
Basic installation
2
2.1 Building your PC system
2.1.1 Motherboard installation
The diagrams in this section are for reference only. The motherboard layout may vary with
models, but the installation steps are the same for all models.

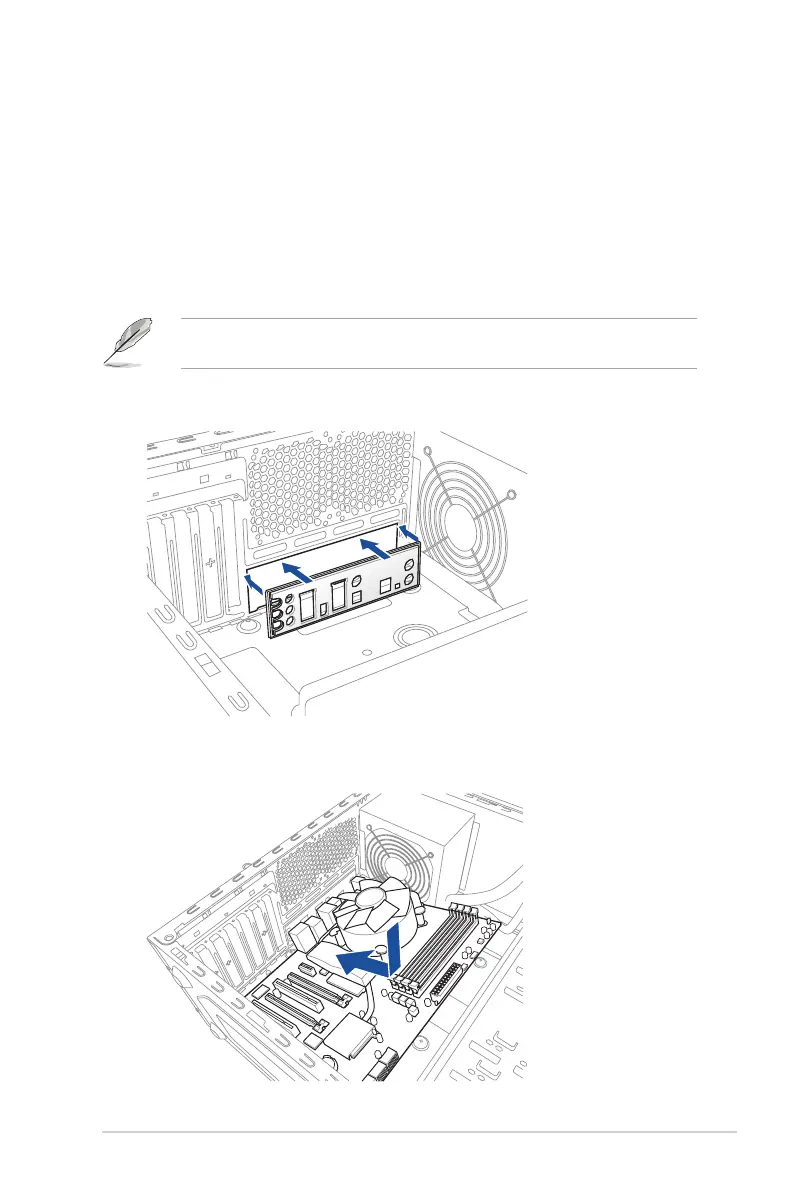

1. Install the ASUS Q-Shield to the chassis rear I/O panel.
Chapter 2: Basic installation
2. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to
the chassis’ rear I/O panel.

Asus Z97-DELUXE Series Specifications

General

Chipset	Intel Z97
Form Factor	ATX
Socket	LGA 1150
Memory Slots	4 x DIMM
Maximum Memory	32GB
Memory Type	DDR3
Expansion Slots	3 x PCIe 3.0/2.0 x16, 4 x PCIe 2.0 x1
Audio	Realtek ALC1150 8-Channel High Definition Audio CODEC
Networking	Intel I218V, 1 x Gigabit LAN Controller(s)
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
Wireless	Wi-Fi 802.11a/b/g/n/ac
USB Ports	8 x USB 3.0, 6 x USB 2.0
