Asus ZenWiFi AX User Manual

67
4.3 WAN

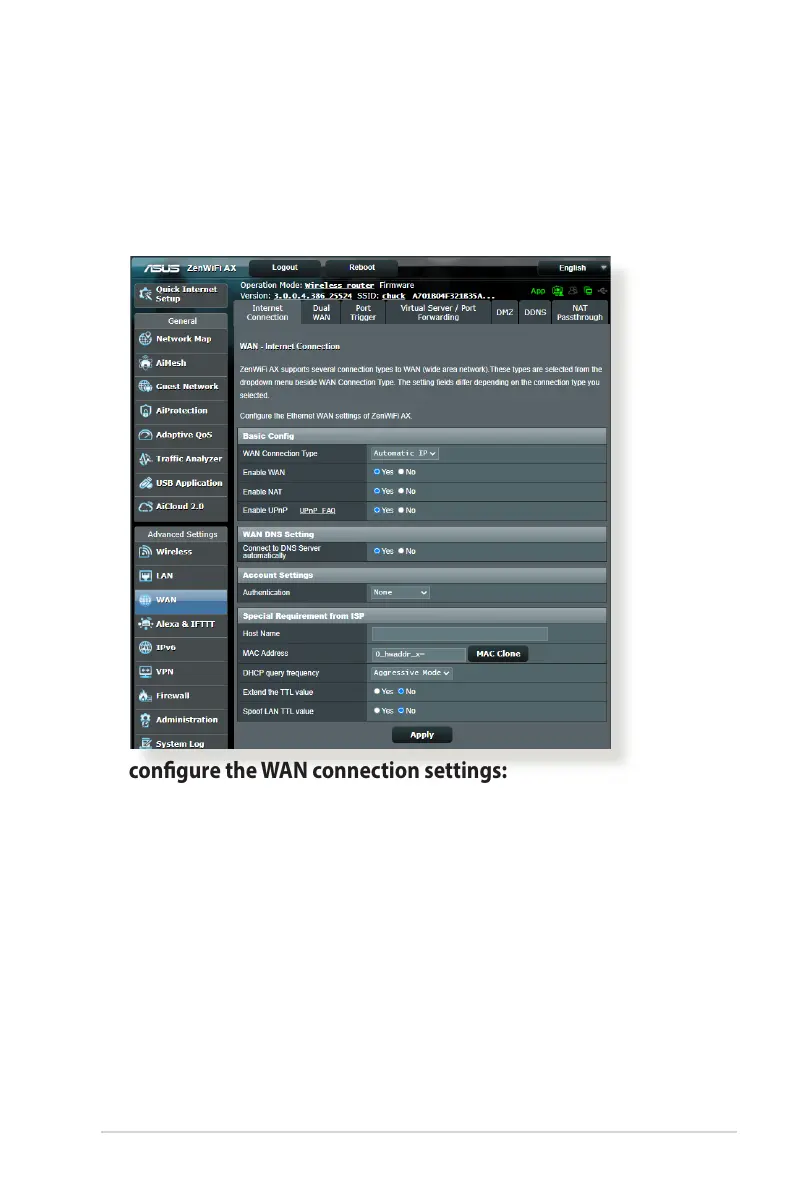

4.3.1 Internet Connection
The Internet Connection screen allows you to congure the
settings of various WAN connection types.
To congure the WAN connection settings:
1. From the navigation panel, go to Advanced Settings > WAN >
Internet Connection tab.
2. Congure the following settings below. When done, click
Apply.
• WAN Connection Type: Choose your Internet Service
Provider type. The choices are Automatic IP, PPPoE, PPTP,
L2TP or xed IP. Consult your ISP if the router is unable
to obtain a valid IP address or if you are unsure the WAN
connection type.
• Enable WAN: Select Yes to allow the router Internet access.
Select No to disable Internet access.

Asus ZenWiFi AX Specifications

General

WiFi Standard	Wi-Fi 6 (802.11ax)
MU-MIMO	Yes
RAM	512 MB
Flash	256 MB
Mesh Networking	Yes
OFDMA	Yes
Frequency Bands	2.4 GHz, 5 GHz
Coverage	Up to 5500 sq. ft.
Ports	1 x Gigabit WAN port
Beamforming	Yes
