ASUSTeK COMPUTER Pro B460M-C User Manual

ASUS Pro B460M-C
1-1
Product introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
to static electricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switched off or the power cord is detached from the power supply. Failure to do so
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage motherboard components.

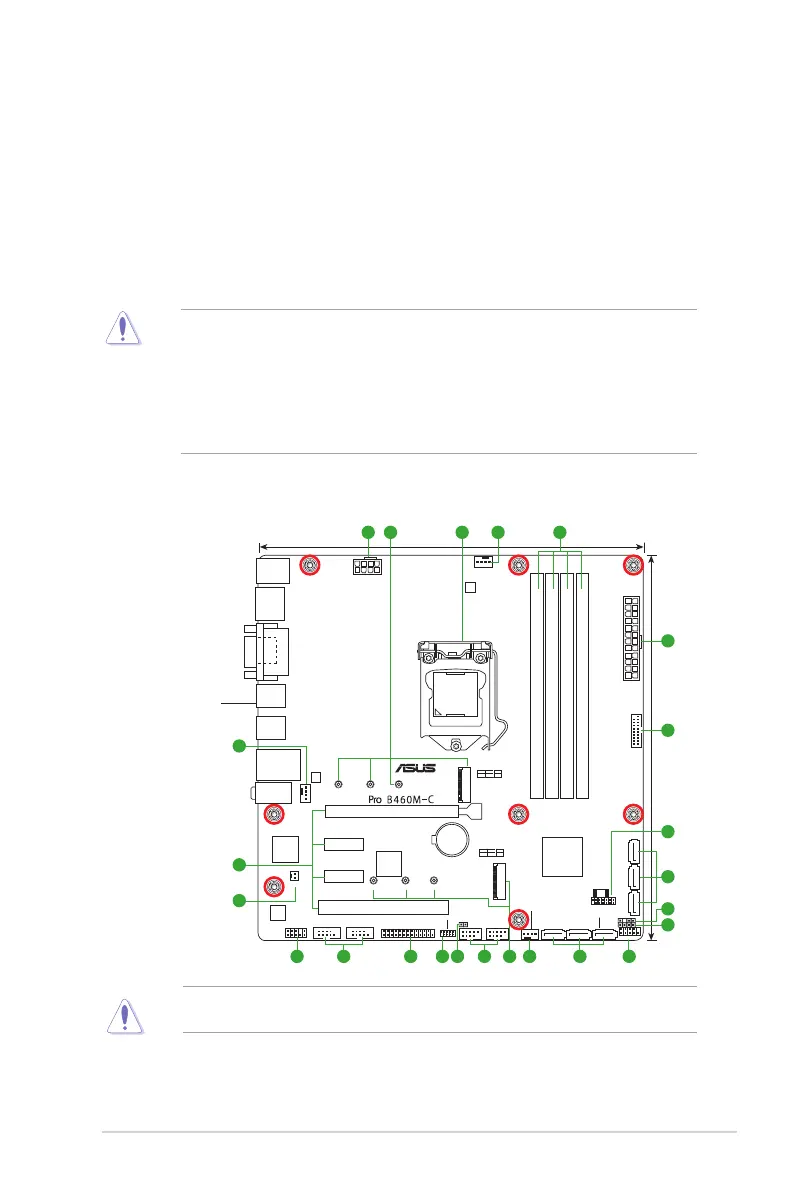

1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
PCI
PCIEX1_2
PCIEX1_1
SPEAKER
CHASSIS
CLRTC
F_PANEL
LPC_DEBUG
USB1112USB910
LPT
TPM
U32G1_56
AAFP
MONO_OUT
EATX12V
EATXPWR
CPU_FAN
CHA_FAN1
CHA_FAN2
BATTERY
PCIEX16
Super
I/O
ASM
1083
ALC
887
DIGI
+VRM
24.4cm(9.6in)
24.4cm(9.6in)
LGA1200
Intel
®
B460
Intel
®
I219V
DDR4 DIMM_B1 (64bit, 288-pin module)
2280
2260
2280 2260 2242
2242
M.2_2(SOCKET3)
M.2_2(SOCKET3)
PCIE SATA IRST
X4 X V
M.2_1(SOCKET3)
PCIE SATA IRST
X4 XV
M.2_1(SOCKET3)
DDR4 DIMM_B2* (64bit,288-pin module) DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_A2* (64bit, 288-pin module)
AUDIO
KBMS
DP_12
LAN_USB78
U32G1_34
U32G1_12
128Mb
BIOS
SATA6G_6 SATA6G_5
SATA6G_4
SATA6G_1SATA6G_2SATA6G_3
HDMI
VGA
COM1 COM2
65 1 24
19749 615 14 101213
5
7
8
17
11
3
4
16
18

ASUSTeK COMPUTER Pro B460M-C Specifications

General

Brand	ASUSTeK COMPUTER
Model	Pro B460M-C
Category	Motherboard
Language	English
