Machine Operation
15

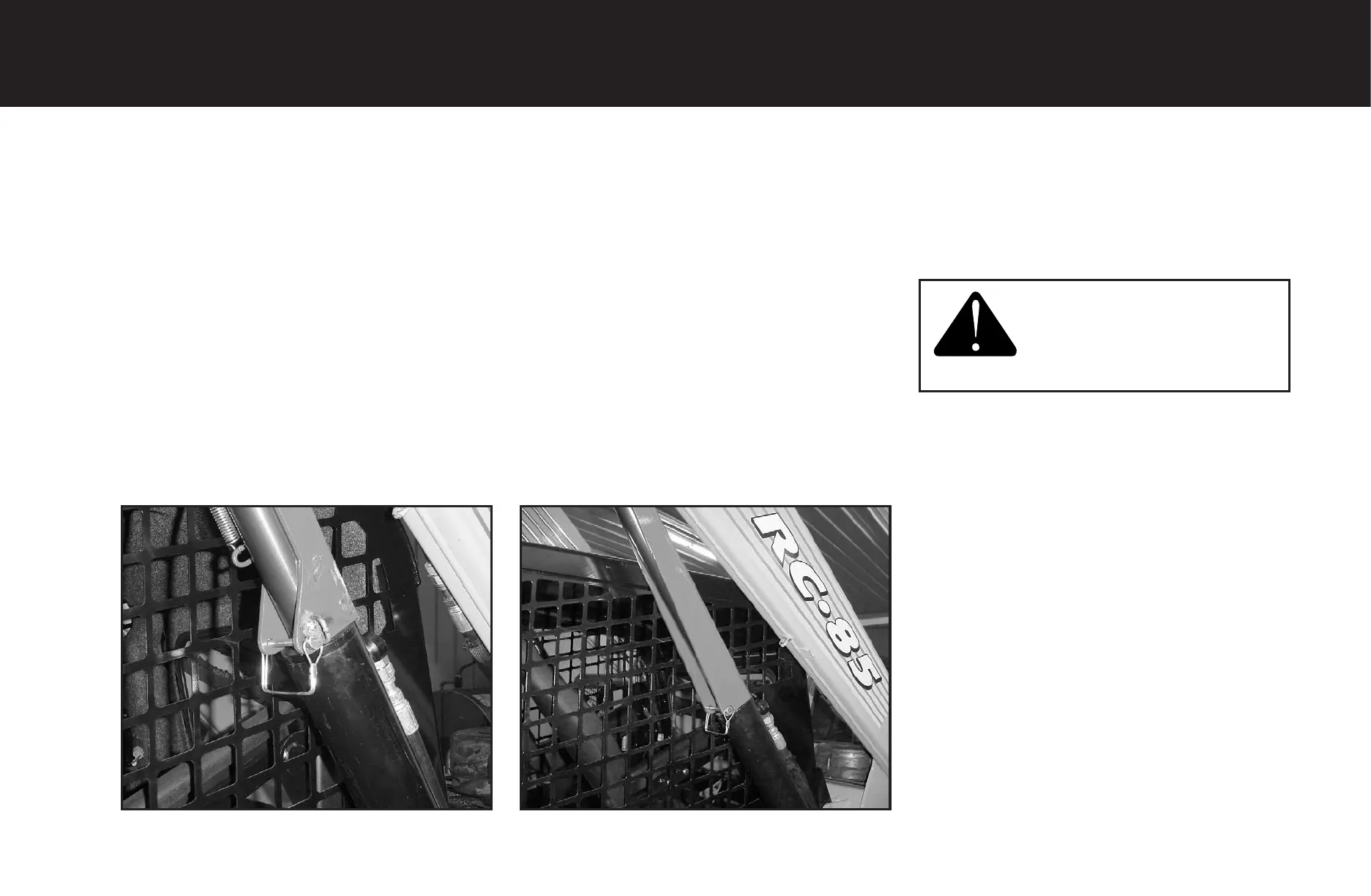

Lift Arm Brace
When the lift arms must be left in the
“up” position, the lift arm brace must be
used. To engage:
1. Remove any attachment from the
machine and park the machine on
flat, stable ground.
2. Have a second person release the
retaining pins from the lift arm brace
on the fender and remove the brace.
3. Raise the lift arms high enough
where the brace can be installed.
4. Have the second person place the lift
arm brace onto the top side of the
cylinder ram and install the retaining
pins.
5. Slowly lower the lift arms onto the
brace until the lift arms stop.
To disengage:
1. Raise the loader until the lift arms are
free from the brace.
2. Have a second person remove the
retaining pins and remove the brace.
3. Lower the lift arms all the way down.
4. Replace the lift arm brace to the
fender brackets and install the retain-
ing pins.
!WARNING! Two people must perform
this procedure. Never place your
body under unsecured lift arms as
bodily harm or death could result!
