ASV R Series User Manual

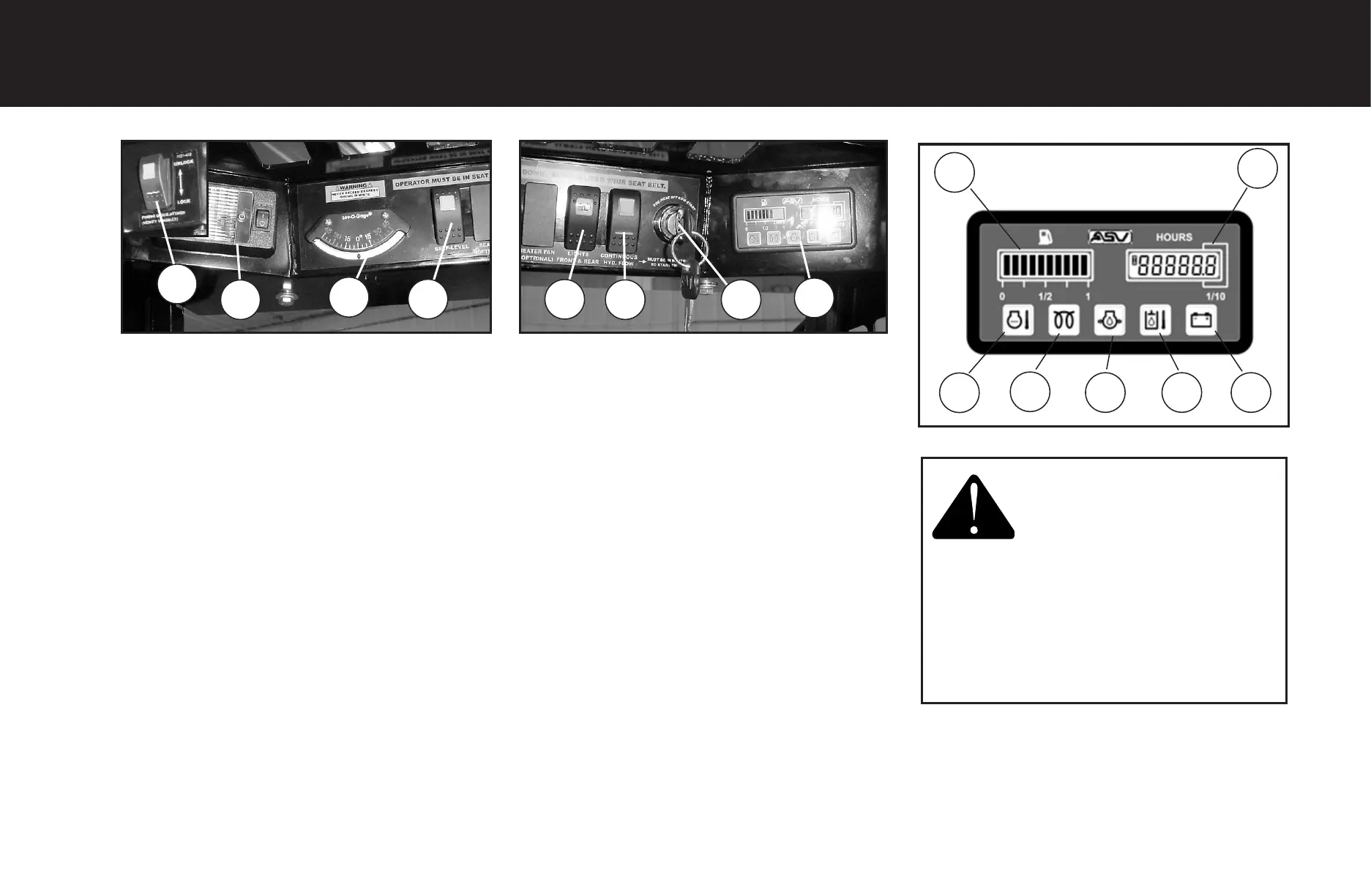

Dash Panel
The dash panel (photos above) is located
for easy visibility. The dash panel
includes:
D - Dome light
E - Slope indicator
F - Self leveling switch
G - Lights, front and rear
H - Continuous flow switch
I - Ignition, glow plugs
J - Gauge/warning light panel
K - Hydraulic Q/A switch (RC-60)
L - Fuel level gauge
M- Service hour meter
N - Engine coolant temp. warning
O - Glow plug operation
P - Engine oil pressure warning
Q - Hydraulic oil temp. warning
R - Battery low voltage warning
If the battery low-voltage light (R)
illuminates, drive the machine to a suit-
able location and shut the engine off.
Diagnose the problem and make needed
repairs before continuing to operate.
The glow plug operation light (O) illu-
minates only when the key switch is
turned to engine pre-heat, showing nor-
mal operation.
Also included in the gauge/warning
light panel is a fuel level gauge (L) and
a service hour meter (M).
Gauges / Warning Lights
9
N
O
P Q R
L
M
!CAUTION!
Should the engine coolant
temperature, engine oil pressure or
hydraulic oil temperature light illuminate during
normal machine operation, shut the machine
down immediately. Diagnose the problem and
make needed repairs before continuing to
operate.
D
E
F
G
H
I
J
K
