A simplified “Easy-Tuning” method is available through the Asyril HMI and is presented in
section 5.3 on page 21 of this document.

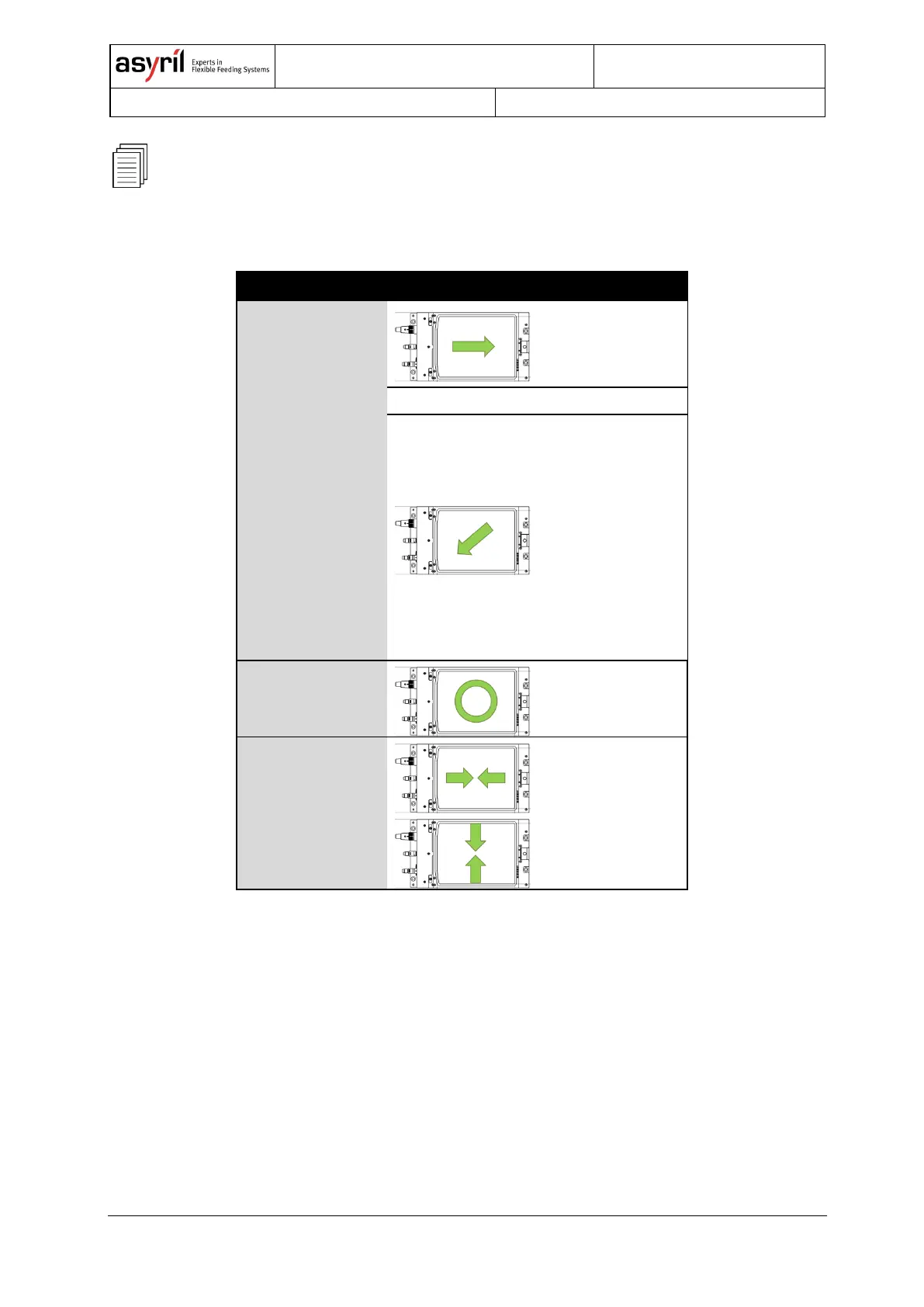

Table 5-3 below illustrates the directions of standard platform vibrations.
Direction
Vibration
Forward
(A)
Forward left
(B)
Forward right
(C)
Left (D)
Right
(E)
Backward
(F)
Backward left
(G)
Backward right
(H)
A
…
H
Flip
(I)
I
Centring on
the short axis
(J)
Centring on
the long axis
K
J
K
Table 5-3: Asycube 240 & 380 & 530 – standard platform vibrations
5.3. Asycube 240 & 380 & 530: Simplified adjustment method
"Easy-Tuning"
The system has a simplified adjustment method called “Easy-Tuning” applicable to all
parameters of Asycubes 240, 380 and 530. It is detailed in this section. This method involves
only the 11 standard vibrations (A – K).
