BS5 User Manual v2.0 Instructions  15
 Units - hPa or mbar for example.
 First Value - Depending on the range selected on the sensor
make the first value equal the lower limit. Eg. 600
 Step - to give 4 or 5 steps to the upper limit. Eg. 100
 Optimise Resolution - approx. 1000 mbars
 Enter the mV value in the table for the appropriate pressure using
the formula or copy the table above for this pressure range.
 
 











(mV) voltagescale full
limitlimit
limit mbar
mV
lowerupper
lower
Eg.
 
 
1600
25.0
400
6001100
6001000










2000
mV
 On the Measurement tab make sure the valid range is the same as
is selected on the SW1 DIP switches of the sensor. The sensor
should be set to 2000mV when used with a DL2e.
 Set a warm up of 5 seconds on the same relay channel as used to
wire the sensor to the logger. The sensor takes over 1 second
to stabilise.

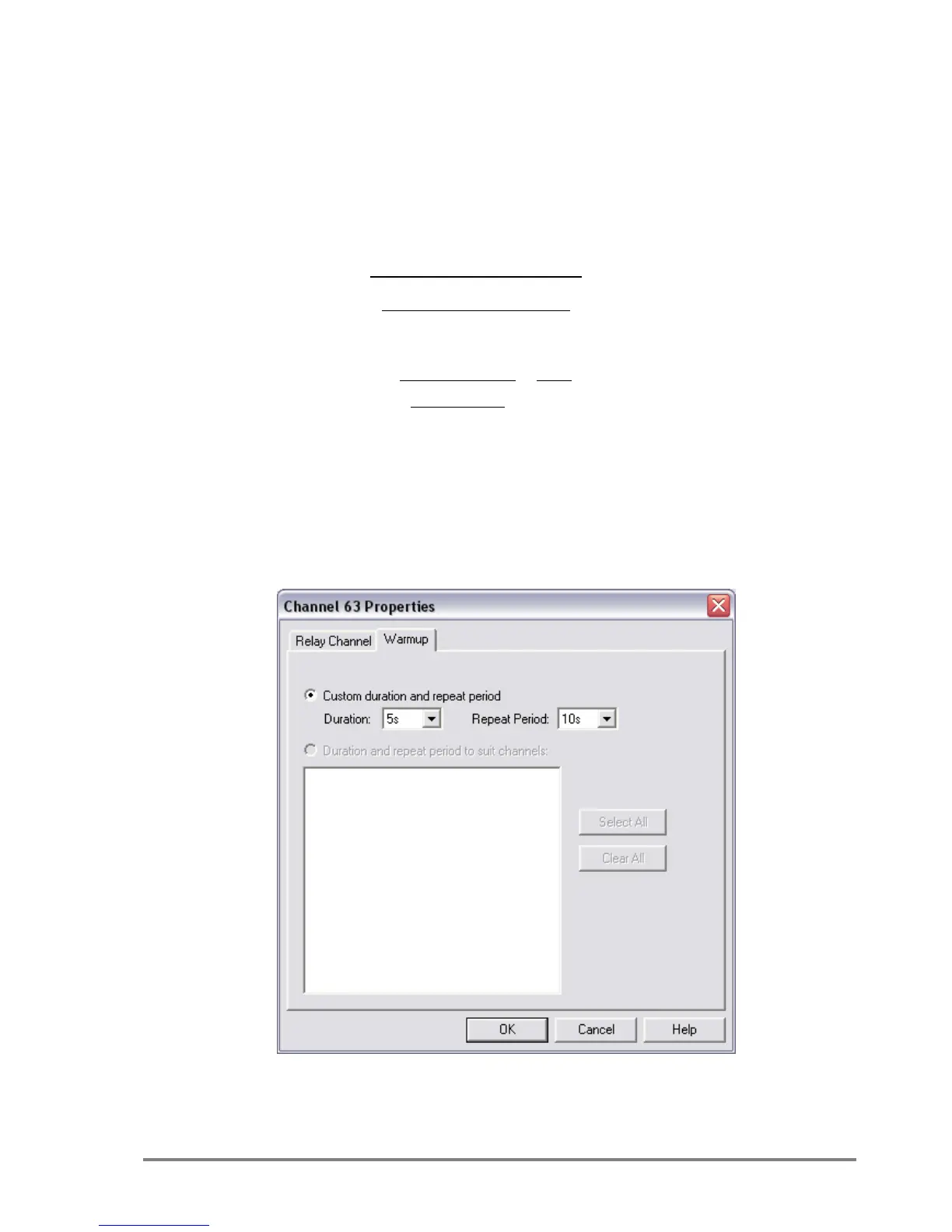

Figure 12. Warmup set-up for a logging rate of 10s
 Set the Repeat period to the same frequency as the logging rate.
