Atag i Series Technical Guide

Weather compensation settings calculation
All these settings below calculate the ideal heating line for this specific property. For the Heating type,
Building Insulation Level and the Building Size.
Thermoregulation oset
Where a ONE
Zone
controller is fitted the front display gives and thermoregulation oset temperature
of ± 14 for high temperature systems and ± 7 for low temperature systems. This oset setting can
alter the flow temperature being produced by the boiler by the adjusted amount.
For example
If the boiler has a heat line ‘C’ which is ‘Heating type – Radiators’, ‘Building insulation level
– Average’ & ‘Building size – Average’, then when the outside temperature is 5.0°C the flow
temperature will be 51°C. Therefore if the thermoregulation oset was set to +4°C then the adjusted
flow temperature will be 55°C.

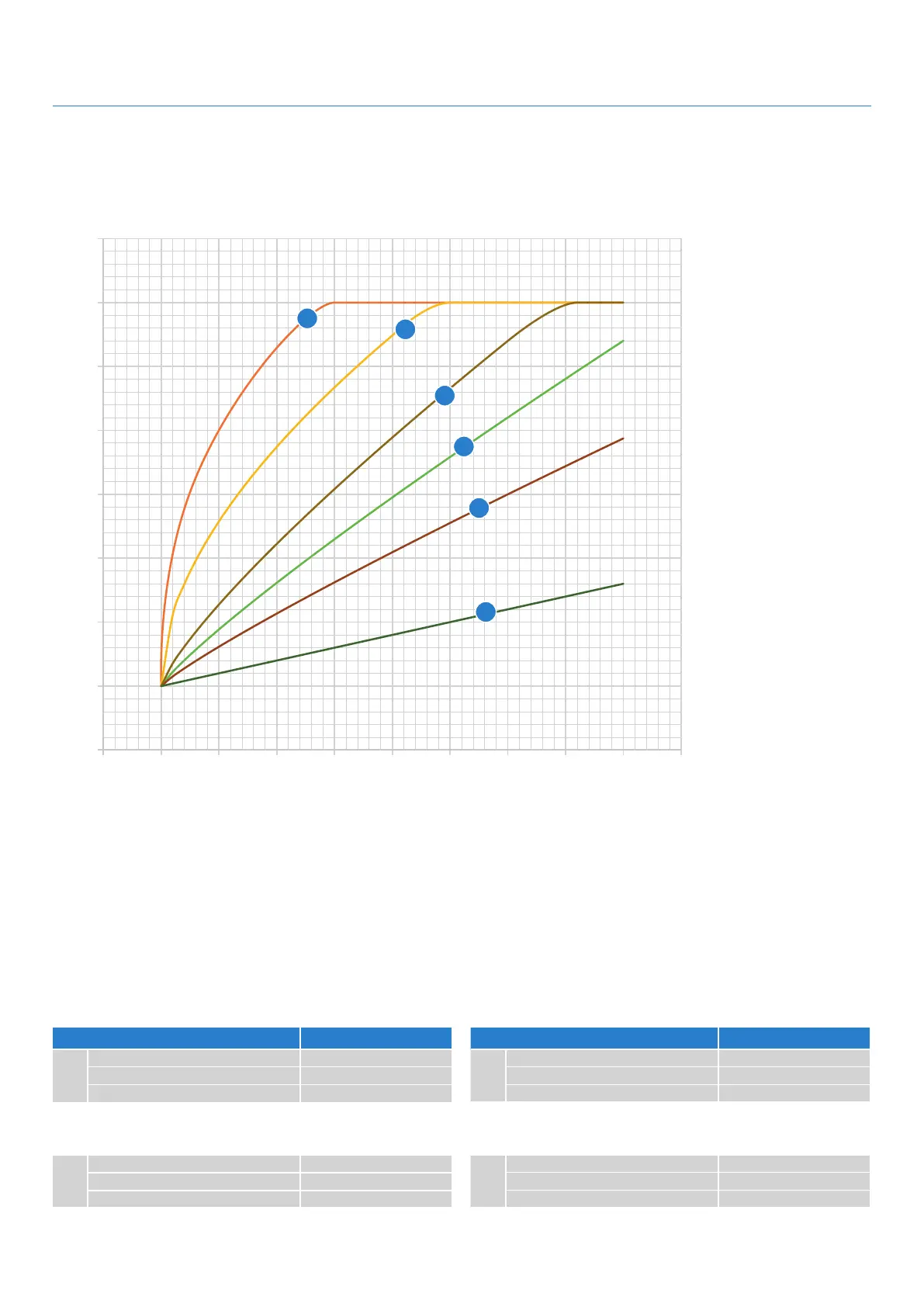

10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
-25.0-20.0-15.0-10.0-5.00.0 5.0 10.0 15.0 20.0 25.0
Setpoint flow temperature
Outdoor temperature
A
B
C
D
E
F
A Heating Type Air heating
Building Insulation Level Poor
Building size Small
B Heating Type Convectors
Building Insulation Level Average
Building size Average
C
Heating Type Radiators
Building Insulation Level Average
Building size Average
D
Heating Type Radiators (main) + floor
Building Insulation Level Good
Building size Average
E Heating Type Underfloor
Building Insulation Level Average
Building size Average
F
Heating Type Underfloor
Building Insulation Level Good
Building size Average
43
