(5)
The measured value will
remain displayed for ap-
proximately 2 minutes.
To
turn off the display, press
and hold down the START
key for approximately 2
seconds.
(6)
Remove the sample by
wiping it off with a tissue.
Use water to remove any
remaining sample. Dry off
any excess moisture with
a clean, dry tissue.
Fi9'(-3~~
.....
~.
s
(
Fig.
3,.-4-,::::::=---==:",\
_
2D.'1
'C
12.3
The internal temperature of the sample stage is
displayed, which may vary from the temperature
of the sample itself.

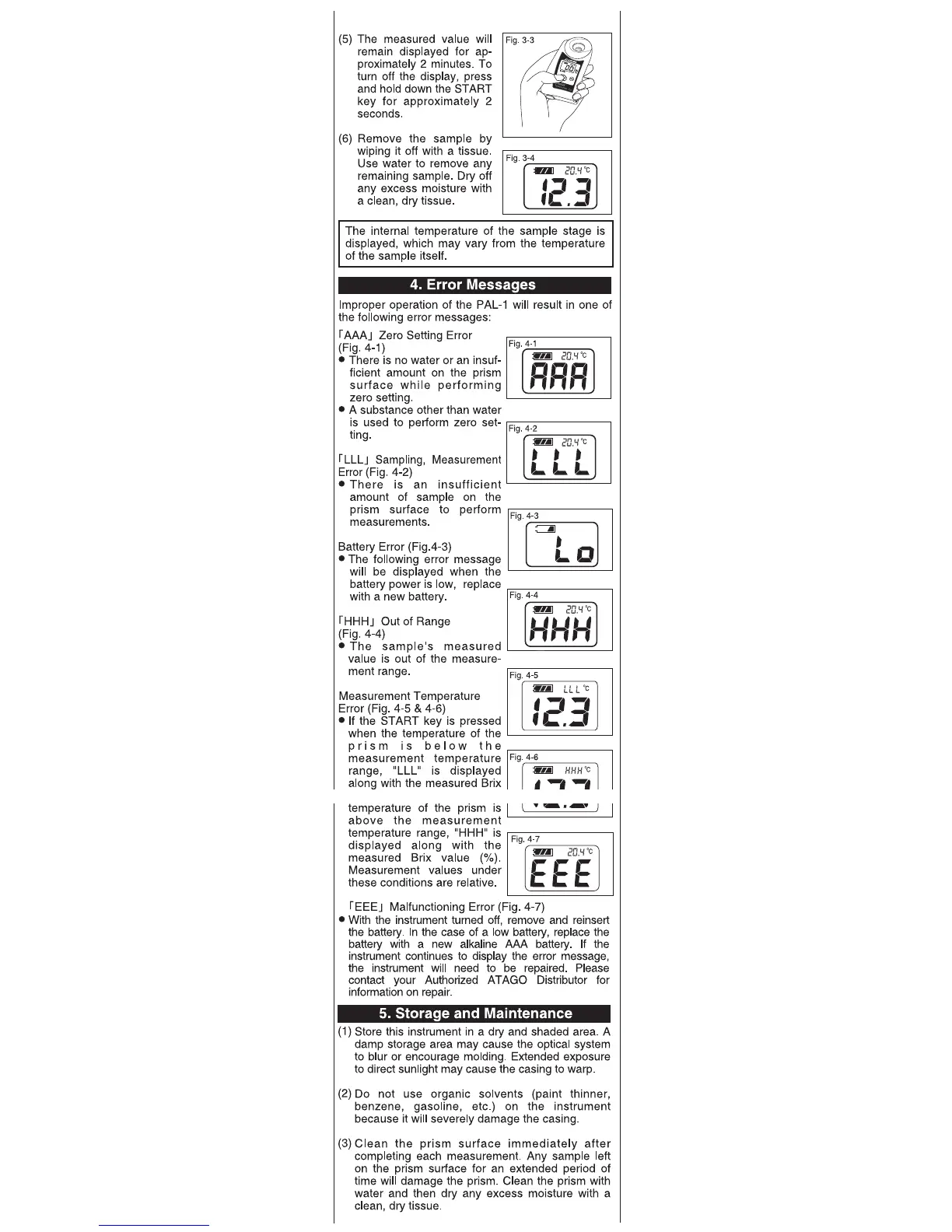

4. Error Messages
Improper operation of the
PAL-1
will result
in
one of
the following error messages:
r AAAJ Zero Setting Error
(Fig. 4-1)
• There is no water or
an
insuf-
ficient amount
on
the prism
surface
while
performing
zero setting.
• A substance other than water
is
used to perform zero set- r::
F
::-
ig
-.
4:-:-2:----------,
ting. _
2D.'1
'C
rLLLJ Sampling, Measurement
La
La La
Error
(Fig. 4-2)
•
There
is an
insufficient
L~====~
amount of sample
on
the
prism surface to perform
r::F::-ig-.4:-:_3:----------,
measurements.
[TI
Battery Error (Fig.4-3)
~La
0
• The following error message
will be displayed when the
'------------'
battery power
is
low, replace
r::::----:-c:----------,
with a new battery.
Fig.
4-4
_
2D.'1
'C
rHHHJ Out of Range
HHH
(Fig. 4-4)
•
The
sample's
measured
L~===::::::::~
value is out of the measure-
ment range.
r::
F
::-
ig
-,.
4:-:-5:----------,
_
Lll
'C
Measurement Temperature
Error (Fig. 4-5 & 4-6) ,
~
3
• If the START key is pressed fl:'".
when the temperature of the
L~====:.....J
prism
is
below
the
r::::---,:-::----------,
measurement temperature
Fig.
4-6
range, "LLL" is displayed =-
HHH
'C
along with the measured Brix ,
~
3
value
("Ia).
Likewise,
if
the
fl:'".
temperature of the prism is
L-...2:::==·==:.....J
above
the
measurement
temperature range, "HHH" is
r:F=-ig-'.
4:-:-7:--------,
displayed along with the
measured Brix value
("Ia).
-
2D.'1
'C
Measurement values under E E E
these conditions are relative.
rEEEJ Malfunctioning Error (Fig. 4-7)
• With
the
instrument tumed
off,
remove
and
reinsert
the
battery.
In
the
case
of a low
battery,
replace the
battery
with
a
new
alkaline AAA battery.
If
the
instrument continues
to
display the error
message,
the instrument
will
need
to
be
repaired.
Please
contact your Authorized ATAGO Distributor for
information
on
repair.
5. Storage and Maintenance
(1)
Store this instrument
in
a dry and shaded area. A
damp storage area may cause the optical system
to
blur or encourage molding. Extended exposure
to
direct sunlight may cause the casing to warp.
(2)
Do
not use organic solvents (paint thinner,
benzene, gasoline, etc.)
on
the instrument
because
it
will severely damage the casing.
(3)
Clean the prism
surface
immediately
after
completing each measurement. Any sample left
on
the prism surface for
an
extended period of
time will damage the prism. Clean the prism with
water and then dry any excess moisture with a
clean, dry tissue.
