AT&T Merlin Legend MLX-20L - Direct Station Selector

TELEPHONE
Dedicated Feature
Buttons
Feature
HFAI
Mute
Transfer
Speaker
Conf
Drop
Press to view the
Feature screen and to
select features.
(Hands Free Answer on
Intercom) is not used on
a QCC.
Press to turn speaker-
phone microphone
on/off.
Press to direct calls to
other users. Using the
Start button rather than
the
Transfer button is
recommended.
Press to turn speaker-
phone on/off.
Press to setup multiple-
party calls.
Press to disconnect last
Hold
person added on a
conference call.
Press to put call on
hold.
Direct Station Selector
DSS
Buttons
Fixed
Page
Buttons
Fixed
Message
Status
Button
Call and Fixed
Feature Button (20)
and Alpha Letters
Use to place or direct
calls with one-touch
dialing. Each DSS button
can represent three
numbers. The number
represented by the DSS
button depends on the
page selected.
Use to reach the
various phone numbers
assigned to your DSS.
Page refers to the range
of numbers on the DSS,
for example,
Page 1
represents the 100 range,
Page 2 represents the
-
700 range, and Page 3
represents the 800
range.
Use with Page buttons
to check the status of
co-workers’ message
lights.

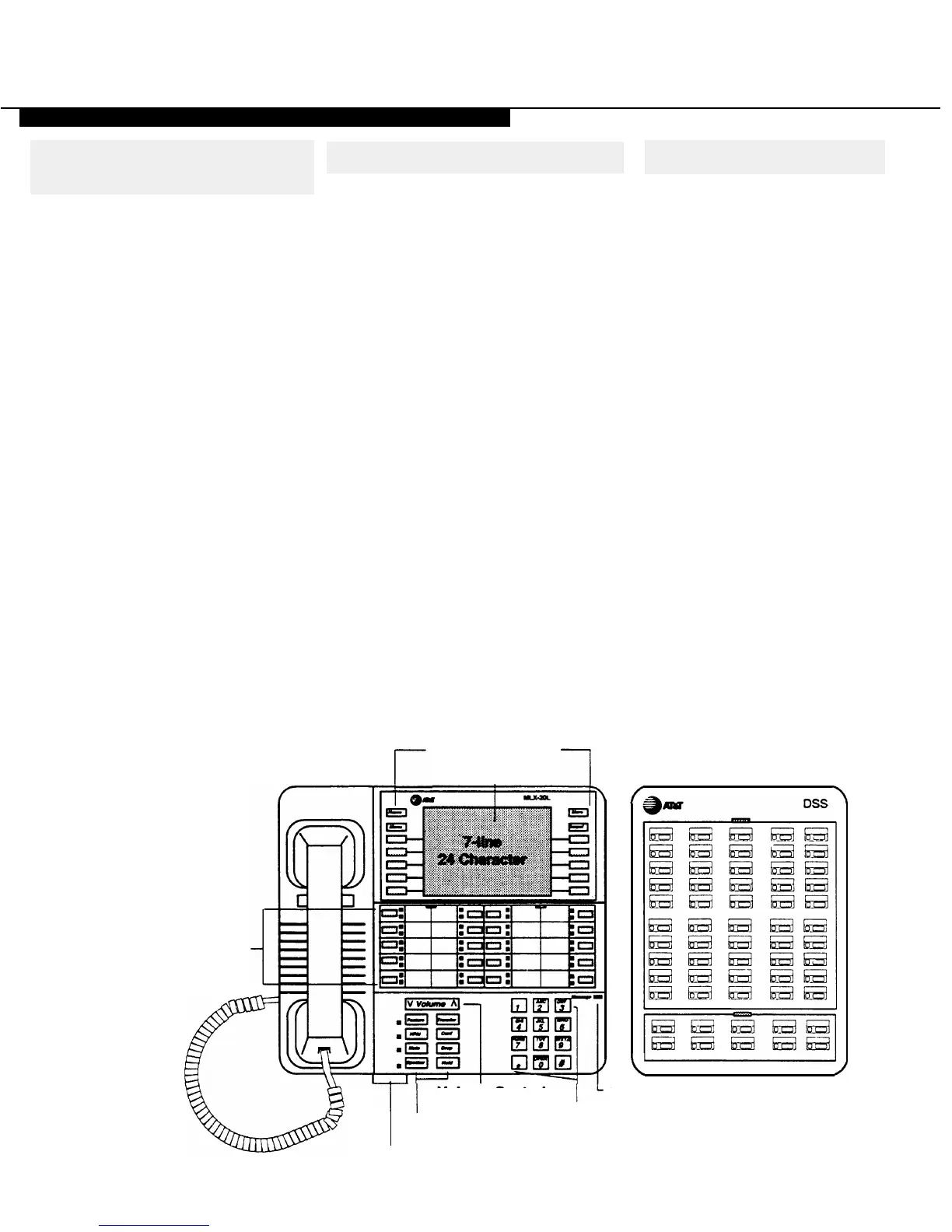

MLX-20L Display
Display Buttons
Display Screen
Display Buttons
Home
Inspct
Menu
More
<Soft
Button>
Press to display
the Home screen.
Press to display call
information or press
programmed button to
see what feature is
programmed.
Press for extension
programming or
features available only
from the display.
Press to display more
information. The > displays
by the More button when
more information exists.
Press More to advance
through additional menus,
when necessary (for
example, when selecting
features).
These buttons are
associated with display
labels. Button assignments
change depending on
display.
Direct
Station Selector
(DSS)
Volume Control
Message Light
Dialpad
Dedicated Feature Buttons (8)
User Cards
and Tray
