3

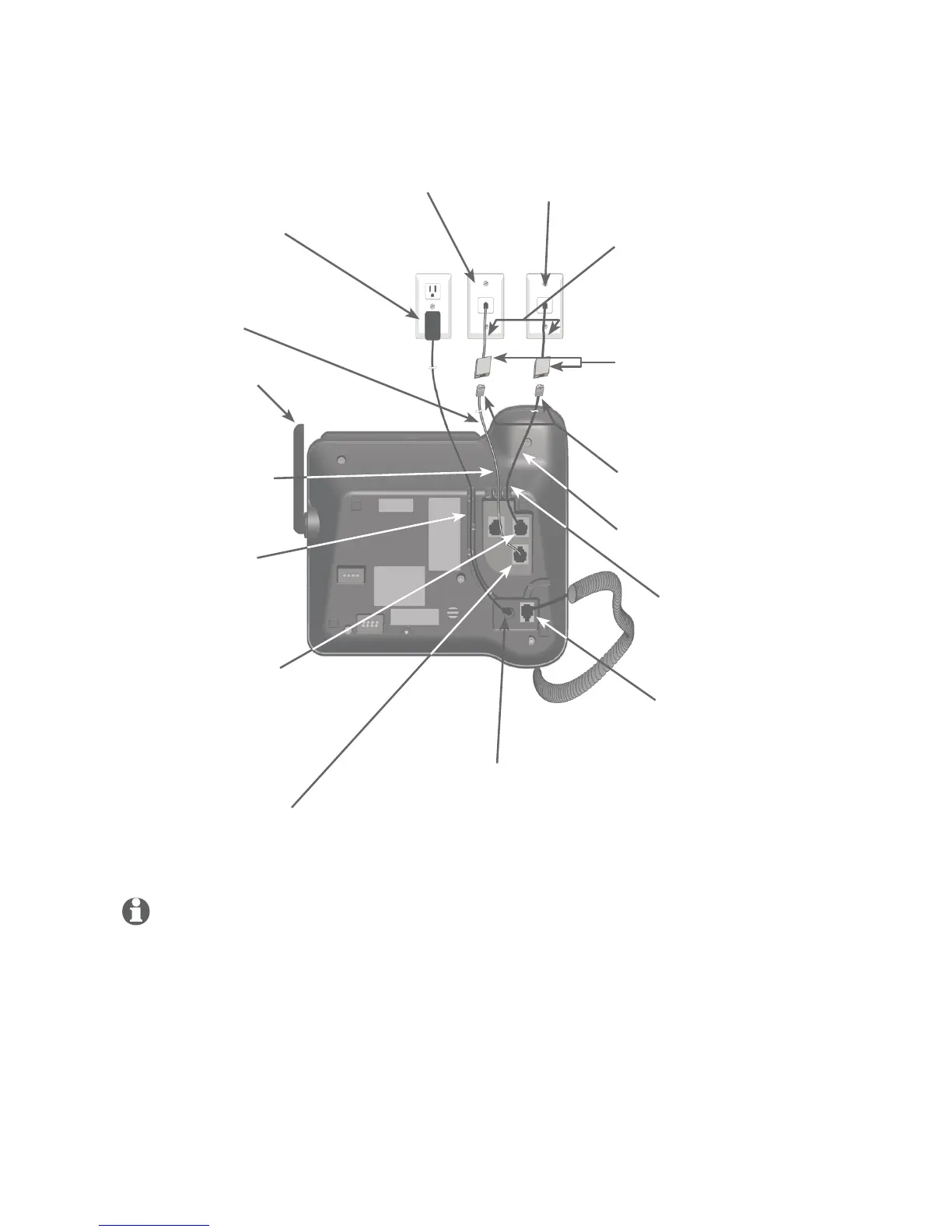

Telephone base installation
Option 2: For using two separate wall jacks
NOTES:
This telephone provides minimal functionality during a power outage. When AC power
is not available, many telephone features do not function. The telephone uses power
from the telephone line to enable you to make and answer calls using only the corded
handset and dialing keys. However, only line 1 is available in the event of a
power failure.
Use only the power adapters provided with this product. To obtain a replacement, visit
our website at www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
The power adapters are intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a
ceiling, under-the-table or cabinet outlet.
•
•
•
DSL filters (not included)
are required if you have DSL
high-speed Internet service.
Black telephone line cord
Route the power
adapter cord
through this slot.
Plug the small end of the AC power
adapter into the power jack at the
bottom of the telephone base and
route the cord through the slots.
Plug the large end
of the AC power
adapter into a power
outlet not controlled
by a wall switch.
Plug one end of the
black telephone line
cord into the
LINE 1/L1+L2 telephone
jack at the bottom of the
telephone base.
Raise the antenna.
Plug the other end of the
telephone line cord into the
DSL filter (if required).
Plug the other end
of the coiled handset
cord into the jack at
the bottom of the
telephone base.
Line 2 telephone
wall jack
Line 1 telephone
wall jack
Clear telephone
line cord
Use a telephone line cord
(not included) to connect
the DSL filter and line 1/
line 2 telephone wall jack.
Plug one end of the
clear telephone line
cord into the
LINE 2 telephone jack
at the bottom of the
telephone base.
Route the clear
telephone line cord
through this slot.
Route the black
telephone line cord
through this slot.
