Telephone base installation

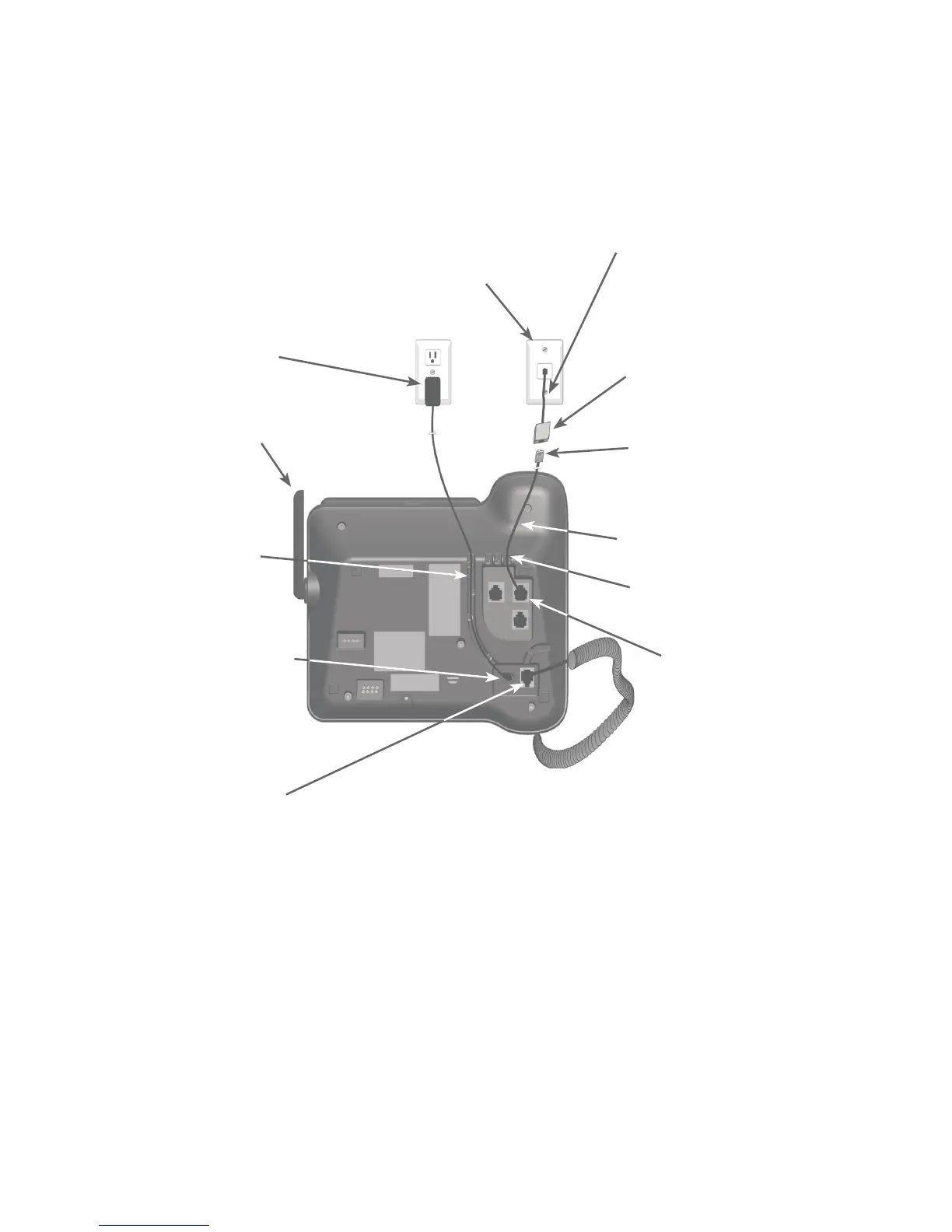

Install the telephone base, as shown below.
Option 1: For using a 2-line wall jack
DSL filter (not included)
is required if you have
DSL high-speed Internet
service.
Black telephone line cord
Plug the small end of
the AC power adapter
into the power jack
at the bottom of the
telephone base.
Plug the large end
of the AC power
adapter into a power
outlet not controlled
by a wall switch.
Plug one end of the
black telephone line
cord into the
LINE 1/L1+L2
telephone jack at
the bottom of the
telephone base.
Raise the antenna.
Plug the other end of the
black telephone line cord
into the DSL filter
(if required).
Plug the other end
of the coiled handset
cord into the jack at
the bottom of the
telephone base.
2-line telephone
wall jack
Use a 4-conductor
telephone line cord (not
included) to connect the
DSL filter and the 2-line
telephone wall jack.
Route the telephone line
cord through this slot.
Route the power
adapter cord
through this groove.
