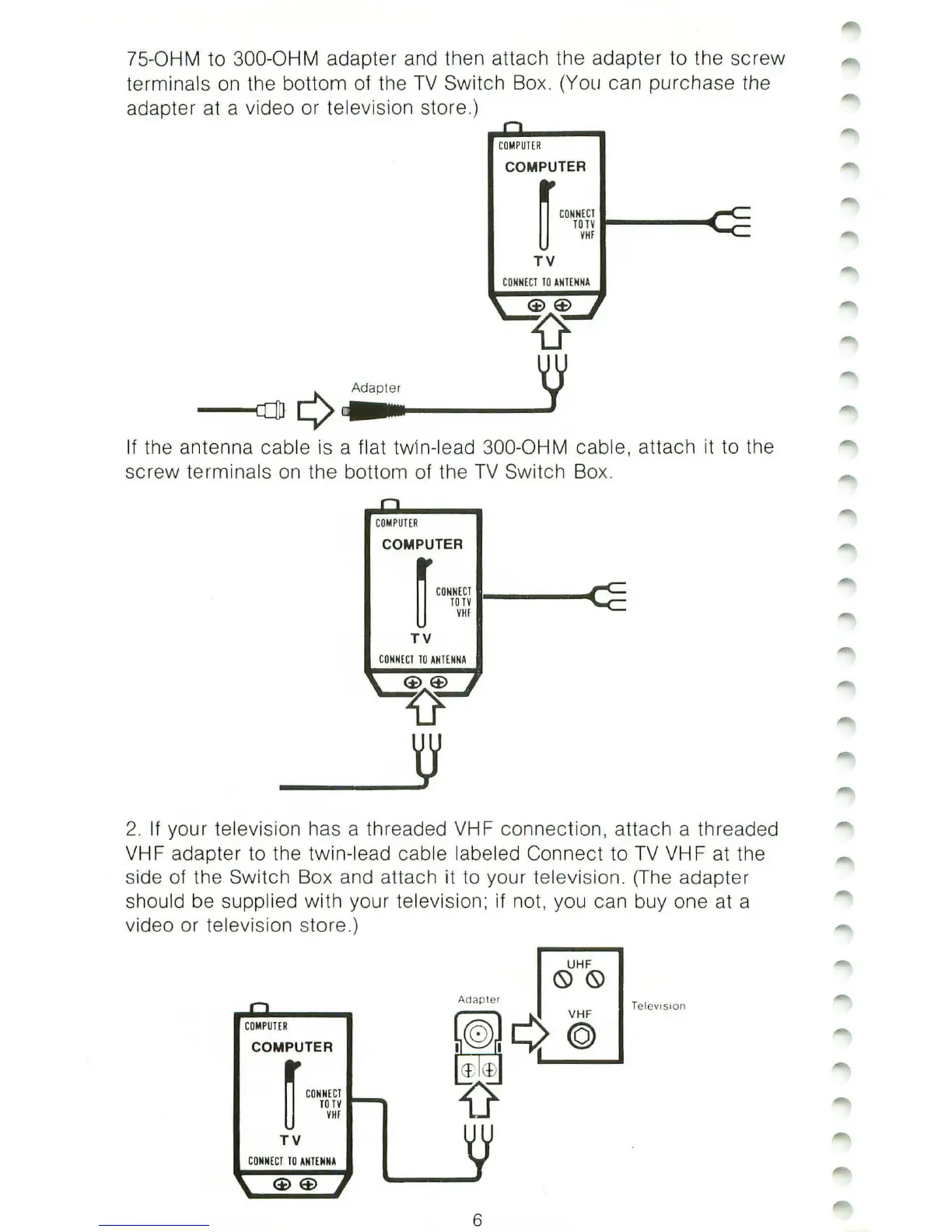

75-0HM to 300-0HM adapter and then attach the adapter to the screw
terminals
on the bottom of the TV Switch Box. (You can purchase the
adapter at a video or television store.)
COMPUTER
COMPUTER
~ CONro[f: I------.L=
~ VHF
TV
CONNECT TO AHT[NNA
If the antenna cable is a flat twin-lead 300-0HM cable, attach it to the
screw terminals on the bottom of the
TV Switch Box.
COMPUTER
COMPUTER
~ CONTNO[f) I----~~
~ VHF
TV
CONNECT TO AHT[NNA
2. If your television has a threaded VHF connection, attach a threaded
VH F adapter to the twin-lead cable labeled Connect to TV VH F at the
side of the Switch Box and attach it to your television.
(The adapter
should be supplied with your television; if not, you can buy one at a
video or television store.)
COMPUTER
COMPUTER
Adapter
6
UHF
<S><S>
TeleVISion

Atari 130XE Specifications

General

Type	Home computer
Release year	1985
CPU	MOS Technology 6502C
CPU Speed	1.79 MHz
RAM	128 KB
ROM	24 KB
Graphics	ANTIC and GTIA chips
Manufacturer	Atari
Display resolution	320x192
Sound	POKEY chip, 4 channels
Storage	External floppy disk drive, cassette tape
Ports	2 joystick ports
Operating System	Atari BASIC
