Atari 2600 Owner's Manual

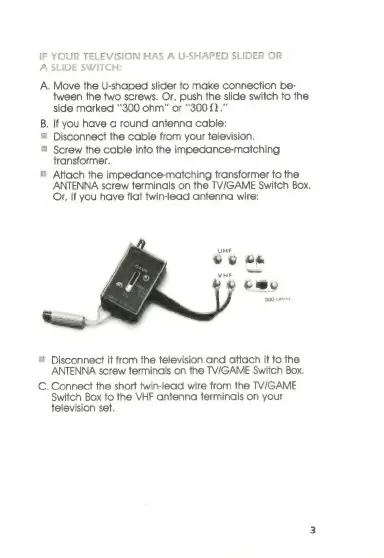

SION HAS A U-SHAPED SLIDER
-H.
IF YOUR TEL
A SLIDE S$
A. Move the U-shaped slider to make connection be-
tween the two screws. Or, push the slide switch to the
side marked "300 ohm” or “3002.”
B. If you have a round antenna cable:
= Disconnect the cable from your television.
®™ Screw the cable into the impedance-matching
transformer.
® Attach the impedance-matching transformer to the
ANTENNA screw terminals on the TV/GAME Switch Box.
Or, if you have flat twin-lead antenna wire:
2% mL
300 oh
Cea)
® Disconnect it from the television and attach it to the
ANTENNA screw terminals on the TV/GAME Switch Box.
C. Connect the short twin-lead wire from the TVIGAME
Switch Box to the VHF antenna terminals on your
television set.
