GAME PADDLE
Each
game paddle consists
of 1 Megaohm
potentiometer
that, when
varied,
causes
different values
to be seen
and acted upon by the POKEY. Also
contained
in the
paddle
is a simple spring
loaded
push-to-make
pushbutton
switch
(See
Figure
8-3).
There
are
two
game paddles
connected to
each
I/O
plug.

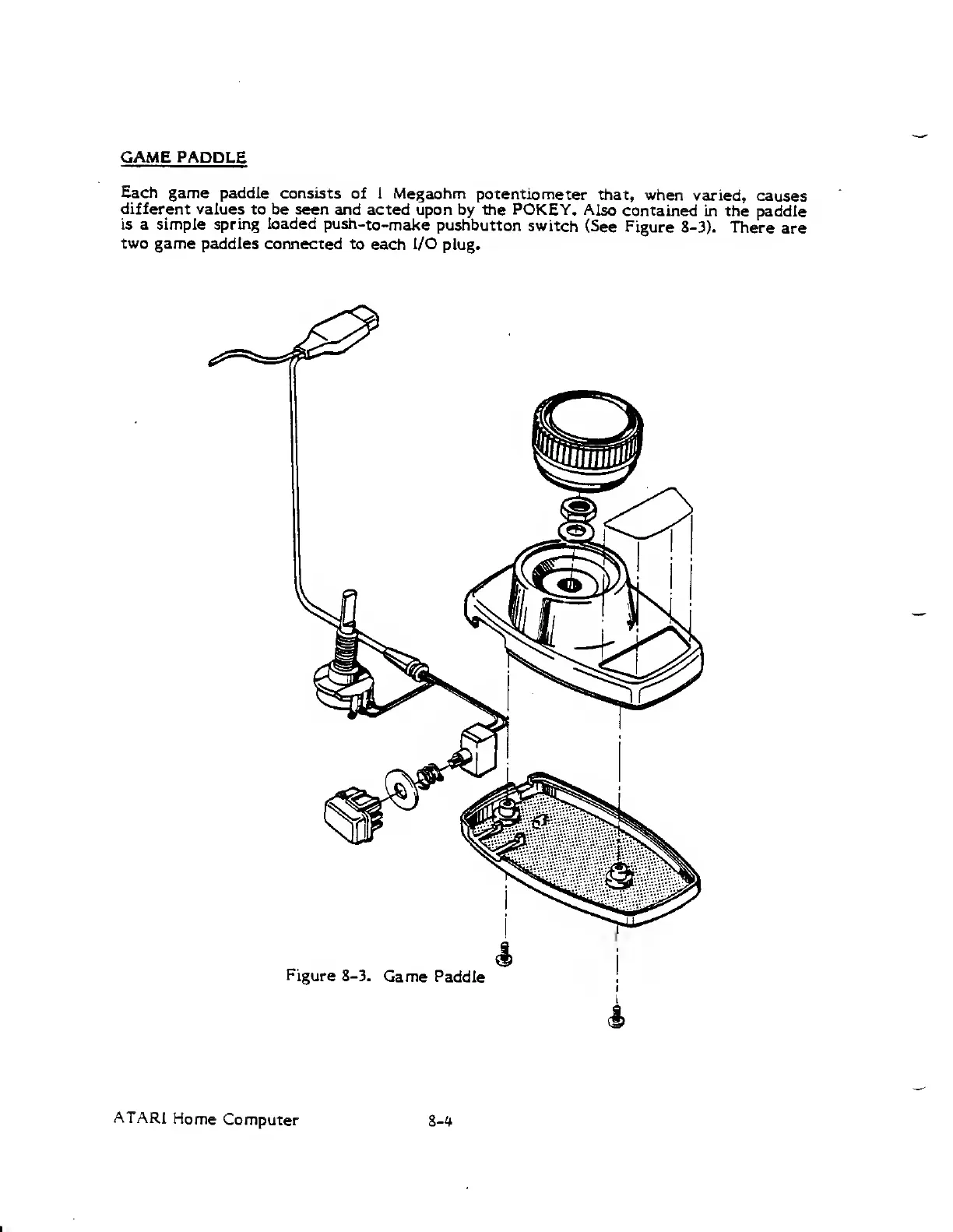

Figure 8-3.
Game
Paddle
ATARI
Home
Computer
8-^
