Atari 400

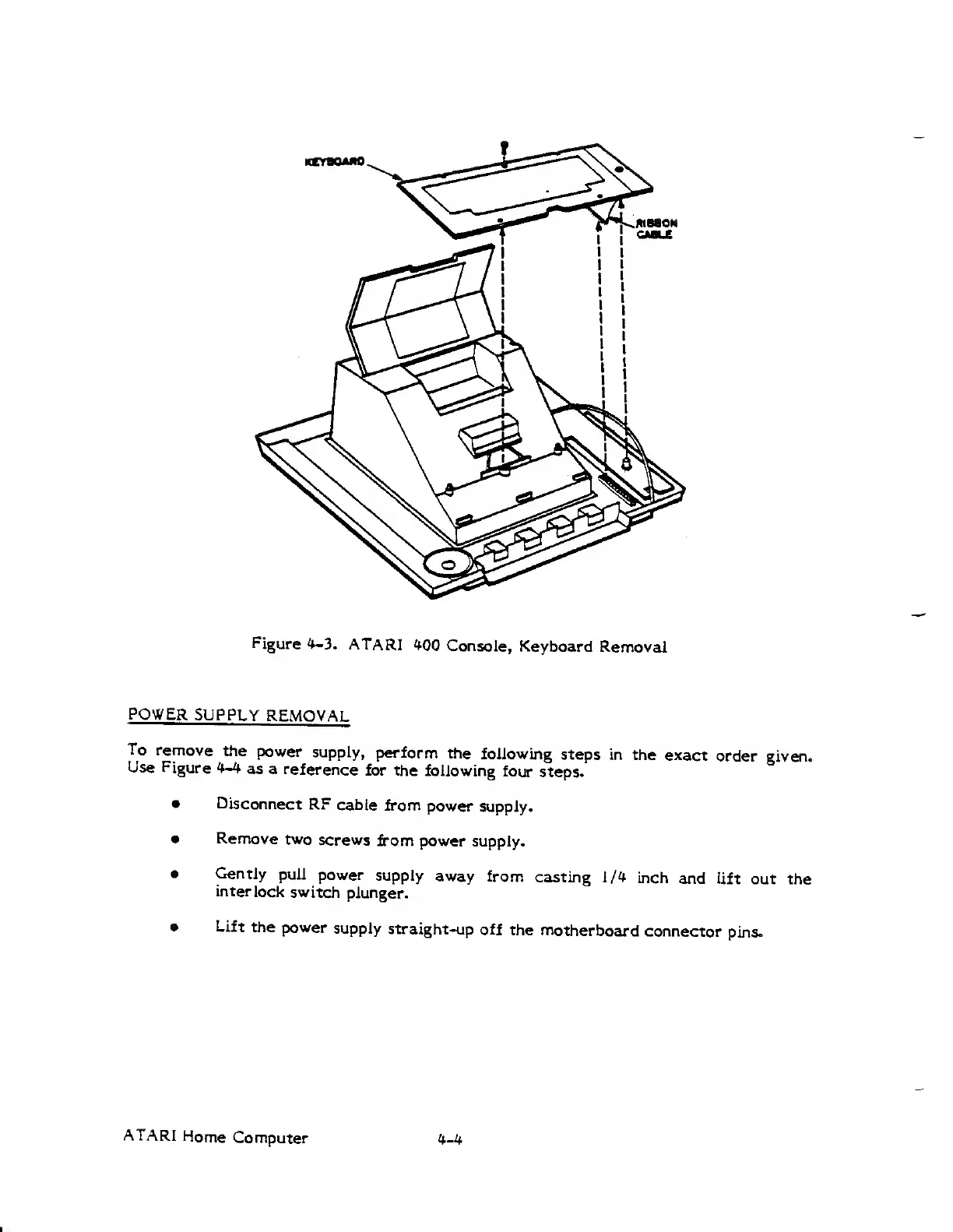

Figure
*-3,
ATARI
*00
Console, Keyboard
Removal
POWER
SUPPLY
REMOVAL
To
remove
the
power
supply,
perform
the
following
steps in
the
exact
order given.
Use
Figure *-4
as a
reference
for the
following
four
steps.
• Disconnect
RF
cable
from
power
supply.
•
Remove
two
screws
from power
supply.
•
Gently
pull
power
supply
away from
casting l/£f
inch
and lift
out the
interlock
switch
plunger.
•
Lift
the power
supply
straight-up
off
the
motherboard
connector
pins.
ATARI
Home
Computer if_4
