Alari 810 Di sk Driv e 2 09

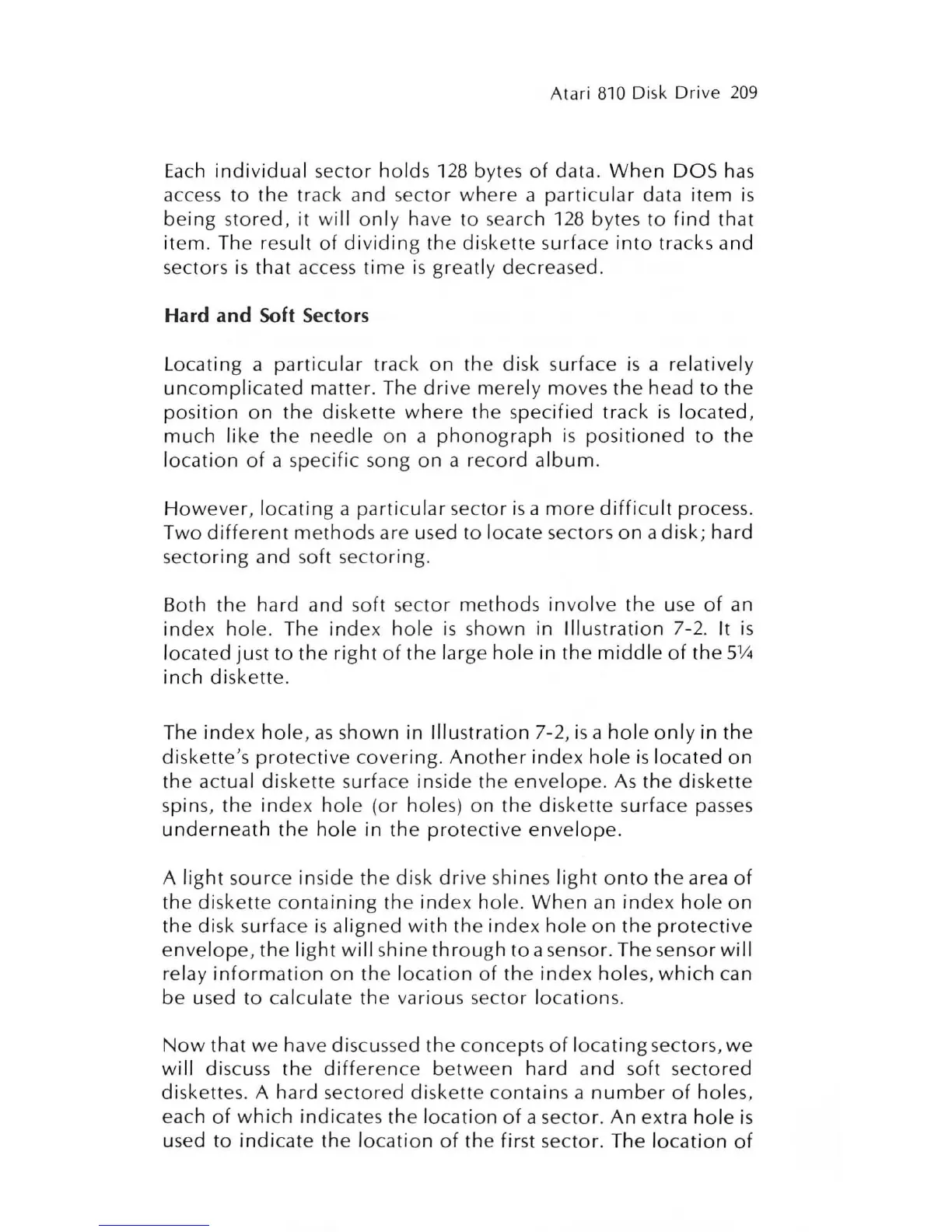

Ea ch individu al sec tor hold s 128 byt es of data. Wh en DOS has
access
to the tr ack and sec tor where a particular data item is
being stored, it wi ll on ly have to sea rch 1 28 bytes to find that
item.
Th e result of dividing th e diskette surface into trac ks and
sectors is that access tim e is greatly decreased.
Hard and Soft Sectors
Locating a pa rticular tr ack on the disk surface is a relatively
uncompli ca ted matte r. Th e drive merely moves the h ea d to th e
position on the diskette where the specified track is l ocated,
much lik e the needle on a phonograph is positi oned to the
lo ca tion of a spec ific so ng on a r eco rd album.
However , lo cat in g a particular sector is a m ore diffi cu lt process.
Two di ffere nt me thods are u se d to locate secto rs on a disk; hard
sectoring and soft sectoring.
Both the hard and soft sector metho ds inv olve the use of an
ind ex hole. Th e in dex hole is sh ow n in Illu s tration 7-2. It is
l ocated just to the right of the large hole in the middle of the 5 114
inch diskette.
The
index hole , as shown in Illustration 7-2, is a hole on ly in the
di s kett e's prot ect ive cove ring. Another ind ex hole is l ocated on
th e actual di skette surface inside the envel ope. As the diskette
spins, the ind ex hol e (or hol es) on the di skette surface passes
und e rneath the hole in the prot ective enve l ope .
A light source inside the disk dri ve s hin es lig ht onto the area of
the diskette contai nin g th e ind ex hol e. When an ind ex hole on
the di sk s urf ace is aligned with the inde x hol e on the protective
e nvelop e, th e lig ht will s hin e throu gh to a sensor. The sensor wi ll
relay
informati on on the l ocation of the ind ex hol es, which can
be us ed to ca lculate th e various sector lo ca tions .
Now that we have discussed the co ncepts of loca ting sectors, we
wil l di sc uss the difference between hard and soft sectored
di ske tt es. A hard sectored d iskette co ntain s a number of holes ,
each of which indicat es the lo ca tion of a sector. An extra hole is
used to indi cate the lo cation of the first sector . The location of
