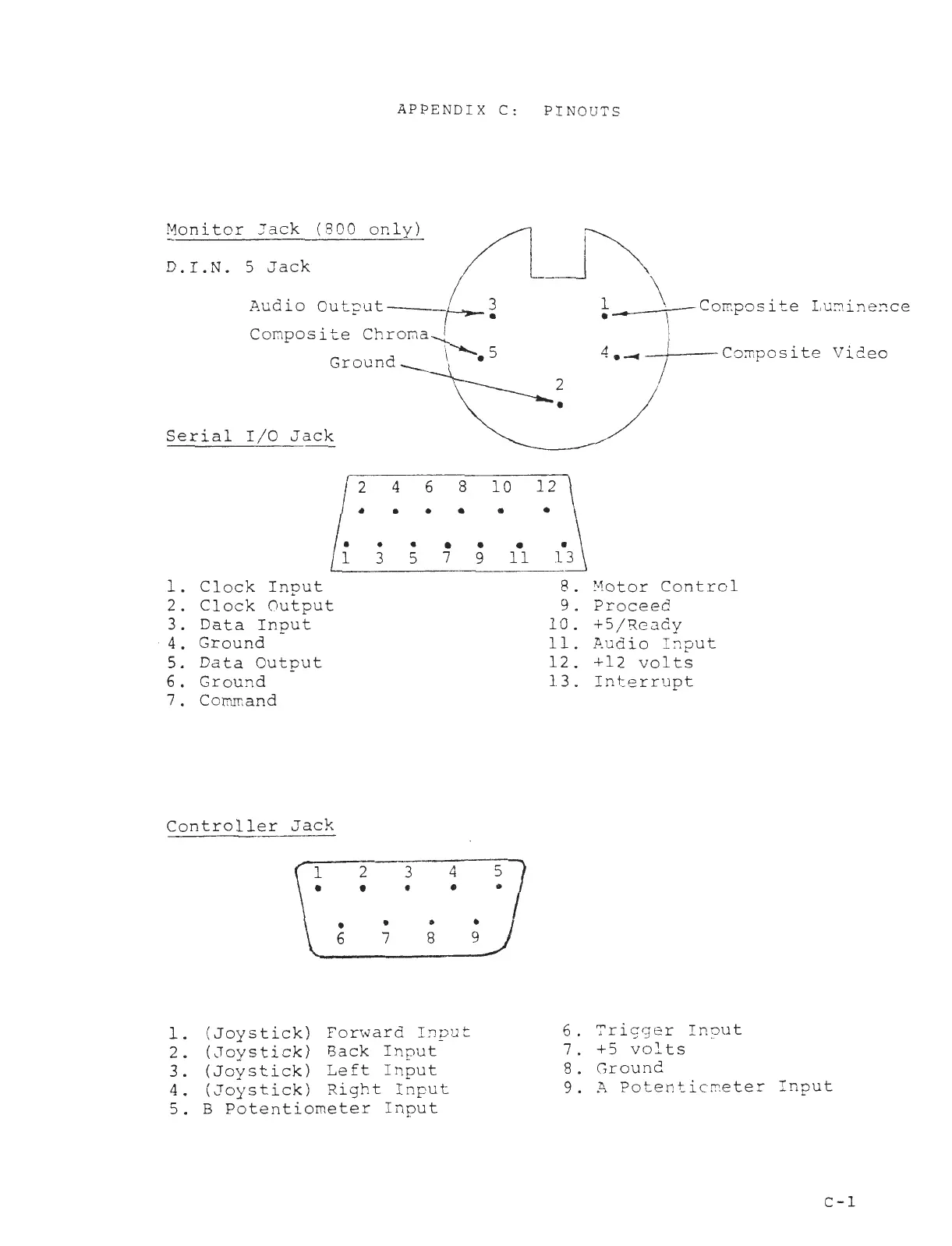

APPENDIX C: PINOUTS
Monitor Jack (800 only)
D. I. N. 5 Jack
Audio Output----t-...- 3
•
1 -Composite Lur.1inence
·- -~-.,---
Composite Chroma
Ground
4.--~--Co:nposite Viceo
2
•
Serial I/0 Jack
2 4
6
8
10
12
•
•
•
•
•
•
•
•
•
•
•
3 5
7
9
11
1.
Clock Input
8 . Motor Control
2 . Clock Output 9.
Proceed
3. Data
Input
10. +5/Ready
. 4 •
Ground
11.
Audio Input
5.
Data Output 12.
+12
volts
6 • Ground
13. Interrupt
7 •
Command
Controller Jack
2
3 4
•
•
• •
•
•
• •
6
7
8 9
1. (Joystick) Forward Input
2. (Joystick) Back Input
3. (Joystick) Left Input
4. (Joystick) Right Input
6. Trigger Input
7. +5 volts
8. Grounc
9. A Potentiometer Input
5. B Potentiometer Input
C-1
