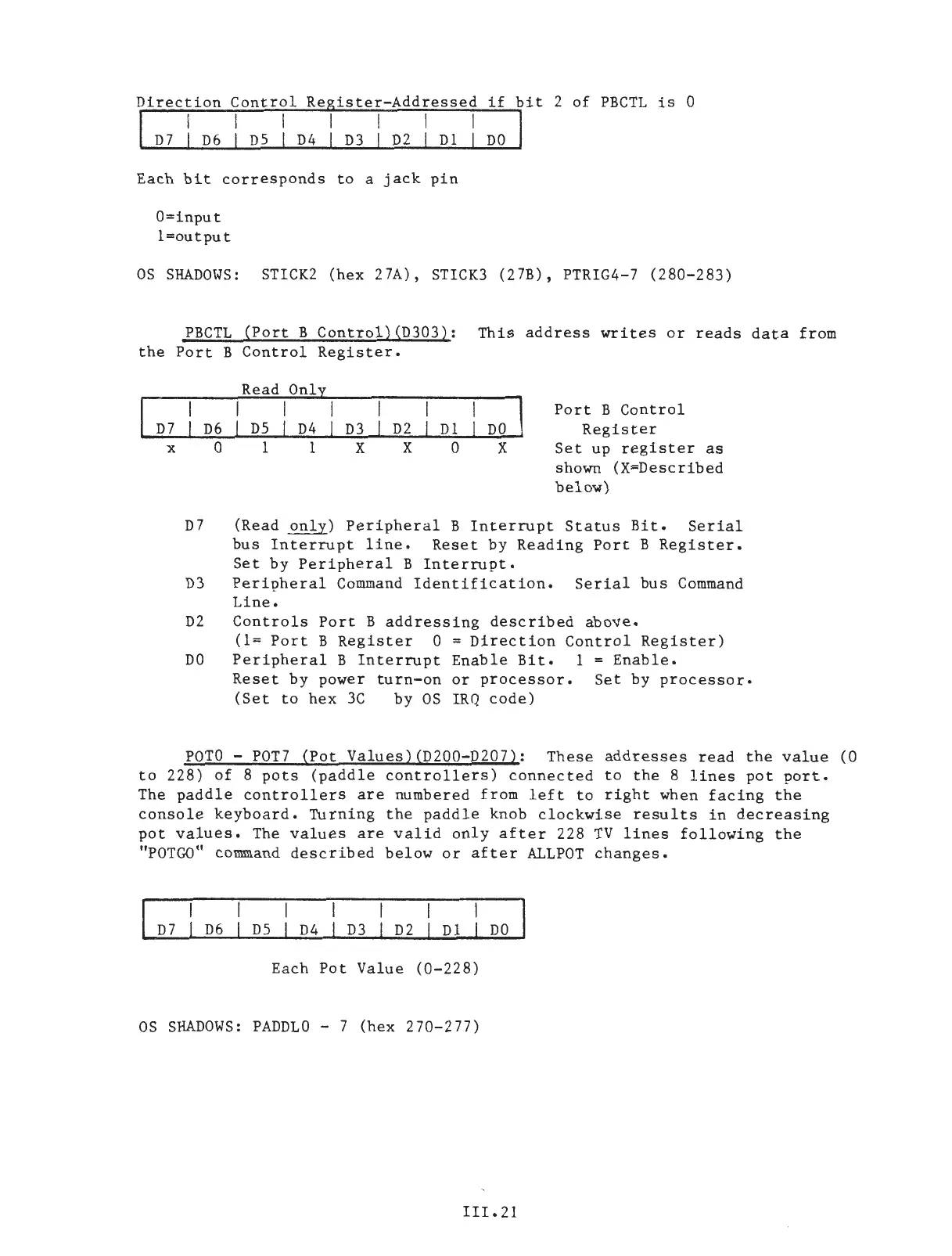

Control
Re
ister-Addressed
if
bit
2
of
PBCTL
is
0
I I I I I I
Each
bit
corresponds
to
a
jack
pin
O=input
1=output
OS
SHADOWS:
STICK2
(hex
27A),
STICK3
(27B),
PTRIG4-7
(280-283)
PBCTL
(Port
B
Control)(D303):
This
address
writes
or
reads
data
from
the
Port
B
Control
Register.
D7
X
Read
Onl:z::
I I I
Port
B
Control
D6
I
D5
I
D4
I
D3
D2
D1
DO
Register
0 1 1 X X
0
X
Set
up
register
as
shown
(X=Described
below)
D7
(Read
only)
Peripheral
B
Interrupt
Status
Bit.
Serial
bus
Interrupt
line.
Reset
by
Reading
Port
B
Register.
Set
by
Peripheral
B
Interrupt.
D3
Peripheral
Command
Identification.
Serial
bus
Command
Line.
D2
Controls
Port
B
addressing
described
above.
(1=
Port
B
Register
0 =
Direction
Control
Register)
DO
Peripheral
B
Interrupt
Enable
Bit.
1 =
Enable.
Reset
by
power
turn-on
or
processor.
Set
by
processor.
(Set
to
hex
3C
by
OS
IRQ
code)
POTO-
POT7
(Pot
Values)(D200-D207):
These
addresses
read
the
value
(0
to
228)
of
8
pots
(paddle
controllers)
connected
to
the
8
lines
pot
port.
The
paddle
controllers
are
numbered
from
left
to
right
when
facing
the
console
keyboard.
Turning
the
paddle
knob
clockwise
results
in
decreasing
pot
values.
The
values
are
valid
only
after
228
TV
lines
following
the
"POTGO"
command
described
below
or
after
ALLPOT
changes.
D7 D6
D5
D4 D3
D2
D1
DO
Each
Pot
Value
(0-228)
OS
SHADOWS:
PADDLO
- 7
(hex
270-277)
III.21
