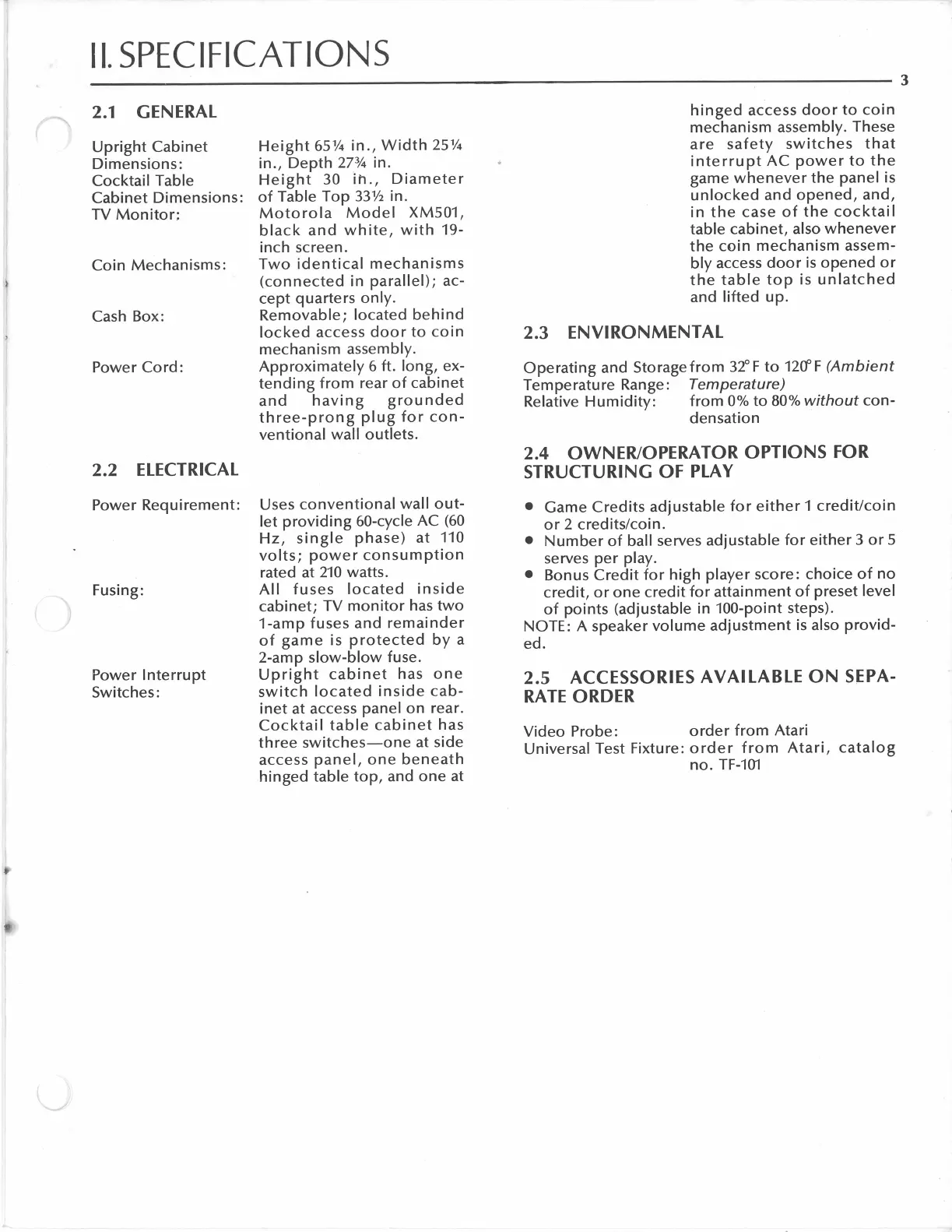

Atari Breakout - Specifications; Electrical; Environmental

II.
SPECIFICATIONS
2.1 GENERAL
Upright
Cabinet
Dimensions:
Cocktail
Table
Cabinet
Dimensions:
TV
Monitor;
Coin
Mechanisms:
Cash Box:
Power
Cord:
2.2
ELECTRICAL
Height
65114
in.,
Width
25114
in.,
Depth
273,4
in.
Height
30
-
ih.,
Diameter
of
Table
Top
331/2
in.
Motorola
Model
XM501,
black
and
white,
with
19-
inch
screen.
Two
identical
mechanisms
(connected
in
parallel);
ac-
cept
quarters
only.
Removable;
located
behind
locked
access
door
to
coin
mechanism
assembly.
Approximately
6 ft.
long,
ex-
tending
from
rear
of
cabinet
and
having
grounded
three-prong
plug
for
con-
ventional
wall
outlets.
Power
Requirement:
Uses
conventional
wall
out-
let
providing
60-cycle AC
(60
Hz,
single
phase)
at
110
volts;
power
consumption
rated at
210
watts.
Fusing:
All
fuses
located
inside
cabinet;
TV
monitor
has
two
1-amp
fuses
and
remainder
of
game
is
protected
by
a
2-amp
slow-blow
fuse.
Power
Interrupt
Upright
cabinet
has
one
Switches:
switch
located
inside
cab-
inet
at access
panel
on
rear.
Cocktail
table
cabinet
has
three
switches-one
at side
access
panel,
one
beneath
hinged
table
top,
and
one
at
hinged
access
door
to
coin
mechanism
assembly.
These
are
safety
switches
that
interrupt
AC
power
to
the
game
whenever
the
panel
is
unlocked
and
opened,
and,
in
the
case
of
the
cocktail
table
cabinet,
also
whenever
the
coin
mechanism
assem-
bly
access
door
is
opened
or
the
table
top
is
unlatched
and
lifted
up.
2.3
ENVIRONMENTAL
Operating
and Storage
from
32°
F
to
12(f
F
(Ambient
Temperature
Range:
Temperature)
Relative
Humidity:
from
0%
to
80%
without
con-
densation
2.4
OWNER/OPERATOR
OPTIONS
FOR
STRUCTURING
OF
PLAY
•
Game
Credits
adjustable
for
either
1
credit/coin
or
2
credits/coin.
•
Number
of
ball
serves
adjustable
for
either
3
or
5
serves
per
play.
•
Bonus
Credit
for
high
player
score:
choice
of
no
credit,
or
one
credit
for
attainment
of
preset
level
of
points
(adjustable in
100-point
steps).
NOTE: A speaker
volume
adjustment
is
also
provid-
ed.
2.5
ACCESSORIES
AVAILABLE
ON
SEPA-
RATE
ORDER
Video
Probe:
order
from
Atari
Universal
Test Fixture:
order
from
Atari,
catalog
no.
TF-101
