Atari CX2600 User Manual

2

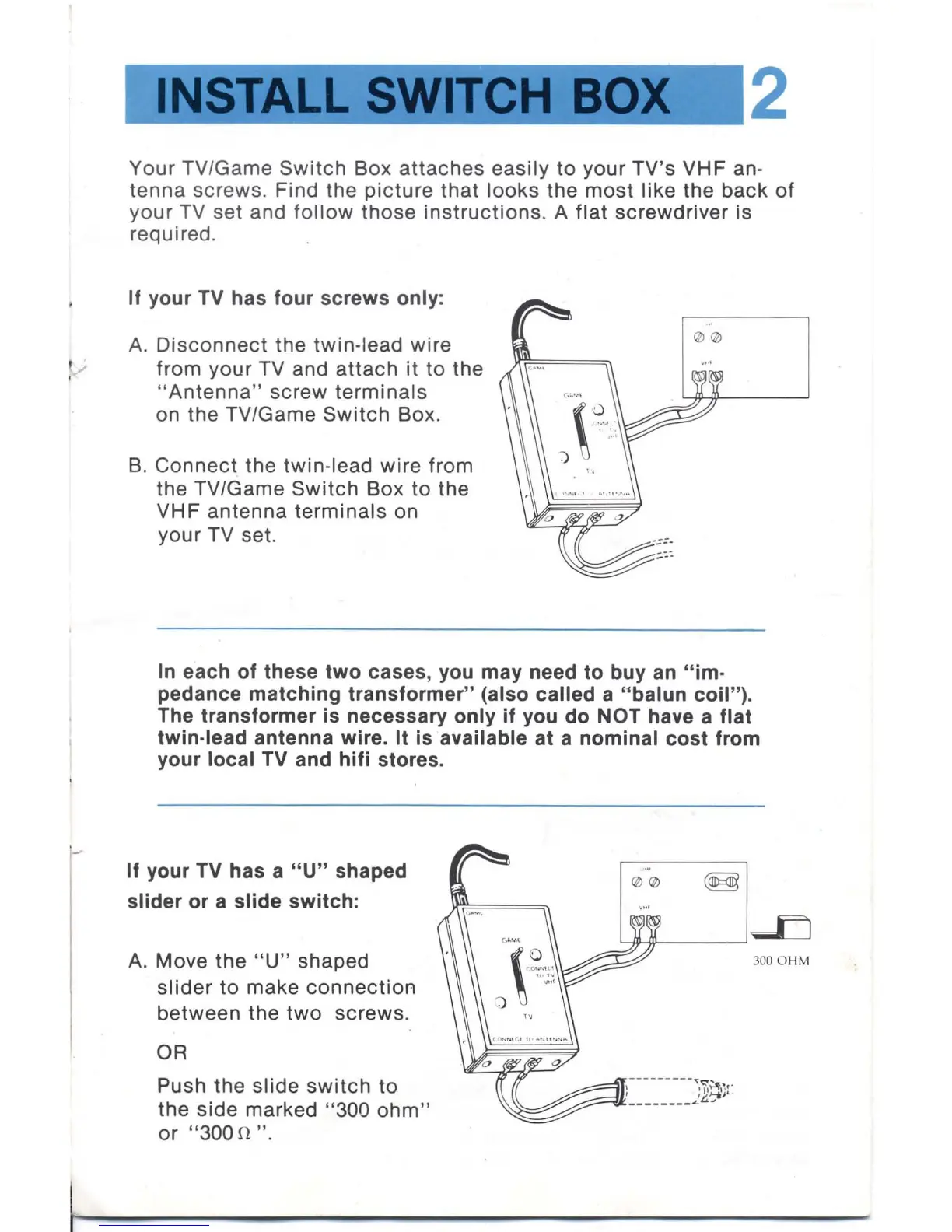

Your TV/Game Switch Box attaches easily to your TV's VHF an-
tenna screws . Find the picture that looks the most like the back of
your TV set and follow those instructions. A flat screwdriver is
required.
If your TV has four screws only:
A. Disconnect the twin-lead wire
from your TV and attach it to the
"Antenna" screw terminals
on the TV/Game Switch Box.
B.
Connect the twin-lead wire from
the TV/Game Switch Box to the
VHF antenna terminals on
your TV set.
In each of these two cases, you may need to buy an "im·
pedance matching transformer" (also called a "balun coil").
The transformer is necessary only if you do NOT have a flat
twin· lead antenna wire. It is available at a nominal cost from
your local TV and hifi stores.
If your TV has a "u" shaped
slider or a slide switch:
A. Move the "u" shaped
slider to make connection
between the two screws.
OR
Push the slide switch to
the side marked "300 ohm"
or "300 n ".
