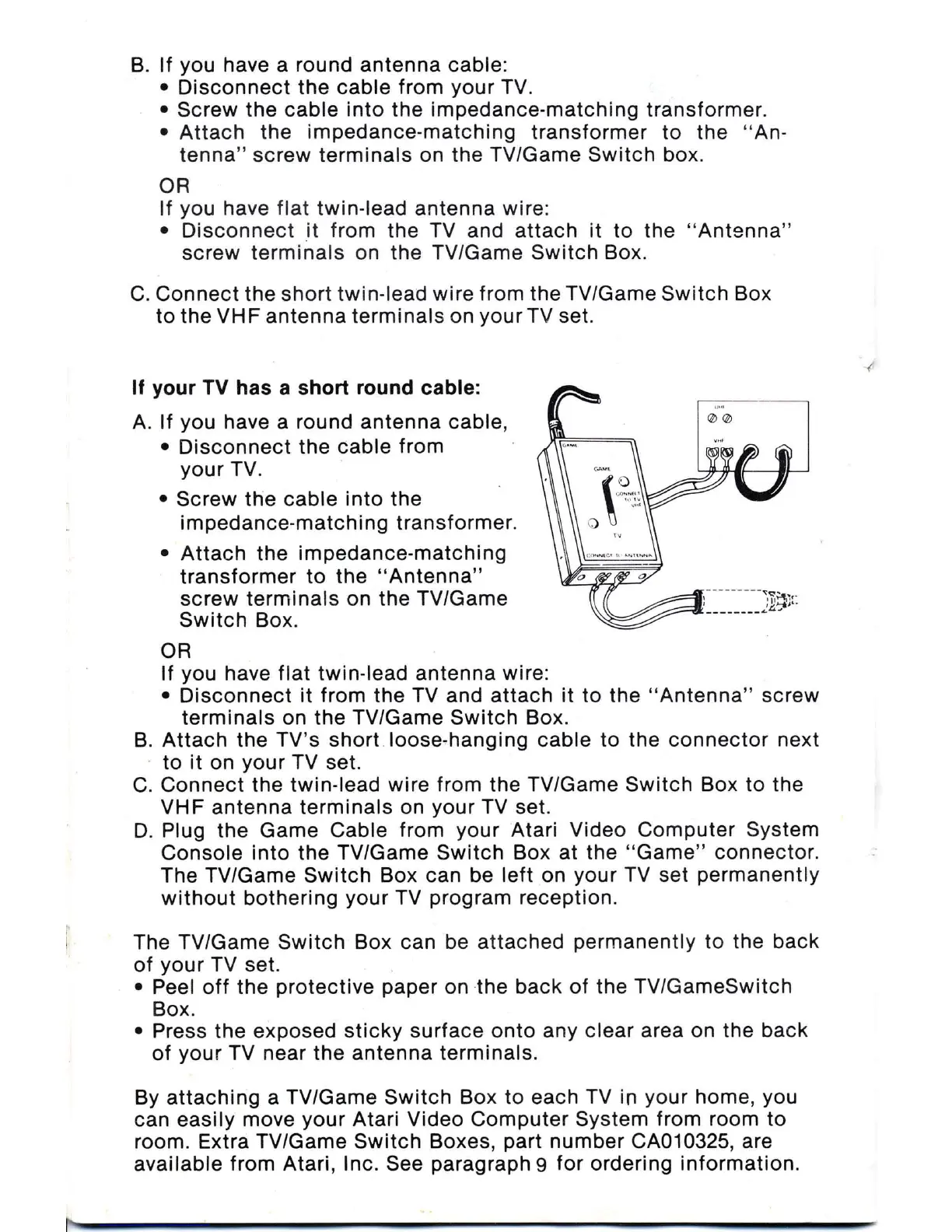

B. If you have a round antenna cable:
•
Disconnect the cable from your TV.
• Screw the cable into the impedance-matching transformer.
• Attach the impedance-matching transformer to the "An-
tenna" screw terminals on the TV/Game Switch box.
OR
If you have flat twin-lead antenna wire:
• Disconnect it from the TV and attach it to the "Antsnna"
screw terminals on the TV/Game Switch Box.
C. Connect the short twin-lead wire from the TV/Game Switch Box
to the VHF antenna terminals on your TV set.
If your TV has a short round cable:
A. If you have a round antenna cable,
•
Disconnect the cable from
your TV.
• Screw the cable into the
impedance-matching transformer.
• Attach the impedance-matching
transformer to the "Antenna"
screw terminals on the TV/Game
Switch Box.
OR
If you have flat twin-lead antenna wire:
• Disconnect it from the TV and attach it to the "Antenna" screw
terminals on the TV/Game Switch Box.
B. Attach the TV's short.loose.hanging cable to the connector next
to it on your TV set.
C. Connect the twin-lead wire from the TV/Game Switch Box to the
VHF antenna terminals on your TV set.
D. Plug the Game Cable from your Atari Video Computer System
Console into the TV/Game Switch Box at the "Game" connector.
The TV/Game Switch Box can be left on your TV set permanently
without bothering your TV program reception.
The TV/Game
Switch Box can be attached permanently to the back
of your TV set.
• Peel off the protective paper on the back of the TV/GameSwitch
Box.
• Press the exposed sticky surface onto any clear area on the back
of your TV near the antenna terminals.
By attaching a TV/Game Switch Box to each TV in your home, you
can
easily move your Atari Video Computer System from room to
room. Extra TV/Game Switch Boxes, part number CA010325, are
available from Atari, Inc. See paragraph 9 for ordering information.
(
