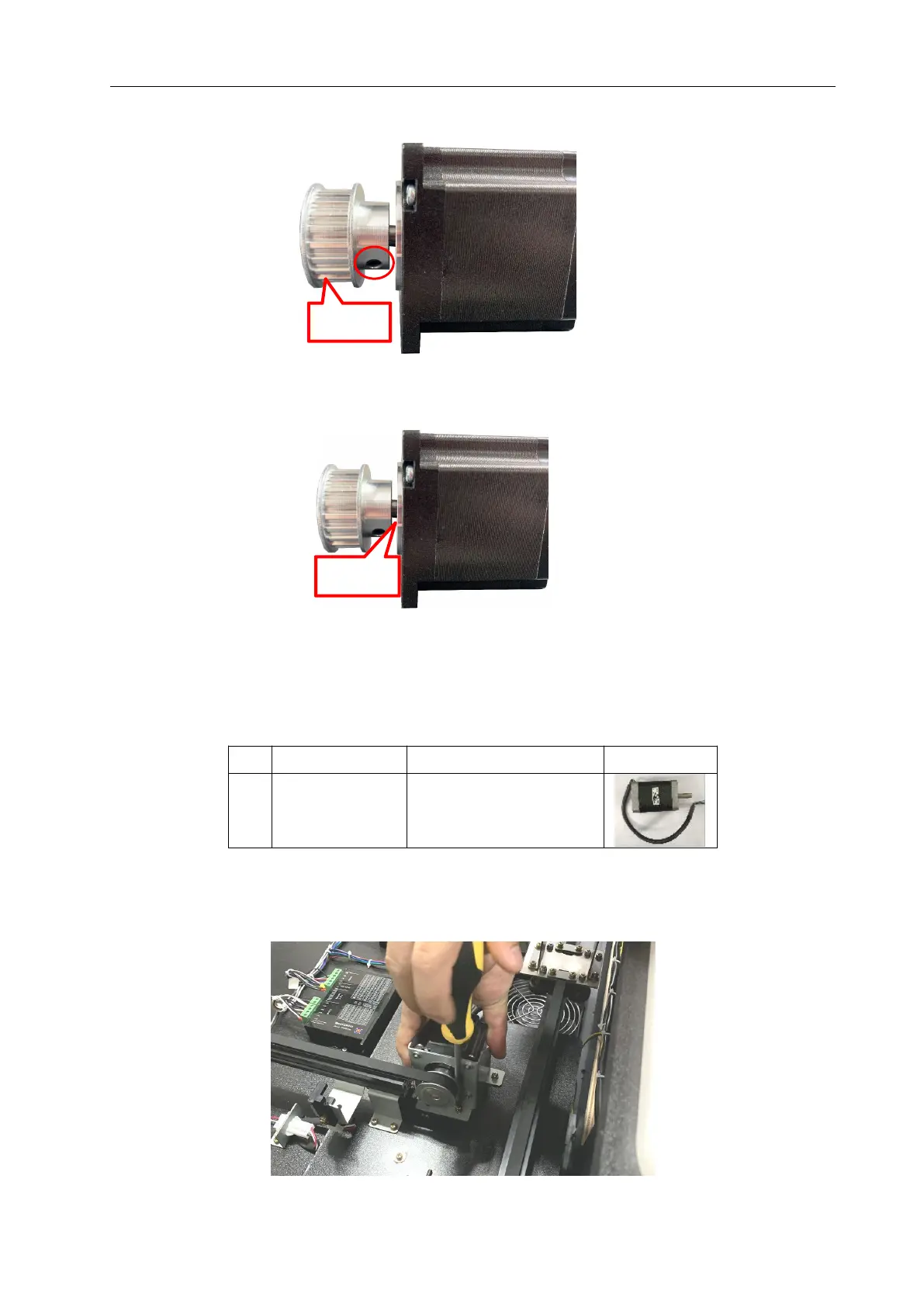

Step 2 Utilize Allen wrench to loosen 2 screws (turning counterclockwise) to remove the
gear from the motor.
Step 3 Replace with the new motor and install in reverse order.
Note: The distance from motor to gear should be 0.08in(2mm).
Step 4 Refer to 8.7 Belt Tension Adjustment Instruction for Y Axle in the Manual to test and
adjust the belt.
8.9.3 Paddle Motor Replacement
Kit List:
Step 1 Locate one Paddle motor. Utilize Phillips screwdriver to loosen 4 screws and unplug
the connector to remove the Motor assembly.
Note: It’s the same method on the 4 Paddle motors.
No.
Part No.
Name
1
P163-462-000
42MM Stepping motor
gear
0.08in
