ATBcontrol
©

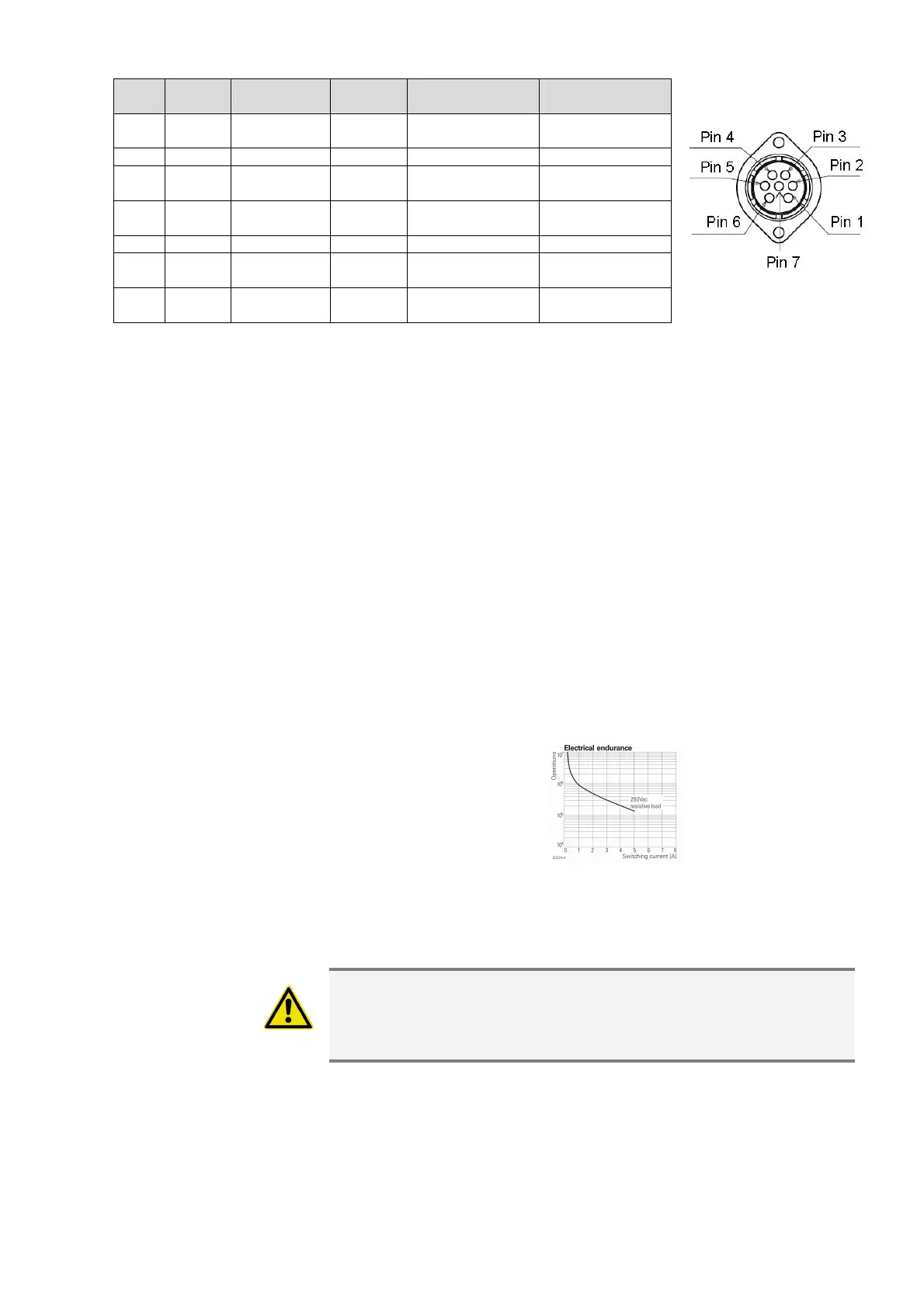

3 – Configuration of the Connection Socket (Plan view casing exterior)
Pin
plug
Colour Solder joint AC/ DC
Function
CLASSIC/PRIMO
Function
BASIC
1 Blue N 230V AC
Neutral lead
(Mains)
Neutral lead
(Mains)
2 Black T1.3 230V AC Phase aerator Phase aerator
3 Brown T1.1 230V AC
Phase sludge
pump
Neutral clarified
water pump
4 Violet T1.2 230V AC
Phase clarified
water pump
Phase clarified
water pump
5 Orange IN1 12V DC Float 12V feed Float 12V feed
6
White
(blue)
N 12V DC Float return Float return
7
Yellow/
green
PE PE
PE earth
conductor
PE earth
conductor
ATBcontrol
©
3 – Technical data
Casing
Material: ABS with CR sealing material
Type of protection: IP 54
Dimensions: 205 x 150 x 70 mm (W x H x D), incl. fixing attachments and screwed
connections
Power supply
Input voltage : 230VAC, 50/60 Hz ± 10%
Overvoltage protection: 300 V AC
Input fuse: PTC (thermal fuse activates at 130°C, not resettable)
Power consumption: type 2.0W
(with unilluminated display and potential-free contact switched OFF)
Inputs
1 Digital input: 230V AC, opto-decoupled
Outputs
Output voltage: 230 V AC, 50/60 Hz ± 10%
Nominal load current: 16.0 A (contact rating), ohmic load
Output fuse: T 6.3 A (max. !)
Potential-free contact
Contact voltage: 250 V AC / 30 V DC
Contact rating: 5A, ohmic load
Temperature range
Equipment function: 0°C to +50°C
Display indicator: 0°C to +50°C
Accumulators: 2xNiMH, 1.2V, Type AA, 2,100 mAH; Service life: 1000 charge/discharge cycles
with trickle charge: min. 6 years |
25°
with trickle charge: min. 3 years |
45°
ATTENTION!
It is recommended to have the accumulators exchanged every two years by an
authorised specialist firm.
The exchange of the accumulators with batteries is forbidden due to the danger
of explosion!
